Specifications
- AIMS SKU A0118300
- Brand Seco
- Model Number 02615933
- Barcode Number 15933026000506
- Designation VNMG160404-MF4 TS2000
- Grade TS2000

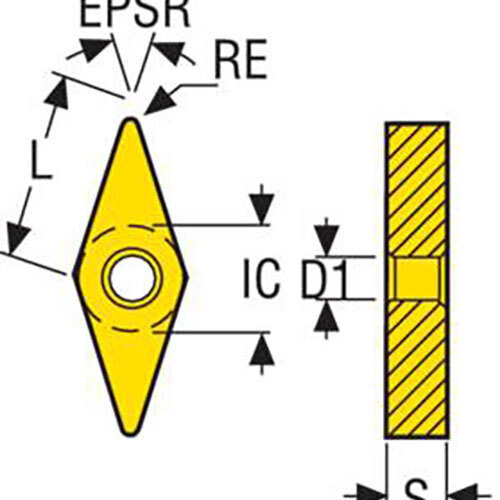

- Insert Thickness (S) mm 4.76
- Corner Radius (RE) mm 0.4
- Insert Shape Code (SC) V
- Inscribed Circle Diameter (IC) mm 9.53
- Clearance Angle Major (an) Deg 0.0 deg
- Fixing Hole Diameter (d1) Mm 3.8
- Insert Included Angle (epsr) Deg 35.0 deg
- Theoretical Cutting Edge Length (L) mm 16.6
- Chipbreaker Programme MF4
- Type Turning Insert
- Insert Grade Grade TS2000
- Insert Style VNMG
SKU: A0118300

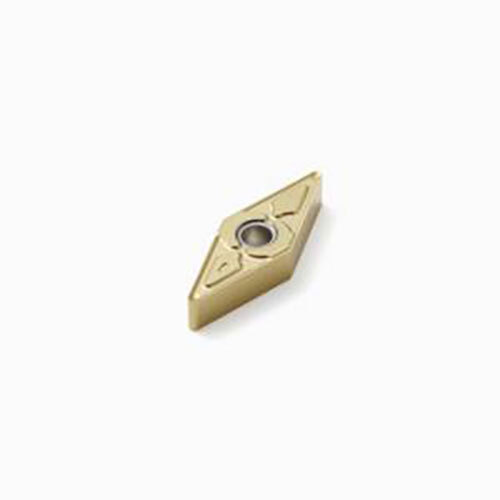

Seco Turning Insert V Shape Code 4.76 x 0.4 x 9.53mm G Insert Type - MF4 Grade TS2000 ± 0.13/± 0.05mm Tolerance VNMG160404-MF4,TS2000 - Pack of 5
Turning Insert VNMG Insert Style - MF4 Grade TS2000
$211.64
