Turning Insert WNMA Insert Style Grade TK0501 - SECO

Description

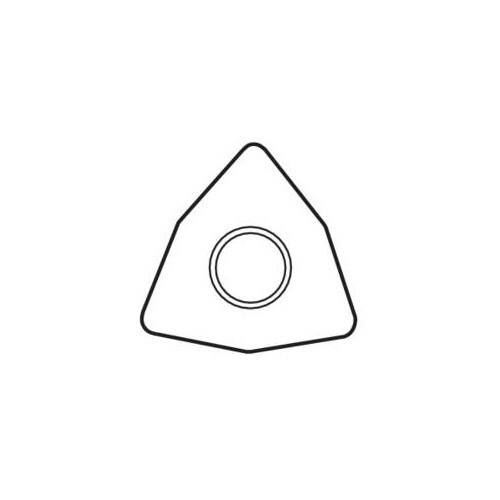

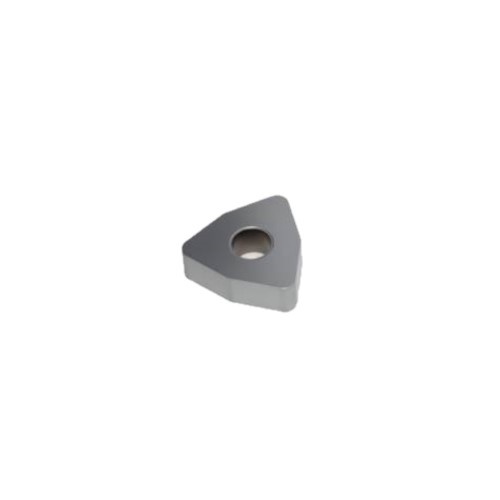

Turning Insert WNMA Insert Style Grade TK0501

W shape code.
A insert type, with a hole, no chipbreaker.
TK0501 insert grade.

TK0501 Insert Grade

Duratomic® grade.
An extremely wear-resistant optimized grade choice for machining of grey cast iron and easier ductile cast irons.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

AIMS SKU A0116954

Brand Seco

Model Number 03064401

Barcode Number 64401030001001

Designation WNMA060408 TK0501

Grade TK0501

Insert Thickness (S) mm 4.76

Corner Radius (RE) mm 0.8

Insert Shape Code (SC) W

Inscribed Circle Diameter (IC) mm 9.53

Clearance Angle Major (an) Deg 0.0 deg

Fixing Hole Diameter (d1) Mm 3.8

Insert Included Angle (epsr) Deg 80.0 deg

Theoretical Cutting Edge Length (L) mm 6.5

Type Turning Insert
Insert Grade Grade TK0501
Insert Style WNMA
