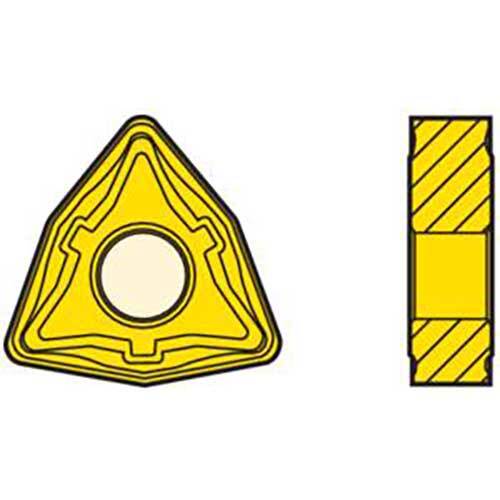

Turning Insert WNMG Insert Style - M5 Grade TM1501

  • W shape code.
  • G insert type, with hole and chip breaker on both faces.

TM1501 Insert Grade

  • Duratomic® grade.
  • The highly resistant and optimized grade for many continuous cuts in stainless steel turning applications.
  • Complements in mixes of steel and stainless steel turning.
  • Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

M5 Chipbreaker Programme

  • The choice for roughing by means of double-sided inserts.
  • Intended for demanding operations at high feed rates in steel.
  • Stainless steel and cast iron.
  • Combines high edge strength with comparatively low cutting forces.
  • Indicative machining range: f = 0,3-0,7 mm/rev,ap = 1,5-7,0 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0158495
  • Brand Seco
  • Model Number 03274182
  • Net Weight (kg) 0.009
  • Designation WNMG080412-M5 TM1501
  • Cutting Edge Count (CEDC) 6
  • Insert Included Angle (EPSR) 80.0 deg
  • Insert Hand (IH) Neutral

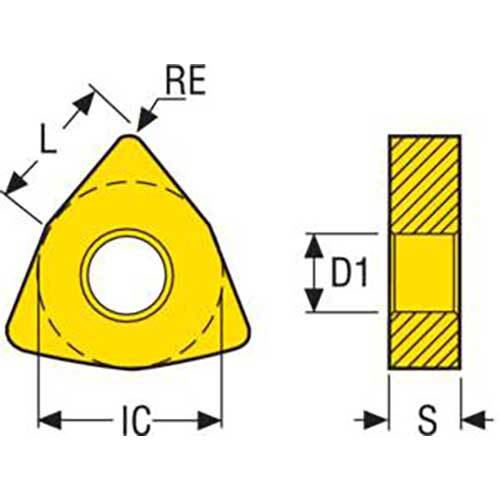

  • Cutting Edge Effective Length (LE) mm 8.2
  • Insert Thickness (S) mm 4.76
  • Corner Radius (RE) mm 1.2
  • Inscribed Circle Diameter (IC) mm 12.7
  • Clearance Angle Major (an) Deg 0.0 deg
  • Fixing Hole Diameter (d1) Mm 5.2
  • Theoretical Cutting Edge Length (L) mm 8.7
  • Chip Breaker Manufacturers Designation (CBMD) M5
  • Insert Seat Size Code (SSC) mm 8
  • Type Turning Insert
  • Grade TM1501
  • Grade Type Carbide CVD

Video

SKU: A0158495 On Sale

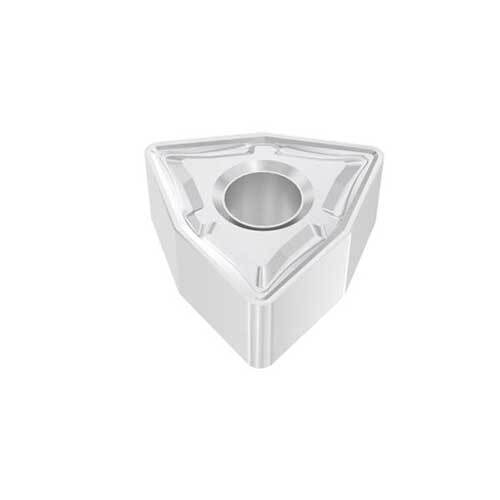

Seco Turning Insert W Shape Code 4.76 x 1.2 x 12.7mm G Insert Type - M5 Grade TM1501 WNMG080412-M5 Pack of 10

Turning Insert WNMG Insert Style - M5 Grade TM1501

$212.31
$249.78
