Turning Insert WNMG Insert Style - M5 Grade TP40 - SECO

Description

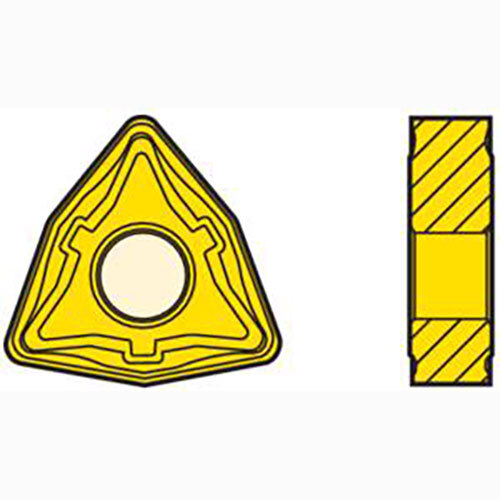

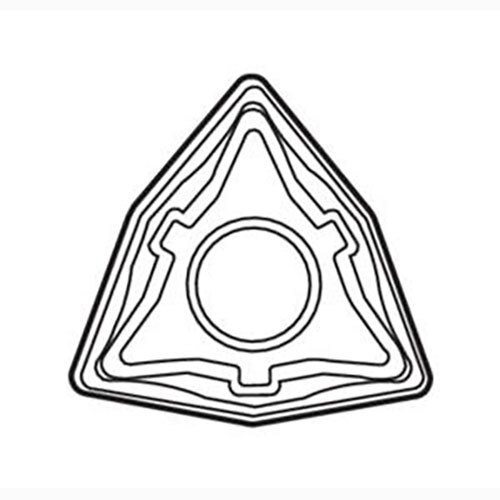

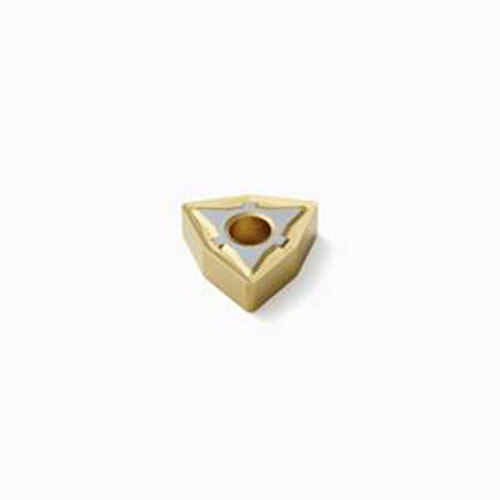

Turning Insert WNMG Insert Style - M5 Grade TP40

W shape code.
G insert type, with hole and chip breaker on both faces.
TP40 insert grade.

TP40 Insert Grade

Universal grade for a extremely secure performance in the most demanding application from steels, stainless steels to superalloys especially in castings and forgings.
TiC/Ti(C,N) + TiN.

M5 Chipbreaker Programme

The choice for roughing by means of double-sided inserts.
Intended for demanding operations at high feed rates in steel.
Stainless steel and cast iron.
Combines high edge strength with comparatively low cutting forces.
Indicative machining range: f = 0,3-0,7 mm/rev,ap = 1,5-7,0 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

AIMS SKU A0118249

Brand Seco

Model Number 00023688

Barcode Number 23688000001008

Designation WNMG080408-M5 TP40

Grade TP40

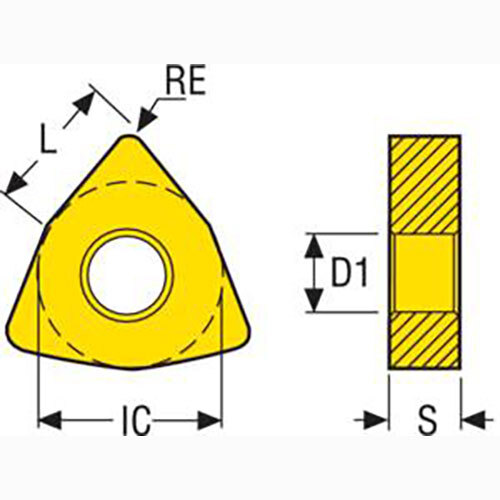

Insert Thickness (S) mm 4.76

Corner Radius (RE) mm 0.8

Insert Shape Code (SC) W

Inscribed Circle Diameter (IC) mm 12.7

Clearance Angle Major (an) Deg 0.0 deg

Fixing Hole Diameter (d1) Mm 5.2

Insert Included Angle (epsr) Deg 80.0 deg

Theoretical Cutting Edge Length (L) mm 8.7

Chipbreaker Programme M5

Type Turning Insert
Insert Grade Grade TP40
Insert Style WNMG
