Specifications
- AIMS SKU A0118313
- Brand Seco
- Model Number 02615929
- Barcode Number 15929026001001
- Designation WNMG080408-MF4 TS2000
- Grade TS2000

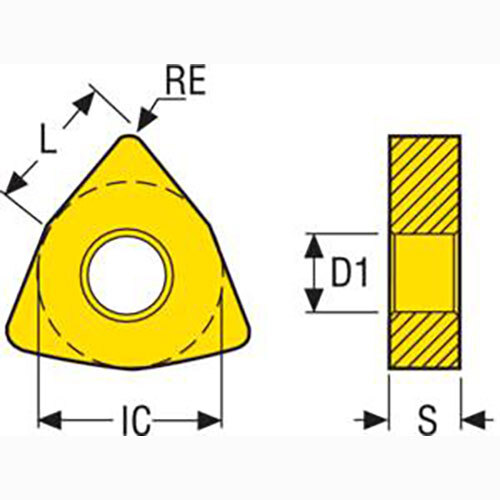

- Insert Thickness (S) mm 4.76
- Corner Radius (RE) mm 0.8
- Insert Shape Code (SC) W
- Inscribed Circle Diameter (IC) mm 12.7
- Clearance Angle Major (an) Deg 0.0 deg
- Fixing Hole Diameter (d1) Mm 5.2
- Insert Included Angle (epsr) Deg 80.0 deg
- Theoretical Cutting Edge Length (L) mm 8.7
- Chipbreaker Programme MF4
- Type Turning Insert
- Insert Grade Grade TS2000
- Insert Style WNMG
SKU: A0118313
Seco Turning Insert W Shape Code 4.76 x 0.8 x 12.7mm G Insert Type - MF4 Grade TS2000 ± 0.13/± 0.05mm Tolerance WNMG080408-MF4,TS2000 - Pack of 10
Turning Insert WNMG Insert Style - MF4 Grade TS2000
$256.44
