Description

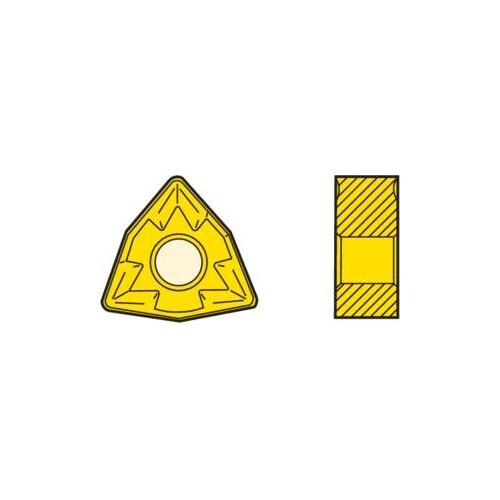

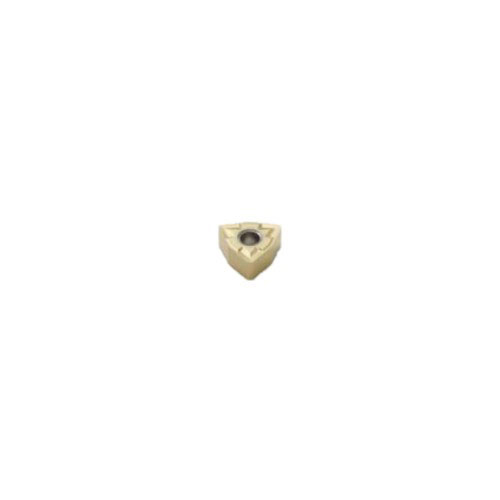

Turning Insert WNMG Insert Style - MR3 Grade CP200

  • W shape code.
  • G insert type, with hole and chip breaker on both faces.
  • CP200 insert grade.

CP200 Insert Grade

  • Hard micrograin grade principally intended for finishing in superalloys and titanium.
  • It also works well in stainless steel.
  • (Ti, Al) N + TiN.

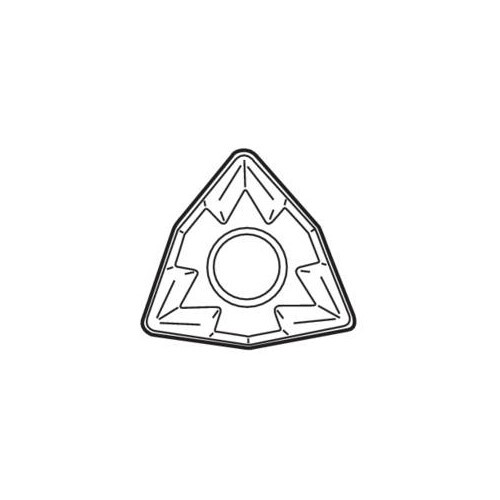

MR3 Chipbreaker Programme

  • Chipbreaker with a positive cutting rake angle that reduces cutting forces and gives a very high edge strength.
  • Intended for medium-rough and rough machining of superalloys, titanium alloys and hardened steel.
  • Indicative machining range: f = 0,2–0,6 mm/rev, ap = 1,5–7,0 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0116793
  • Brand Seco
  • Model Number 00072313
  • Barcode Number 72313000001005
  • Designation WNMG060408-MR3 CP200
  • Grade CP200

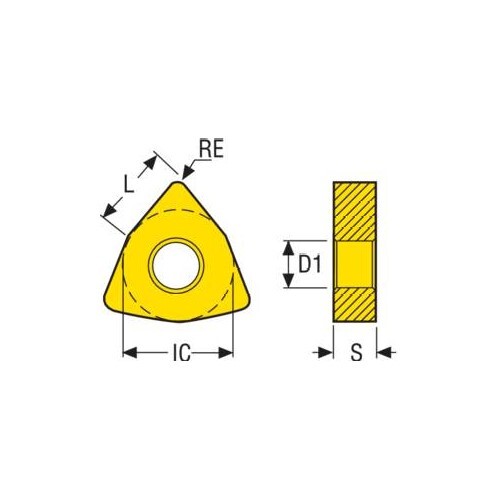

  • Insert Thickness (S) mm 4.76
  • Corner Radius (RE) mm 0.8
  • Insert Shape Code (SC) W
  • Inscribed Circle Diameter (IC) mm 9.53
  • Clearance Angle Major (an) Deg 0.0 deg
  • Fixing Hole Diameter (d1) Mm 3.8
  • Insert Included Angle (epsr) Deg 80.0 deg
  • Theoretical Cutting Edge Length (L) mm 6.5
  • Chipbreaker Programme MR3
  • Type Turning Insert
  • Insert Grade Grade CP200
  • Insert Style WNMG
SKU: A0116793

Seco Turning Insert W Shape Code 4.76 x 0.8 x 9.53mm G Insert Type - MR3 Grade CP200 ± 0.13/± 0.05mm Tolerance WNMG060408-MR3,CP200 - Pack of 10

Turning Insert WNMG Insert Style - MR3 Grade CP200

$201.16
