Specifications
- AIMS SKU A0117931
- Brand Seco
- Model Number 02960004
- Barcode Number 60004029001002
- Designation WNMG060408W-M3 TP2501
- Grade TP2501
- Grade Type Carbide CVD
- Cutting Edge Count (CEDC) 6
- Insert Hand (IH) Neutral
- Cutting Edge Effective Length (LE) mm 5.8
- Insert Thickness (S) mm 4.76
- Corner Radius (RE) mm 0.8
- Insert Seat Size Code (SSC) 6
- Insert Shape Code (SC) W
- Inscribed Circle Diameter (IC) mm 9.53
- Clearance Angle Major (an) Deg 0.0 deg
- Fixing Hole Diameter (d1) Mm 3.8
- Insert Included Angle (epsr) Deg 80.0 deg
- Theoretical Cutting Edge Length (L) mm 6.5
- Chipbreaker Programme W-M3
- Type Turning Insert
- Insert Grade Grade TP2501
- Insert Style WNMG
SKU: A0117931

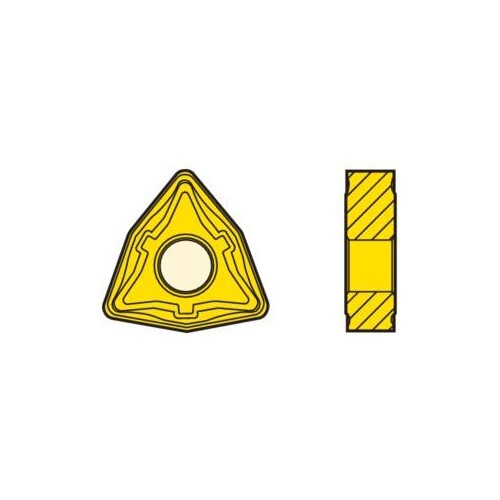

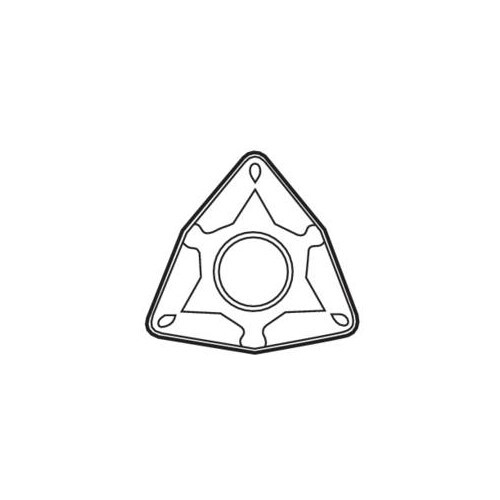

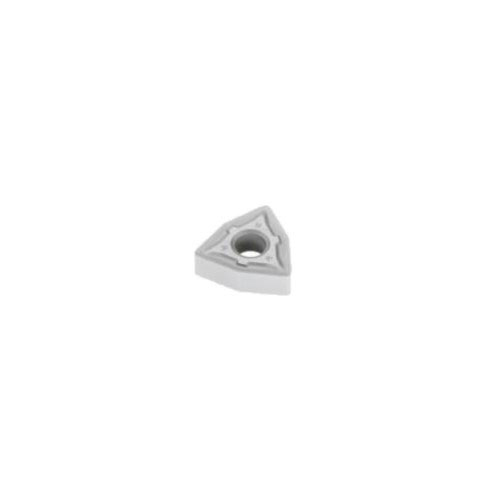

Seco Turning Insert W Shape Code 4.76 x 0.8 x 9.53mm G Insert Type - W-M3 Grade TP2501 ± 0.13/± 0.05mm Tolerance WNMG060408W-M3,TP2501 - Pack of 10
Turning Insert WNMG Insert Style - W-M3 Grade TP2501
$236.42
