Turning Insert WNMG Insert Style - W-MF2 Grade TP1030 - SECO

Description

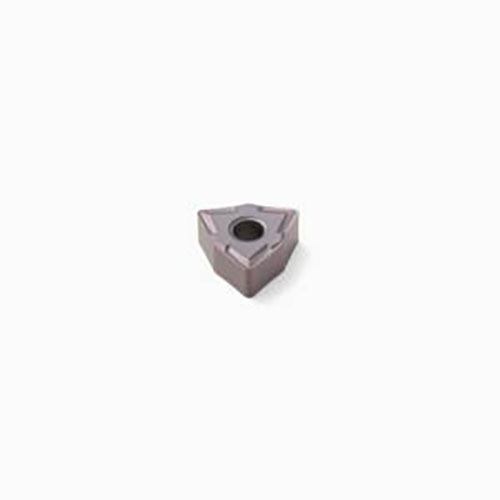

Turning Insert WNMG Insert Style - W-MF2 Grade TP1030

W shape code.
G insert type, with hole and chipbreaker on both faces.
TP1030 insert grade.

TP1030 Insert Grade

Coated highly wear-resistant cermet grade for high surface finish and productivity requirements mainly used in steel and stainless steel.
Ti-Al-Si-N nanolaminate coating.

W-MF2 Chipbreaker Prog.ramme

First choice for finishing with both positive and negative inserts.
Chipbreaker is suitable for finishing machining of steel, stainless steel and cast iron at high feed rates giving good surface finish.
Indicative machining range: f = 0,05-0,60 mm/rev, ap = 0,5-4,0 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
To boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

AIMS SKU A0117369

Brand Seco

Model Number 02754932

Barcode Number 54932027001009

Designation WNMG060408W-MF2 TP1030

Grade TP1030

Grade Type Cermet PVD

Cutting Edge Count (CEDC) 6

Insert Hand (IH) Neutral

Cutting Edge Effective Length (LE) mm 5.8

Insert Thickness (S) mm 4.76

Corner Radius (RE) mm 0.8

Insert Seat Size Code (SSC) 6

Insert Shape Code (SC) W

Inscribed Circle Diameter (IC) mm 9.53

Clearance Angle Major (an) Deg 0.0 deg

Fixing Hole Diameter (d1) Mm 3.8

Insert Included Angle (epsr) Deg 80.0 deg

Theoretical Cutting Edge Length (L) mm 6.5

Chipbreaker Programme W-MF2

Type Turning Insert
Insert Grade Grade TP1030
Insert Style WNMG
