Description

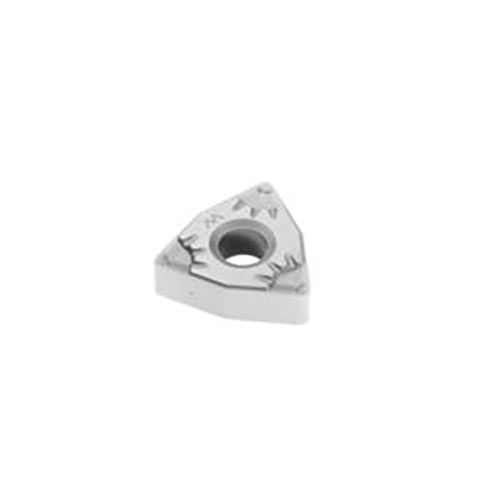

Turning Insert WNMG Insert Style - W-MF5 Grade TP1501

  • W shape code.
  • G insert type, with hole and chipbreaker on both faces.
  • TP1501 insert grade.

TP1501 Insert Grade

  • Duratomic® grade.
  • Highly heat and wear-resistant grade extremely well suited for productive general turning of steels and a useful backup in other material groups.
  • Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

W-MF5 Chipbreaker Prog.ramme

  • Chipbreaker intended for medium finishing of steel at high feed.
  • The geometry is very open and highly positive and equipped with wiper radius.
  • Indicative machining range: f = 0,2-0,8 mm/rev, ap = 0,2-2,7 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • To boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0117582
  • Brand Seco
  • Model Number 02960585
  • Barcode Number 60585029001006
  • Designation WNMG060408W-MF5 TP1501
  • Grade TP1501
  • Grade Type Carbide CVD
  • Cutting Edge Count (CEDC) 6
  • Insert Hand (IH) Neutral
  • Cutting Edge Effective Length (LE) mm 2
  • Insert Thickness (S) mm 4.76
  • Corner Radius (RE) mm 0.8
  • Insert Seat Size Code (SSC) 6
  • Insert Shape Code (SC) W
  • Inscribed Circle Diameter (IC) mm 9.53
  • Clearance Angle Major (an) Deg 0.0 deg
  • Fixing Hole Diameter (d1) Mm 3.8
  • Insert Included Angle (epsr) Deg 80.0 deg
  • Theoretical Cutting Edge Length (L) mm 6.5
  • Chipbreaker Programme W-MF5
  • Type Turning Insert
  • Insert Grade Grade TP1501
  • Insert Style WNMG

Video

SKU: A0117582

Seco Turning Insert W Shape Code 4.76 x 0.8 x 9.53mm G Insert Type - W-MF5 Grade TP1501 ± 0.13/± 0.05mm Tolerance WNMG060408W-MF5,TP1501 - Pack of 10

Turning Insert WNMG Insert Style - W-MF5 Grade TP1501

$236.42
