Description

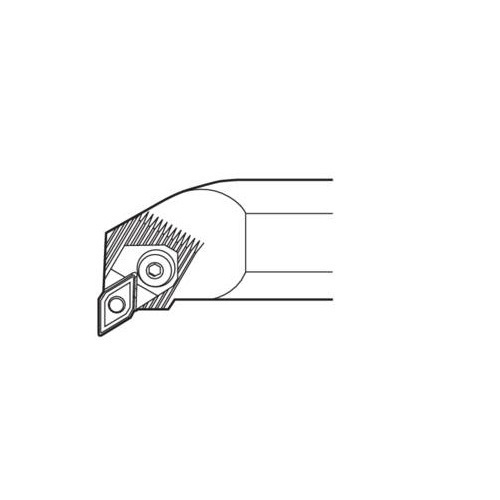

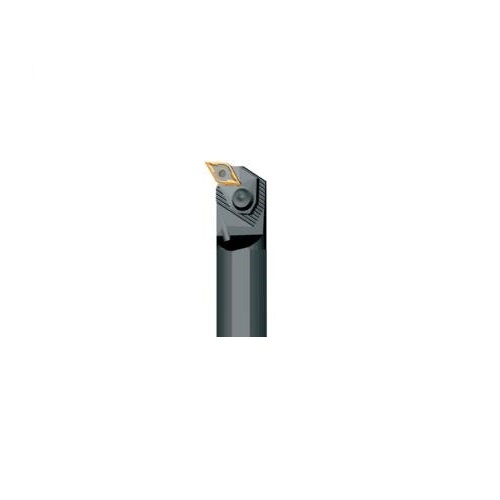

Seco Internal Turning Toolholder Steel Pin Lock

Turning Internal Toolholder (Steel - Pin Lock - U Type - D Insert Shape - 15mm Cutting Edge Length)

  • Steel with coolant passage.
  • D insert shape.
  • 0° ISCA (Insert Side Clearance Angles).
  • 15mm cutting edge length.
  • Pin lock assembly, (NL/PL tool holders).
  • U tool type, offset shank with negative 3° (93°) end or side cutting edge angle.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

  • AIMS SKU A0114446
  • Brand Seco
  • Model Number 02516544
  • Barcode Number 16544025000108
  • Net Weight (kg) 1.514

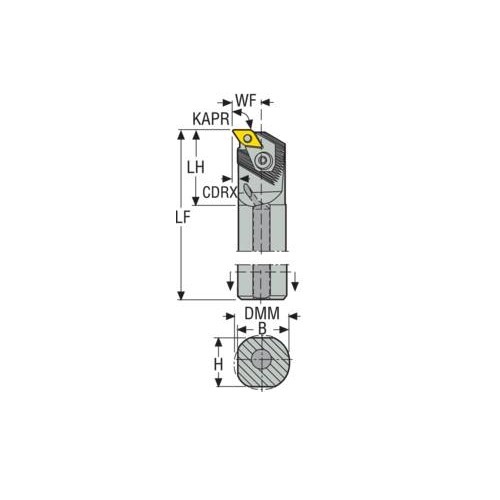

  • Designation A32T-PDUNR15
  • Functional Length (LF) 300mm
  • Cutting Depth Radial Max (CDRX) mm 5
  • Cutting Depth Max (CDX) mm 5
  • Functional Width (WF) mm 22
  • Cutting Edge Length (mm) 15
  • Inclination Angle (LAMS) -15.0 deg
  • Tool Cutting Edge Angle Code (KAPRC) U
  • Cutting Diameter Internal Minimum (DCINN) 40
  • Tool Type U Type
  • Shank Diameter (DMM) 32mm
  • Height Of Tool Holder Shank (H) mm 30
  • Head Length (LH) mm 50
  • Tool Cutting Edge Angle (KAPR) 93.0 deg
  • Connection Text Workpiece Side (ctws) DN1506
  • Shank Width (b) mm 31
  • Direction Of Cutting (hand) Right
  • Connection Text Machine Side (CTMS) 32
  • Rake Angle Orthogonal (gamo) -6.0 deg
  • Type Turning Toolholder
  • Shank Type Cylindrical
  • Version (internal/external/both) Internal
  • Tool Holder Type Steel
  • Insert Clamping System (ICS) Pin Lock

Video

SKU: A0114446

Seco Internal Turning Toolholder Steel Pin Lock 300 x 32 x 15mm Right 93° D Insert Shape A32T-PDUNR15

Turning Internal Toolholder (Steel - Pin Lock - U Type)

$431.20
RRP $539.00
SAVE $107.80 (20%)
