Specifications
- AIMS SKU A0156842
- Brand FYH
- Model Number UC201/FYH
- Outside Diameter 47 mm
- B (in) 1.22
- Set Screw Brg. Bore G (mm) M6 x 0.75
- S2 (in) 0.197
- S1 (in) 0.72
- S (in) 0.5
- Basic Load Rating C0r (kn) 6.65
- Basic Load Rating Cr (kn) 12.8
- R Min (in) 0.024
- R Min (mm) 0.6
- Factor f0 13.2
- C (in) 0.63
- C1 (in) 0.157
- D (in) 1.85
- Bore Diameter 12 mm
- Width 31 mm
- D (mm) 47
- b (mm) 31
- S2 (mm) 5
- S1 (mm) 18.3
- S (mm) 12.7
- C1 (mm) 4
- C (mm) 16
- Shaft Diameter (mm) 12
- Type Ball Bearing
- System of Measurement Metric
- Series UC200
SKU: A0156842

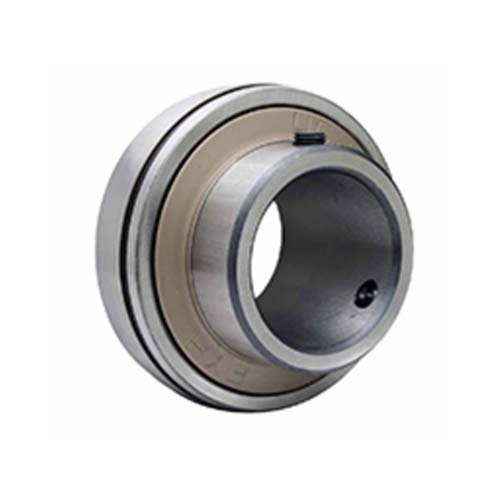

FYH Wide Inner Ring Bearing UC201 with Grub Screw 12 x 47mm
Wide Inner Ring Bearing w/ Grub Screw - Metric
$24.52
