Specifications

AIMS SKU A0156868
Brand FYH
Model Number UC201-8/FYH

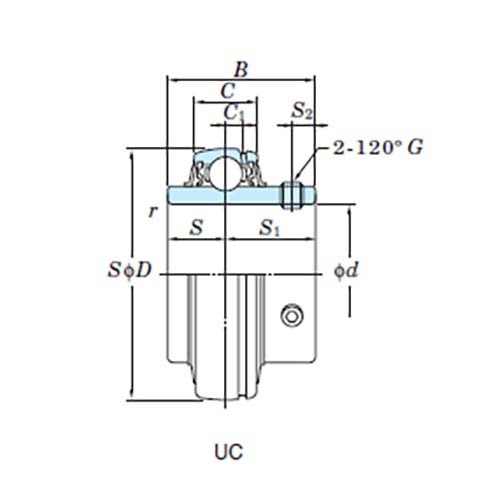

Outside Diameter 1.85 in
B (in) 1.22
Set Screw Brg. Bore G (in) 1/4-28UNF
S2 (in) 0.197
S1 (in) 0.72
S (in) 0.5
Basic Load Rating C0r (kn) 6.65
Basic Load Rating Cr (kn) 12.8
R Min (in) 0.024
R Min (mm) 0.6
Factor f0 13.2
C (in) 0.63
C1 (in) 0.157
D (in) 1.85
Bore Diameter 1/2 in
Width 1.22 in
D (mm) 47
b (mm) 31
S2 (mm) 5
S1 (mm) 18.3
S (mm) 12.7
C1 (mm) 4
C (mm) 16
Shaft Diameter (inch) 1/2
• Type Ball Bearing
• System of Measurement Imperial
• Series UC200
