Description

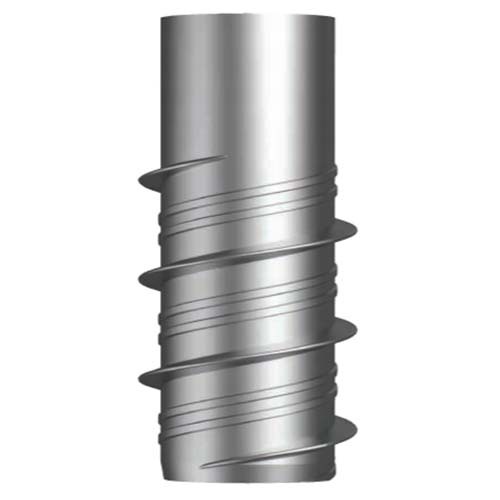

Xbolt Bite Internal Thread Hex Anchor R1000 Coating.

  • Self-tapping Suspension Anchor
  • Internally threaded self-tapping anchor for suspension applications and fixings into concrete.
  • The XBolt® Bite™ is an alternative to a drop-in anchor and offers the advantage of a non-expansion fixing.

Features

  • Internal (female) thread allows easy adjustment of bolt or rod.
  • Bolt or rod can easily be removed.
  • Fast installation with cordless tool (hammer setting should not be used).

Applications

  • Suspension of mechanical services
  • Pipe supports.
  • Cable trays.
  • Fire sprinklers.
  • Suspended lighting.
  • Alternative to drop-in anchor

Specifications

  • AIMS SKU A0143475
  • Size M10
  • Internal Thread Length (mm) 20

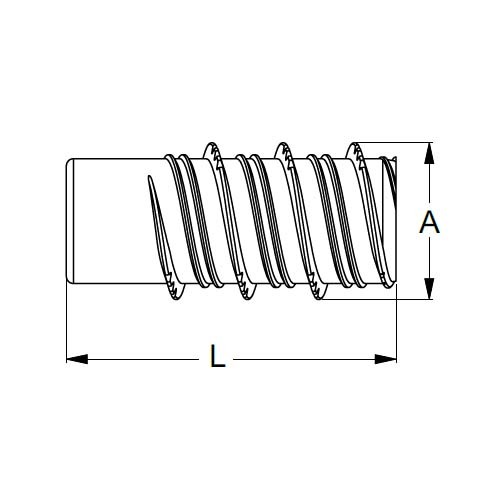

  • Item Length 37 mm

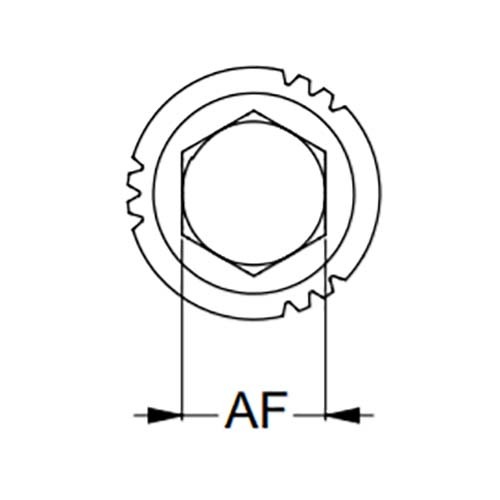

  • Internal Hex Drive Af (mm) 10
  • Drill Hole ø (mm) 15
  • Major Diameter A (mm) 17
  • Type Internal Thread Hex Anchor
  • Finish R1000 Hours Protective Coat
  • Head Style Dome Head
  • Drive Style Torx Drive
SKU: A0143475

M10 x 37mm Xbolt Bite Internal Thread Hex Anchor R1000 Coat - Box of 100

Xbolt Bite Internal Thread Hex Anchor R1000 Coating

$116.58
