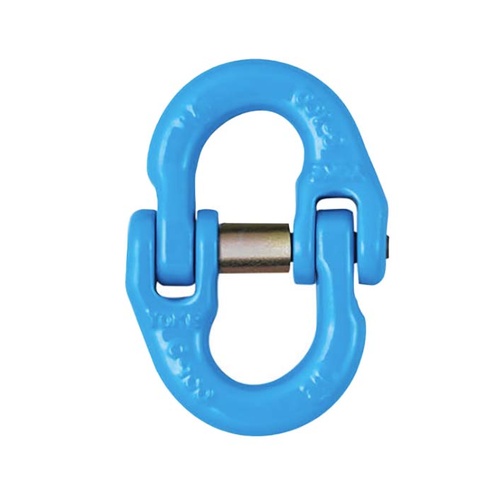

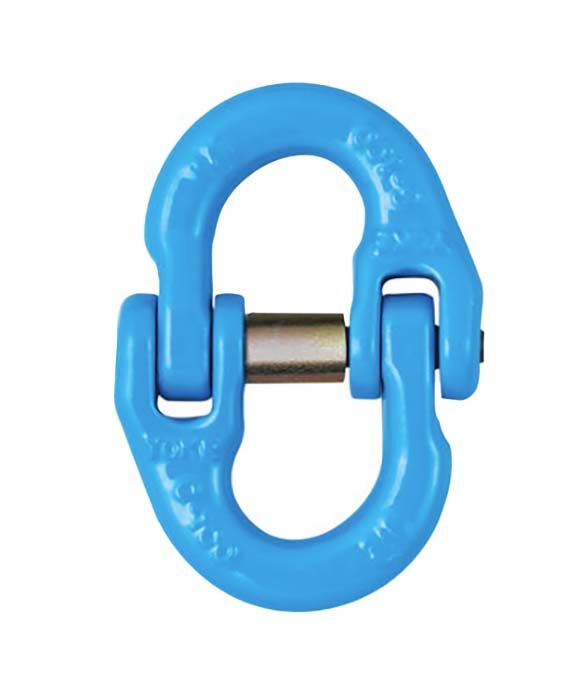

Yoke G100 Chain Connector

Description

Yoke G100 Chain Connector

Quenched and Tempered Alloy Steel.
At least 25% greater WLL than traditional GSO products.
Manufactured in accordance with EN 1677- 1, and ASTMA952/ A952M.
Certified by OGUV GS-OA-15-05.
Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.
Design Factor 4:1.
Fatigue rated to 20,000 cycles at 1.5 times the WLL.
Suitable for use with both Grade 80 and Grade 100 chains.

Specifications

AIMS SKU A0208403

Brand Yoke

Model Number 180206

Barcode Number 4713037058239

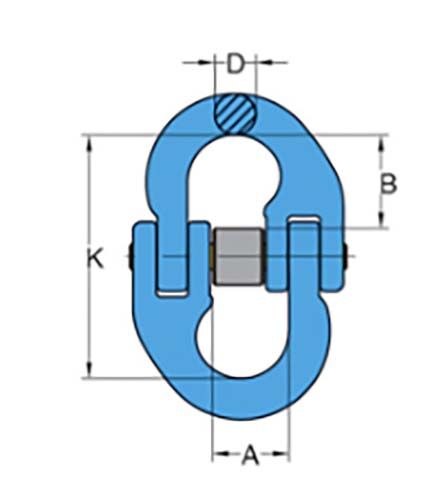

Size (mm) 6

Dimension A (mm) 15

Dimension B (mm) 17

Dimension D (mm) 7

Weight (kgs) 0.08

WLL 1.4 T

Dimension K (mm) 45

Type Chain Connector
Grade G100
