Description

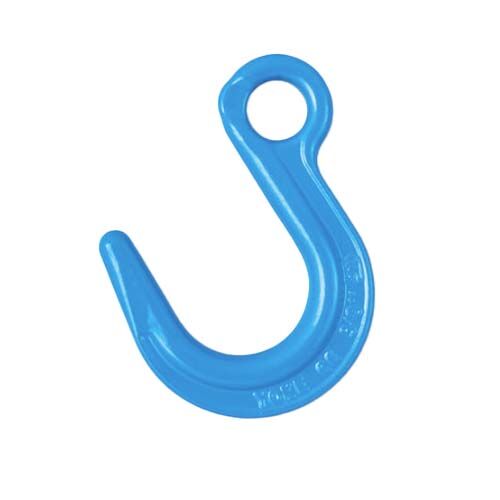

Yoke G100 Eye Foundry Hook

Quenched and Tempered Alloy Steel.
At least 25% greater WLL than traditional GSO products.
Manufactured in accordance with DIN PAS 1061, and ASTM A952/A 952M, EN 1677- 1.
Certified by OGUV GS-OA-15-05.
Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.
Design Factor 4:1.
Fatigue rated to 20,000 cycles at 1.5 times the WLL.
Tempering temperature minimum 400°C.
Designed for the assembly of chain slings where wide throat openings are necessary.
Before using the hook, check whether hooks without safety latches are allowed to be used for the particular application.
