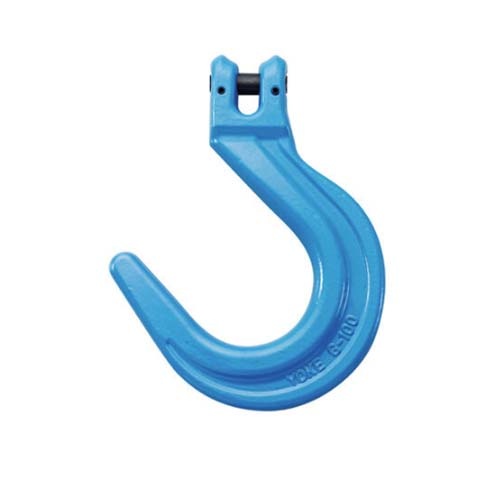

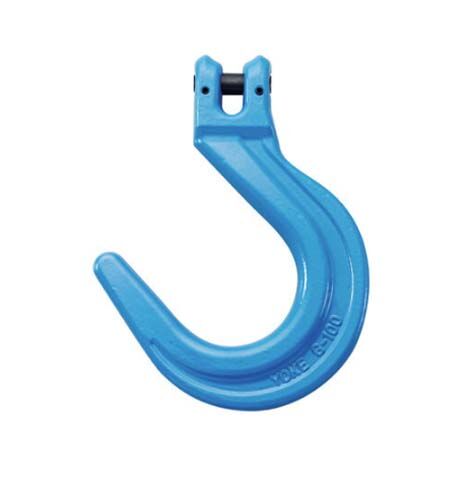

Yoke G100 Foundry Clevis Hook

Description

Yoke G100 Foundry Clevis Hook

Quenched and Tempered Alloy Steel.
At least 25% greater WLL than traditional GSO products.
Manufactured in accordance with DIN PAS 1061, and ASTM A952/A 952M,EN 1677- 1.
Certified by OGUV GS-OA-15-05.
Design Factor 4:1.
Fatigue rated to 20,000 cycles at 1.5 times the WLL.
Tempering temperature minimum 400°C.
Designed for the assembly of chain slings where wide throat openings are necessary.
Before using the hook, check whether hooks without safety latches are allowed to be used for the particular application.

Specifications

AIMS SKU A0208424

Brand Yoke

Model Number 187016

Barcode Number 4713037059175

Chain Size (mm) 16

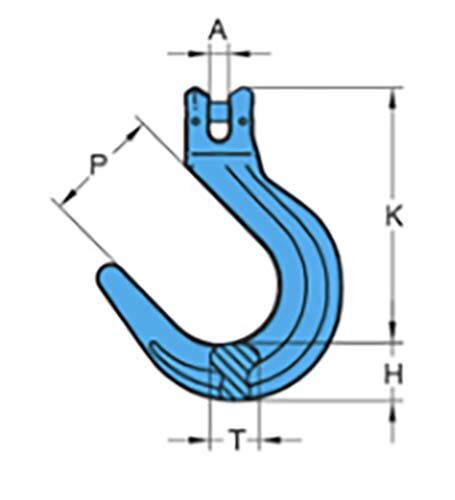

Dimension A (mm) 18

Dimension H (mm) 46

Weight (kgs) 6.4

WLL 10 T

Dimension K (mm) 216

Dimension P (mm) 101

Dimension T (mm) 41

Type Clevis Hook
Grade G100
