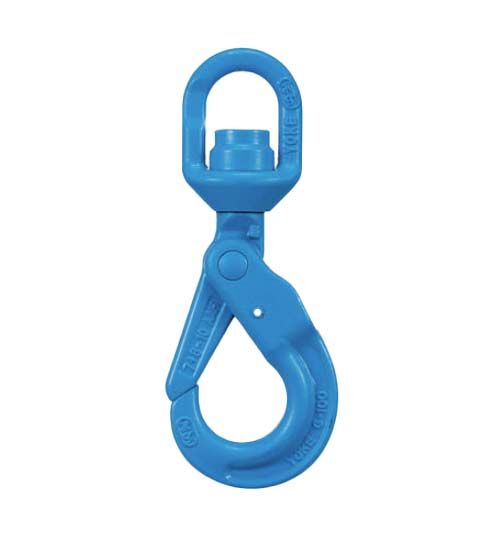

Yoke G100 Swivel Ball Bearing Self Locking Hook

Description

Yoke G100 Swivel Ball Bearing Self Locking Hook

Quenched and Tempered Alloy Steel.
At least 25% greater WLL than traditional G80 products.
Manufactured in accordance with EN 1677- 3 and ASME 830.26, ASME 830.10, PAS1061.
Certified by DGUV GS-OA-15-05.
Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.
Design Factor 4:1.
Fatigue rated to 20,000 cycles at 1.5 times the WLL.
Tempering temperature minimum 400°C.
Magnaflux crack detection is performed 100% on each batch.
Built with ball bearing and enables full swivel feature under load.

Specifications

AIMS SKU A0208480

Brand Yoke

Model Number 183706

Barcode Number 4713037058703

Chain Size (mm) 6

Dimension A (mm) 32

Dimension B (mm) 23

Dimension D (mm) 12

Dimension H (mm) 19

Weight (kgs) 0.7

WLL 1.4 T

Dimension K (mm) 149

Dimension P (mm) 28

Dimension T (mm) 15

Type Swivel Ball Bearing Self Locking Hook
Grade G100
