Description

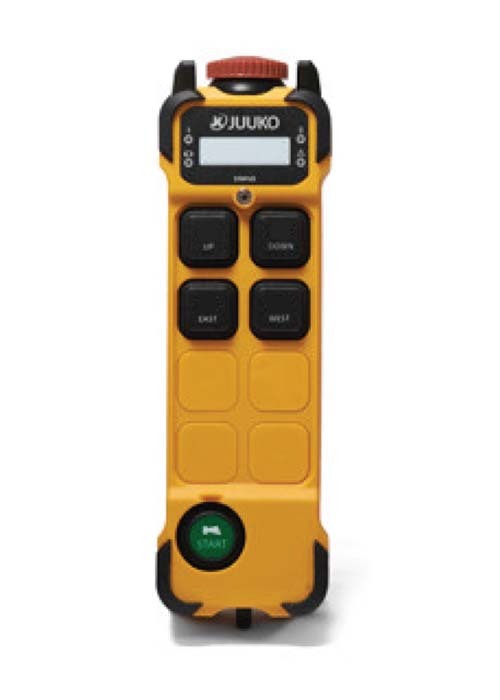

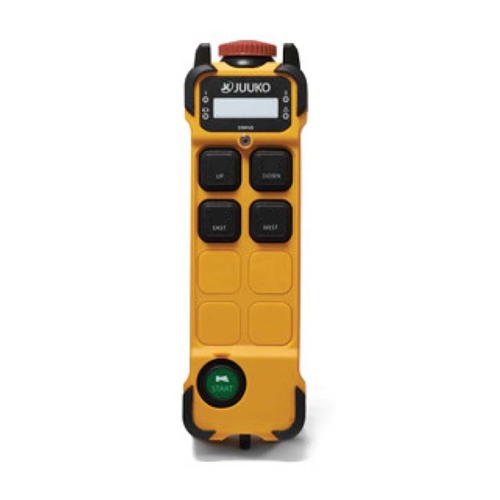

JUUKO Dual Speed Remote Control and Receiver 4 Button

The K-Series remote controls are easy to use and provide comfort due to their ergonomic design. The transmitter is constructed with ultra-high impact resistant corner bumpers for added protection and a rubber protective cover underneath the EMO button which is dust-resistant. The back of the remote control features a matt black rubber finish which is durable and offers a secure and comfortable grip.

Products Features

Automatic channel switching allows users to select primary working frequency and secondary working frequency
Range limiting function allows reduction of maximum distance for the transmitter to continue operating
Electronic key-code and automatic shut-off option programmable to prevent accidental activation of the transmitter
Eco power management system to save battery life
Receive and displays via 4 LED signals coming from the receiver (to relay action feedback)
Mushroom type EMO button
Internal Bootloader, firmware up to date by using a computer
Wireless pairing procedure by using pendant push buttons
Independent LED's to indicate the status of battery
Data logging Black Box system included, which records date and remote usage
Suitable for all Hitachi, CEH, PEH hoists and trolleys

Transmitter Features

Ergonomic Design: Easy to use and provide comfort
Protection: Constructed with ultra-high impact resistant corner bumpers for added protection and a rubber protective cover underneath the EMO button which is dust-resistant.
Durability: The back of the remote control features a matt black rubber finish which is durable and offers a secure and comfortable grip.
Multi-control system - master/slave, take/release, tandem

JUUKO K-Series Remote Control Transmitter Specifications

Size	193 x 57 x 51mm
Weight	325g
Frequency Band	433MHz
Typical Operating Range	100m
Control System	PLL
Antenna Impedance	50Ω
Radio-frequency Power	<10dBm
Power Supply	DC3V (LR6(AA)1.5V*2)
Average Power Consumption	16mA a 3Vcc
Operating and Storage Temperature	(-25°C)-(+55°C) / (-40°C)-(+85°C)
Housing Material	PA(30%fg)
Protection Degree	IP65
Operating Distance	Up to 100m
Antenna Type and Impedance	50ohm

JUUKO HS-Series Receiver Specifications

About JUUKO

JUUKO is a pioneer in the development and manufacturing of industrial radio remote controls with a clear focus on safety, efficiency and productivity. Their products are used in over 20 countries around the world in the hoisting and cranes industry. The perfect tool for magnetic cranes, overhead cranes, electric chain hoists and tandem operations.
