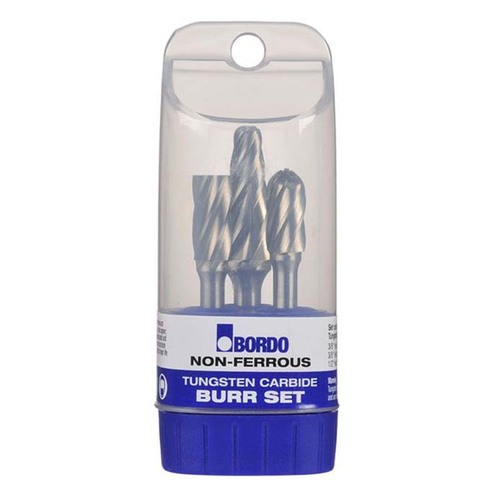

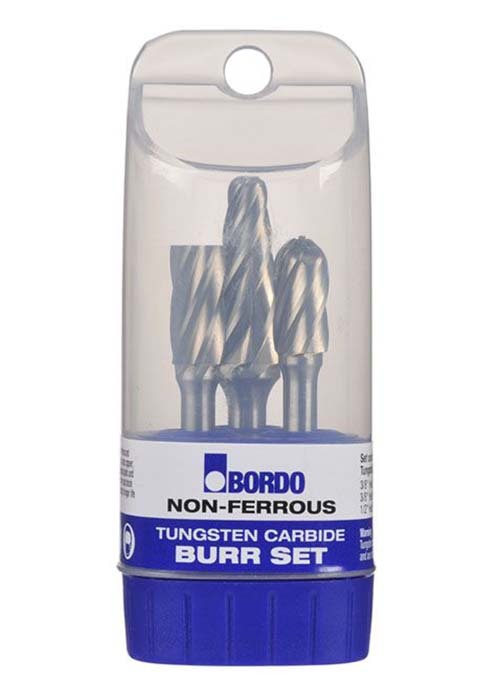

Bordo Non-Ferrous Cut Tungsten Carbide 3 Piece Burr Set

• Non-Ferrous Cut Burrs are designed for rapid stock removal with minimum chip loading resulting in longer life and reduced clogging.

Applications

Non-Ferrous Cut Burrs are for use on non-ferrous and non-metallic materials such as:

• Aluminium
• Brass
• Copper
• Bronze
• Coarse plastic
• Hard rubber
• Reinforced plastic and
• Fibreglass composite

Usage

• It may be necessary to alter the running speeds from those shown in the speed chart in order to achieve optimum performance
• Harder materials require slower running speeds
• Smaller burrs require faster running speeds
• Long shank burrs require slower speeds for safety reasons
• Apply constant movement and light pressure when using the burr
• Running below the optimum speed will cause chipping
• Running above optimum speed will cause premature tooth wear
• Allowing the burr to become too hot may cause the braze to soften, and cause the head to become detached from the shank
• Using tools and collets which have become worn will cause chipping
• Do not sink the burr for more than one third of its periphery
