Austlift G100 Shortening Clutch With Safety Pin

Description

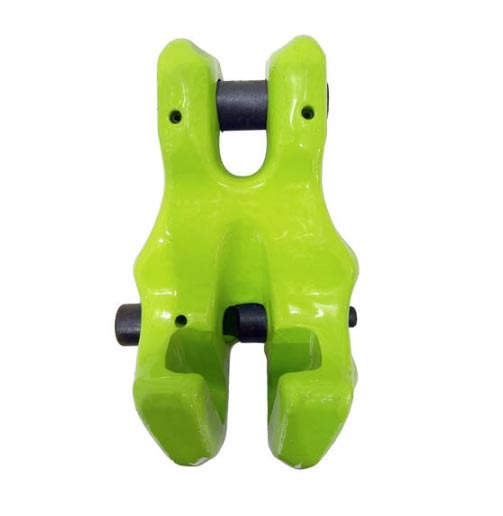

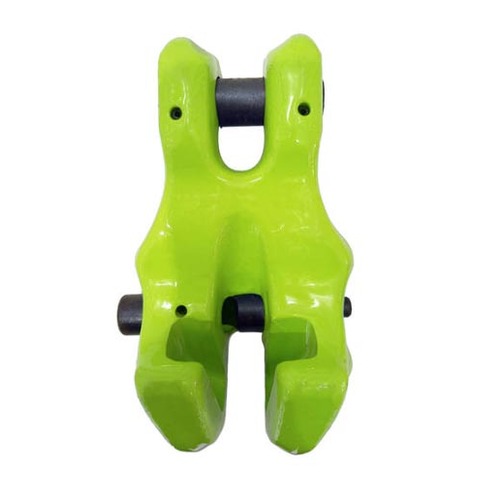

Austlift G100 Shortening Clutch With Safety Pin

Shortening Clutch (Clevis Type, CC, safety pin).
Austlift CC type lockable clutches have the advantage of shortening a chain sling without loss of the working load limit of the sling.
The clevis allows easy connection to chain.
Not recommended for use as bottom fitting of sling for back-hooking and reeving applications.
Marked with single and double chain size, designation, grade, manufacture quality mark, and Austlift branded.
25% higher work load limit than G80.
Batch tested, test certificates available upon request.
Fatigue tested > 20,000 times.

Specifications

AIMS SKU A0207712

Brand Austlift

Model Number 171210

Barcode Number 9345339031389

Size (mm) 10

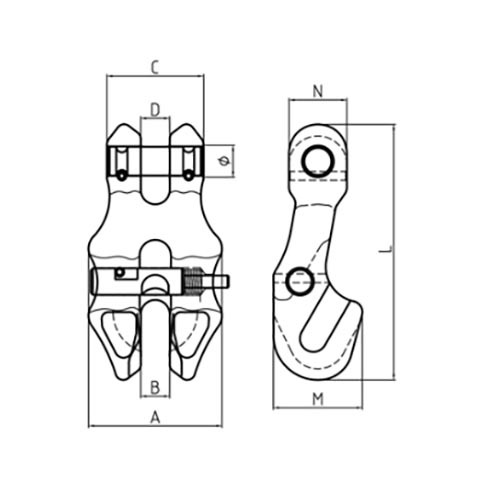

Dimension (mm) A 60

Dimension (mm) C 43

Weight (kgs) 0.75

WLL 4 T

Dimension (mm) B 11.7

Dimension (mm) D 11.7

Dimension (mm) L 115

Dimension (mm) M 45.4

Dimension (mm) N 26

Dimension (mm) Ø 13.3

Type Clevis Shortening Clutch
