Description

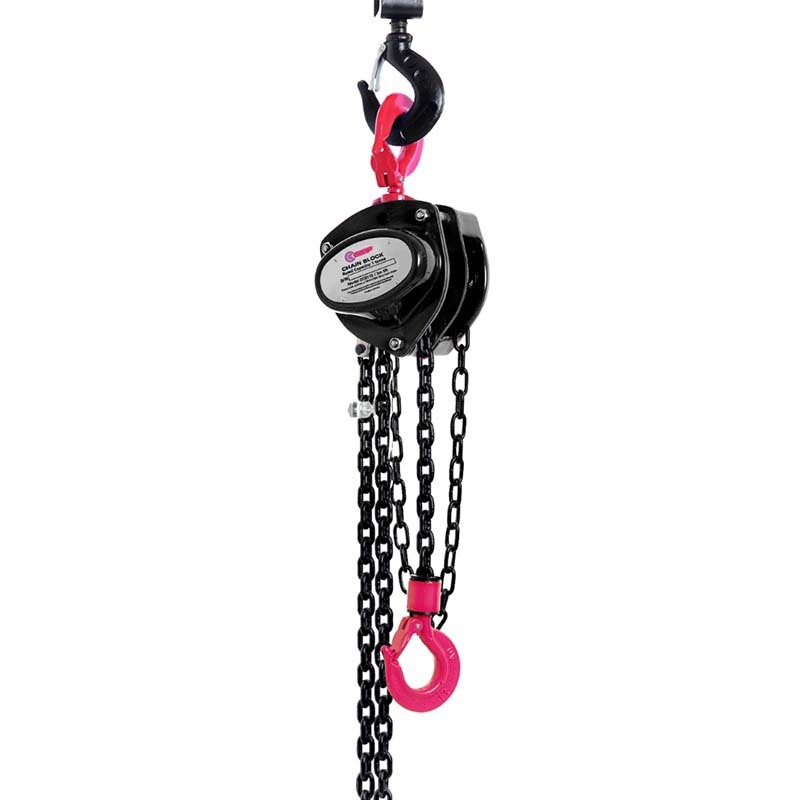

Challenger Chain Block Generation II

  • Challenger Chain Blocks feature better quality in a new compact design.
  • The extensive range is suitable for many applications in the mining, construction, industrial, and automotive industry.
  • These chain blocks have it all; better quality, easy to use, improved safety and all of this with reduced cost.

Features

  • All Challenger models are manufactured to comply with AS1418.2.
  • High strength end stop with secondary end anchor for increased safety.
  • "T" type hooks for improved load holding integrity.
  • Gear system design for reduced effort when lifting loads.
  • Includes a specially designed hand wheel to eliminate hand chain slippage and pocket wear.
  • Encapsulated needle bearings and side plate bearings for smoother operation.
  • Key internal components are CNC machined before being heat-treated and toughened.
  • No aluminium content which ensures suitability for mining applications.
  • Overall better design and improved finish to prolong life expectancy.

Note: All materials handling or lifting jobs should be assessed individually. Products are NOT to be used for lifting or lowering persons.

Specifications

  • AIMS SKU A0203978
  • Brand Challenger
  • Model Number CCB206
  • Load Capacity (kg) 500
  • Net Weight (kg) 10
  • Headroom (mm) 280
  • Hand Chain Drop (m) 5
  • Test Load (kg) 750
  • Dimension A (mm) 128
  • Dimension B (mm) 75
  • Dimension C (mm) 130
  • Dimension D (mm) 280
  • Dimension E (mm) 22
  • Load Capacity 0.5 Tonne
  • Lift Height 6m
  • No. Of Falls 1
  • Effort to Lift Full Load (N) 210
  • Hand Chain (mm x mm) ?5 x 23.7
  • Type Chain Block
SKU: A0203978

Challenger 0.5 Tonne (500kg) Chain Block Generation II x 6m

Challenger Chain Block Generation II

$231.15
