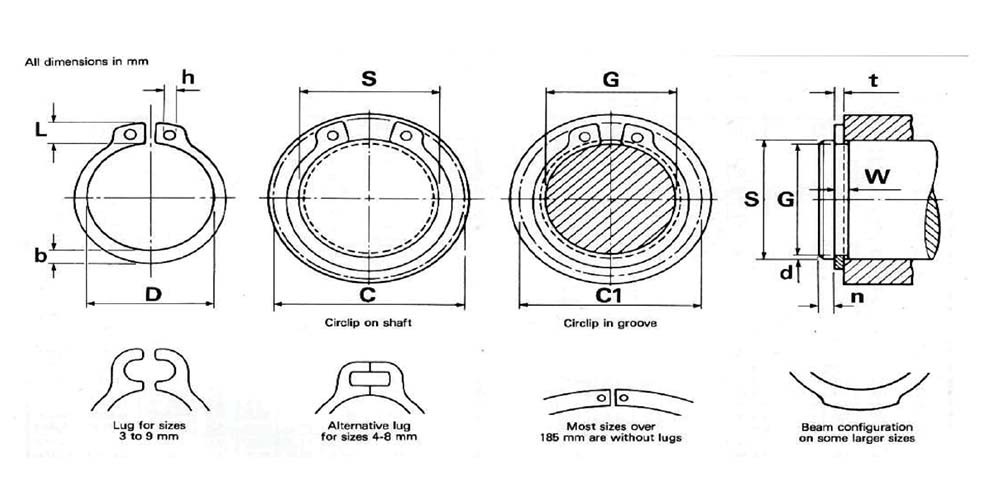

Specifications

AIMS SKU A0100455
Groove Diameter (G) mm 58
Tolerance (G) (+)0.00 (-)0.30
Groove Width (W) mm 2.15
Tolerance (W) (+)0.14 (-)0.00
Shoulder Length (n) mm 4.5
Radial Depth Of Groove (d ~) 1.5
Thickness (t) mm 2
Tolerance (t) (+)0.00 (-)0.07
Unstressed Diameter (D) mm 56.8
Tolerance (D) (+)0.46 (-)1.10
Circlip In Bore ( C ) mm 76.7
Circlip In Groove (C1) mm 72.9
Lug Max (Lmax) mm 7.4
Beam Dimension (b) mm 5.9
Lug Hole (h min) mm 2.5
Shaft Diameter (S) mm 61
• Type External Circlips
• Item Type (Internal/External)
