Specifications

AIMS SKU A0100538

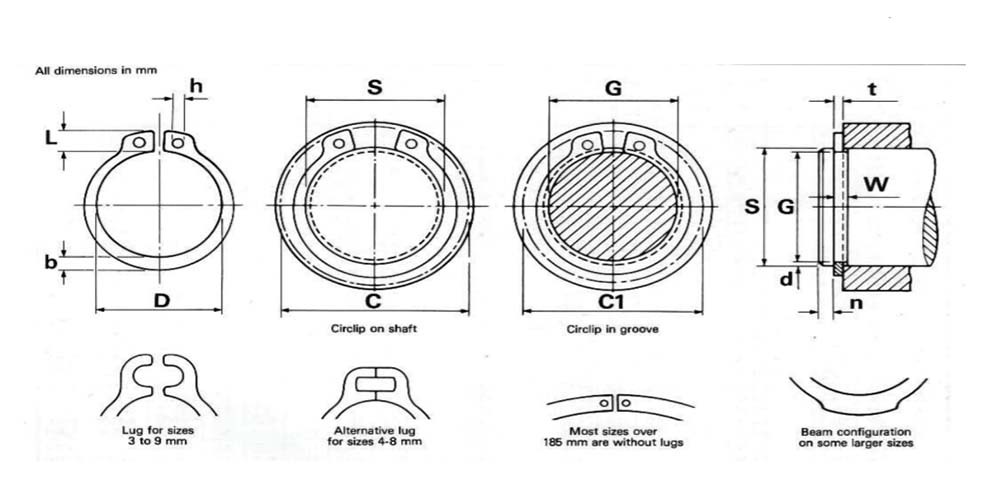

Groove Diameter (G) mm 3.8
Tolerance (G) (+)0.00, (-)0.048
Groove Width (W) mm 0.5
Shoulder Length (n) mm 0.3
Radial Depth Of Groove (d ~) 0.1
Thickness (t) mm 0.4
Unstressed Diameter (D) mm 3.7
Circlip In Bore ( C ) mm 8.6
Circlip In Groove (C1) mm 8.2
Lug Max (Lmax) mm 2.2
Beam Dimension (b) mm 0.9
Lug Hole (h min) mm 1
Shaft Diameter (S) mm 4

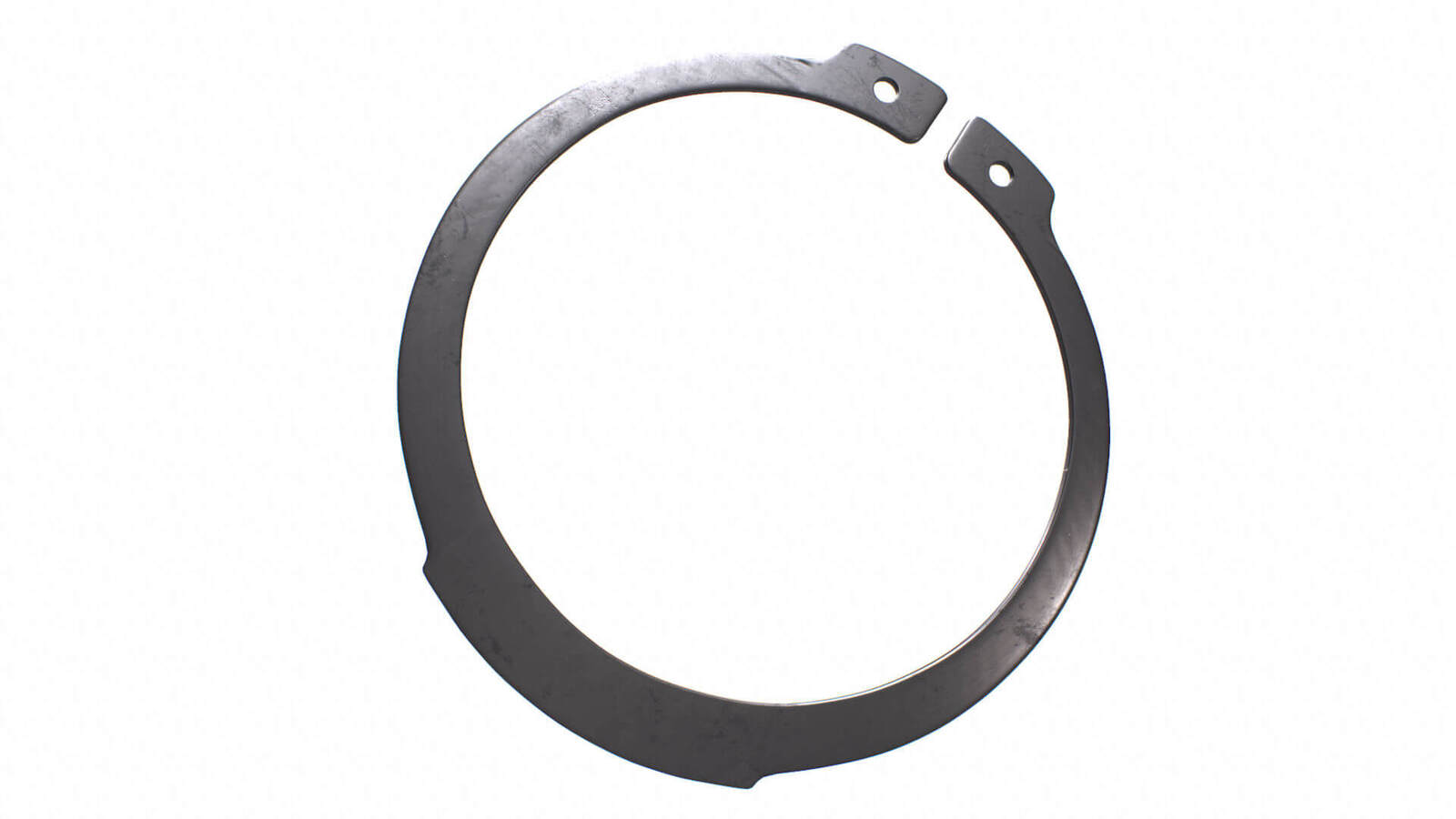

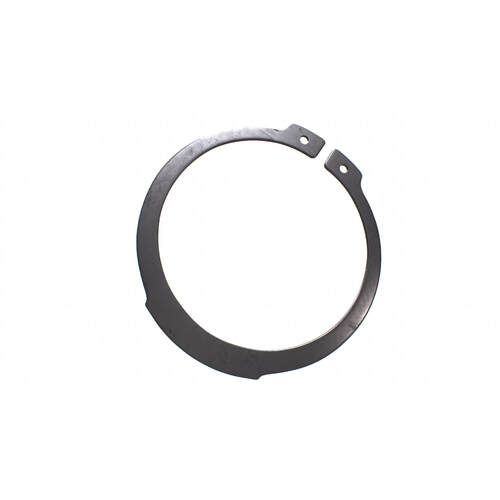

• Type External Circlips
• Material Stainless Steel
• Grade 420
• Item Type (Internal/External)
