Specifications

AIMS SKU A0100546
Groove Diameter (G) mm 11.5
Tolerance (G) (+)0.00 (-)0.11
Groove Width (W) mm 1.1
Shoulder Length (n) mm 0.8
Radial Depth Of Groove (d ~) 0.25
Thickness (t) mm 1
Tolerance (t) (+)0.00 (-)0.06
Unstressed Diameter (D) mm 11
Tolerance (D) (+)0.10 (-)0.36
Circlip In Bore ( C ) mm 19
Circlip In Groove (C1) mm 18.1
Lug Max (Lmax) mm 3.3
Beam Dimension (b) mm 1.8
Lug Hole (h min) mm 1.7
Shaft Diameter (S) mm 12

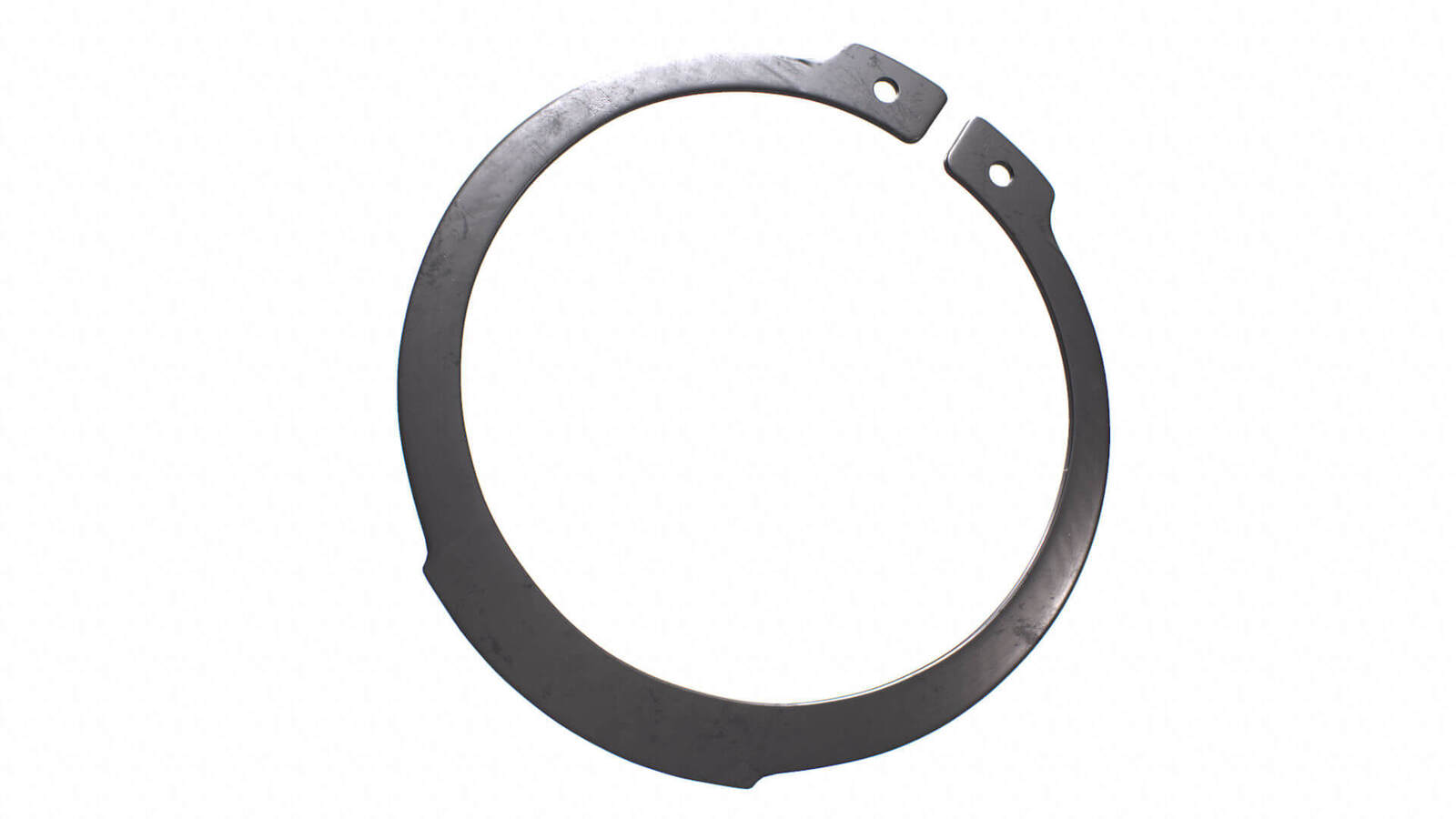

• Type External Circlips
• Material Stainless Steel
• Grade 420
• Item Type (Internal/External)
