Specifications
- AIMS SKU A0100562

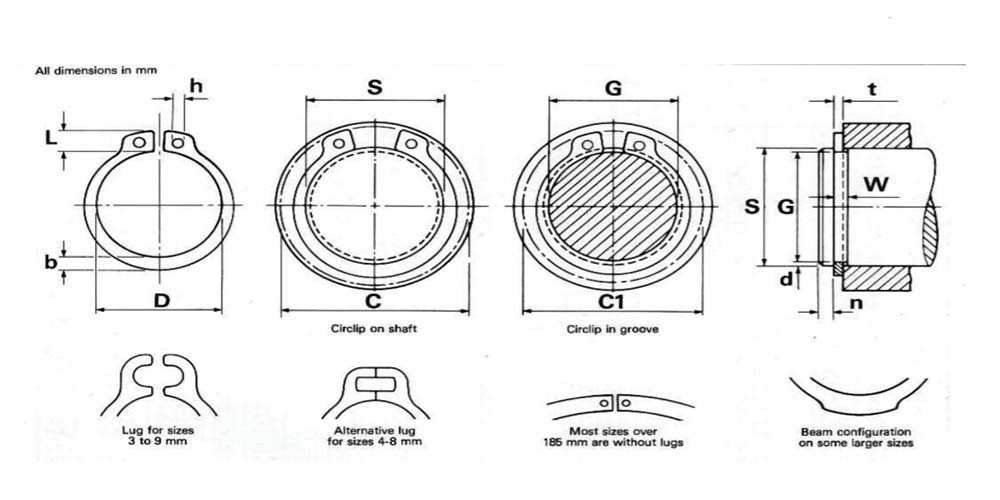

- Beam Dimension (b) mm 3.2
- Circlip In Bore ( C ) mm 37.9
- Tolerance (t) (+)0.00 (-)0.06
- Shoulder Length (n) mm 2.1
- Groove Diameter (G) mm 26.6
- Shaft Diameter (S) mm 28
- Lug Max (Lmax) mm 4.7
- Tolerance (D) (+)0.21 (-)0.42
- Thickness (t) mm 1.5
- Groove Width (W) mm 1.6
- Lug Hole (h min) mm 2
- Circlip In Groove (C1) mm 36
- Unstressed Diameter (D) mm 25.9
- Radial Depth Of Groove (d ~) 0.7
- Tolerance (G) (+)0.00 (-)0.21
- Type External Circlips
- Material Stainless Steel
- Item Type (Internal/External)
- Grade 420
SKU: A0100562
On Sale

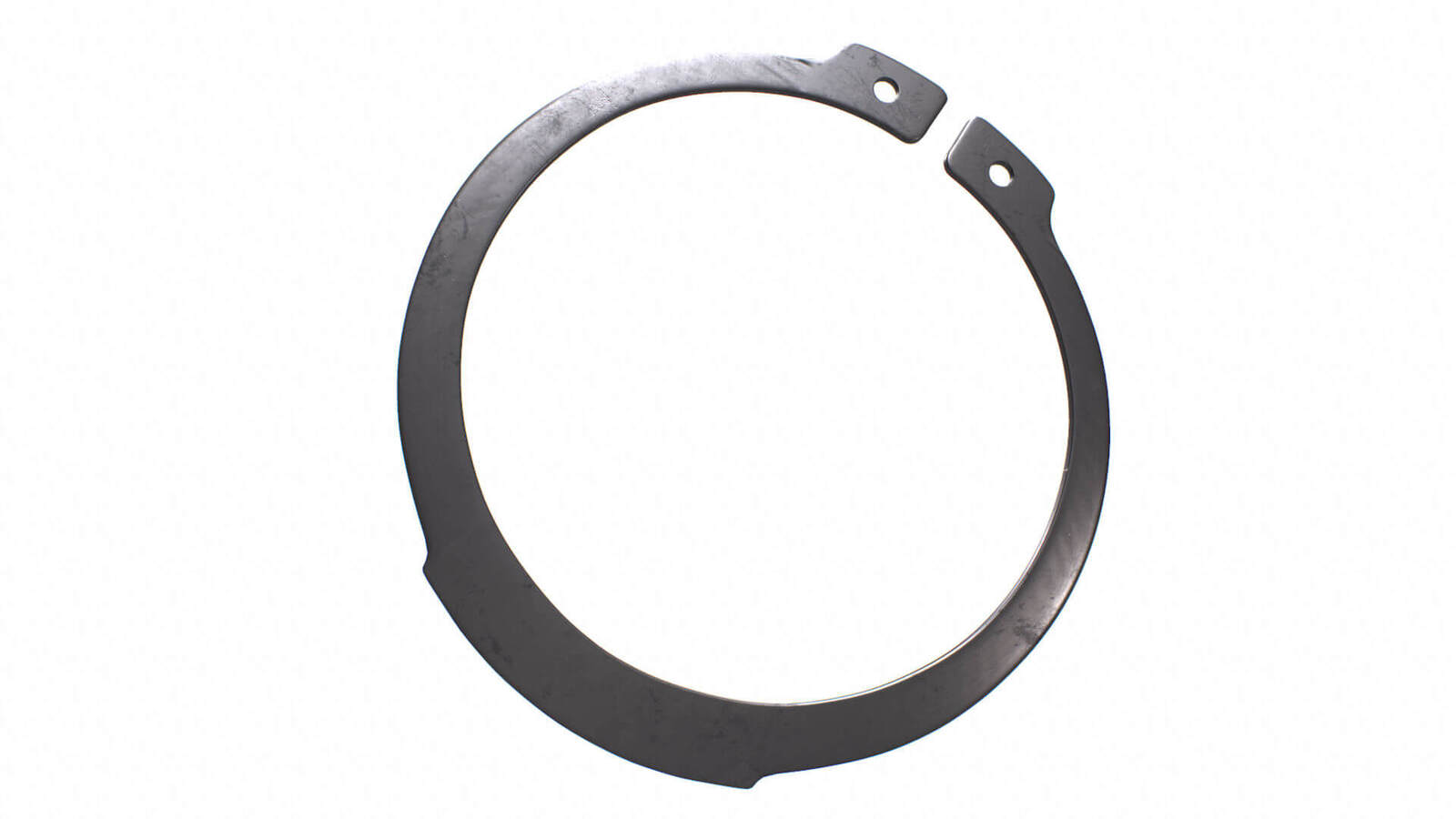

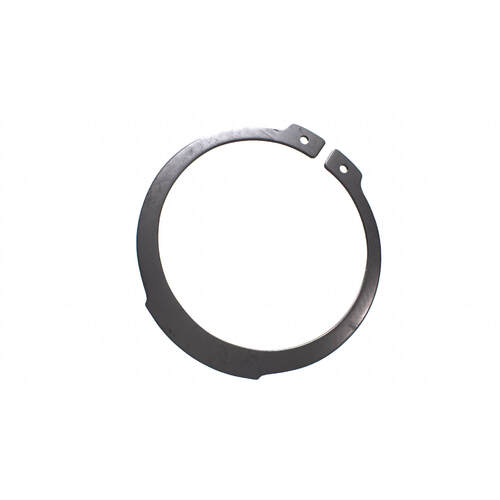

Circlip External Stainless Steel 28mm - Pack of 5
Circlip External
$6.20
Sale Ends in
