Specifications

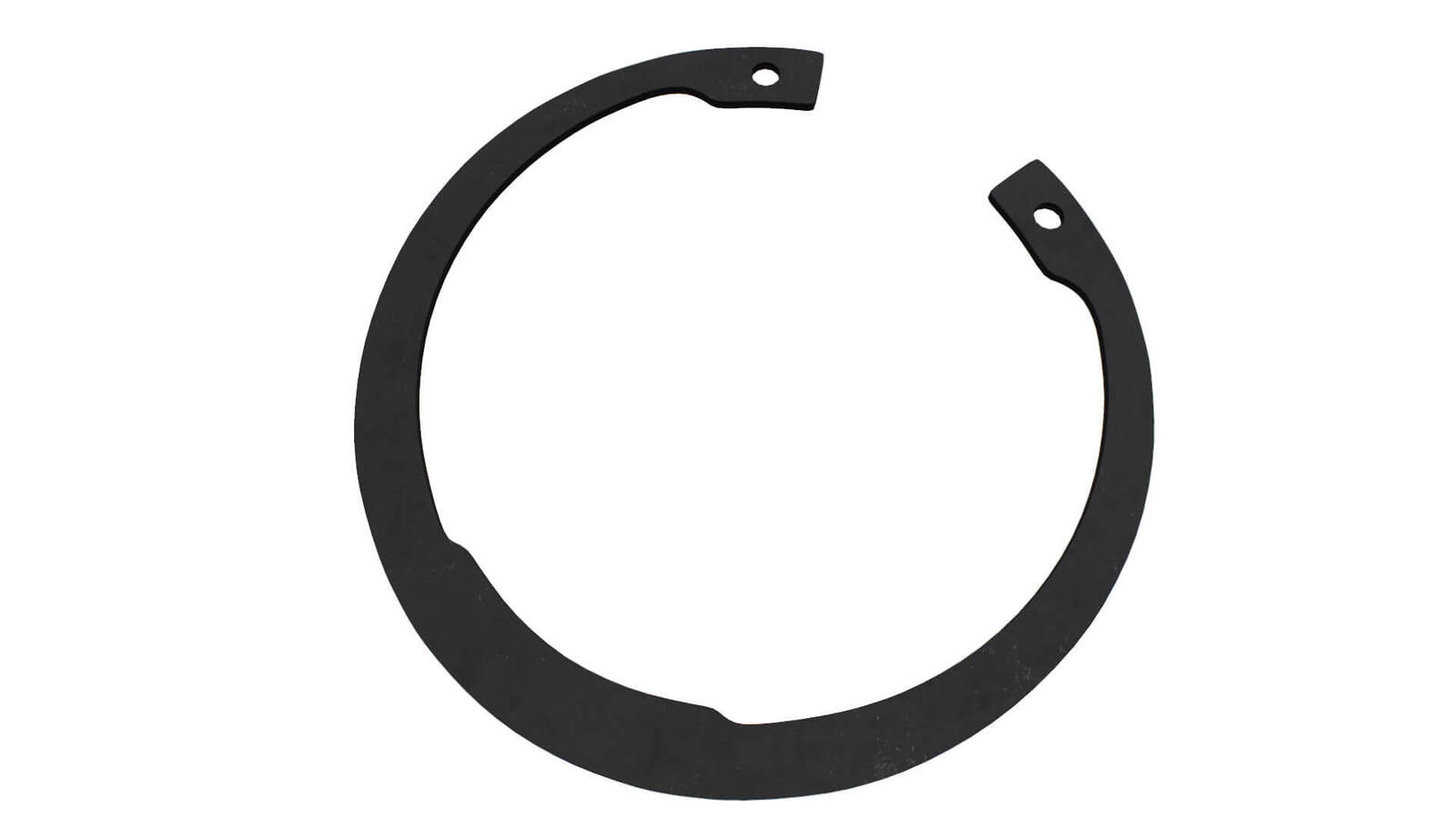

AIMS SKU A0100346
Bore Diameter (D) mm 61
Groove Diameter (G) mm 64
Tolerance (G) (+)0.30, (-)0.00
Groove Width (W) mm 2.15
Tolerance (W) (+)0.14, (-)0.00
Shoulder Length (n) mm 4.5
Radial Depth Of Groove (d ~) 0
Thickness (t) mm 2
Tolerance (t) (+)0.00,(-)0.07
Unstressed Diameter (D) mm 65.2
Tolerance (D) (+)1.10, (-)0.46
Circlip In Bore ( C ) mm 45.7
Circlip In Groove (C1) mm 49.4
Lug Max (Lmax) mm 7.3
Beam Dimension (b) mm 5.4
Lug Hole (h min) mm 2.5
• Type Internal Circlips
• Item Type (Internal/External)
