Specifications

AIMS SKU A0100295

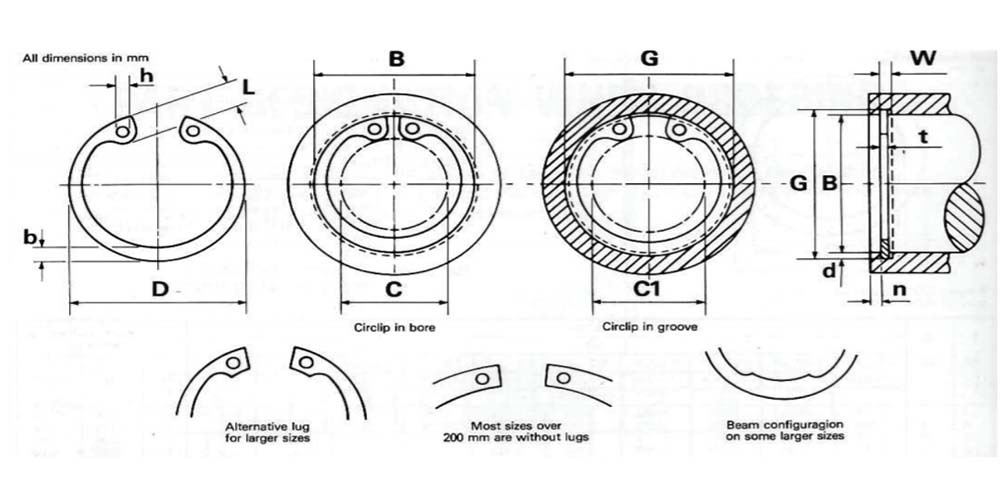

Bore Diameter (D) mm 8
Groove Diameter (G) mm 8.4
Tolerance (G) (+)0.09, (-)0.00
Groove Width (W) mm 0.9
Tolerance (W) (+)0.14, (-)0.00
Shoulder Length (n) mm 0.6
Radial Depth Of Groove (d ~) 0.2
Thickness (t) mm 0.8
Unstressed Diameter (D) mm 8.7
Tolerance (D) (+)0.36, (-)0.10
Circlip In Bore ( C ) mm 3
Circlip In Groove (C1) mm 3.6
Lug Max (Lmax) mm 2.4
Beam Dimension (b) mm 1.1
Lug Hole (h min) mm 1

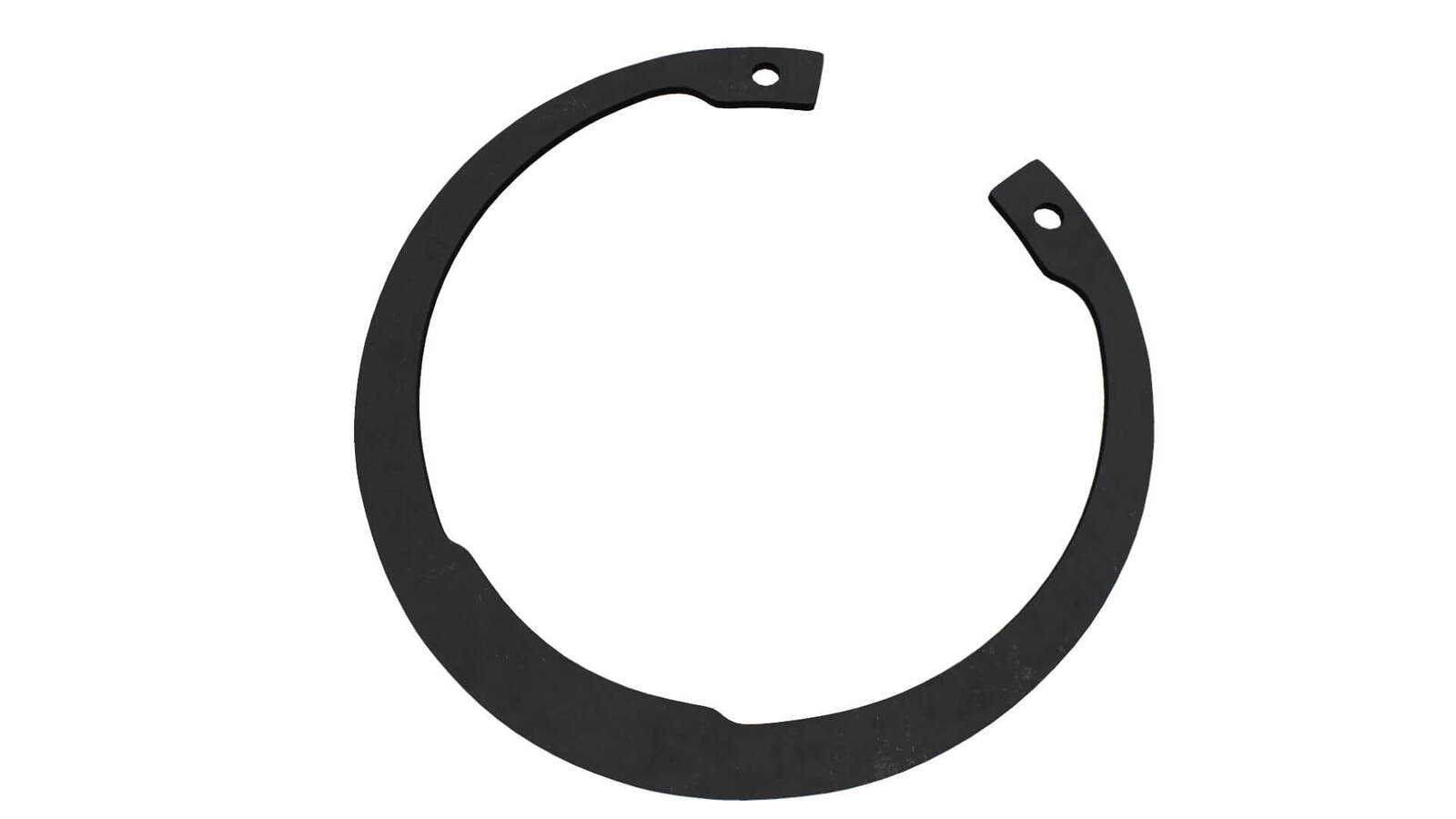

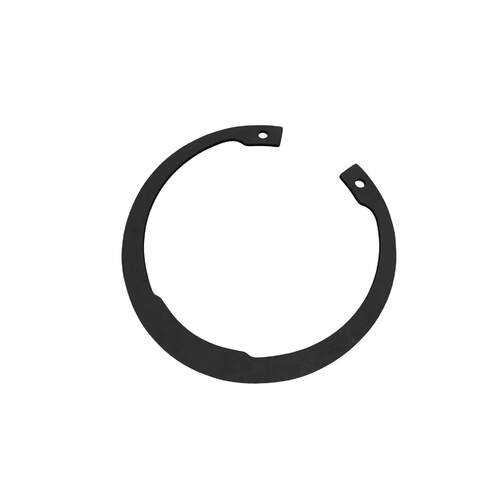

• Type Internal Circlips
• Item Type (Internal/External)
