Specifications

AIMS SKU A0100531

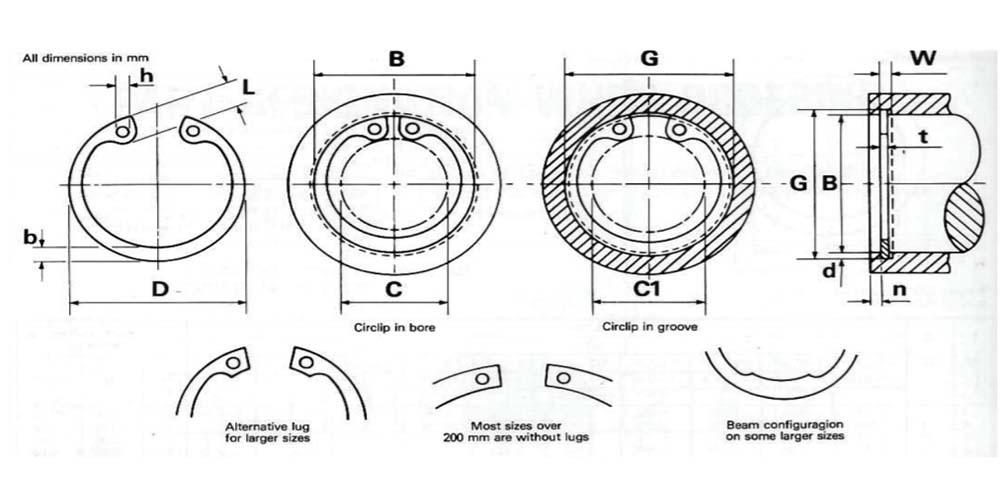

Bore Diameter (D) mm 42
Groove Diameter (G) mm 44.5
Tolerance (G) (+)0.25, (-)0.00
Groove Width (W) mm 1.85
Tolerance (W) (+)0.14, (-)0.00
Shoulder Length (n) mm 0.8
Radial Depth Of Groove (d ~) 1.25
Thickness (t) mm 1.75
Tolerance (t) (+)0.00, (-)0.06
Unstressed Diameter (D) mm 45.5
Tolerance (D) (+)0.90, (-)0.39
Circlip In Bore ( C ) mm 29.6
Circlip In Groove (C1) mm 32.7
Lug Max (Lmax) mm 5.9
Beam Dimension (b) mm 4.1
Lug Hole (h min) mm 2.5

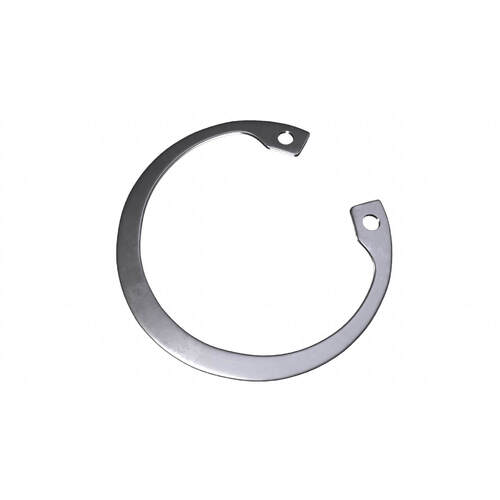

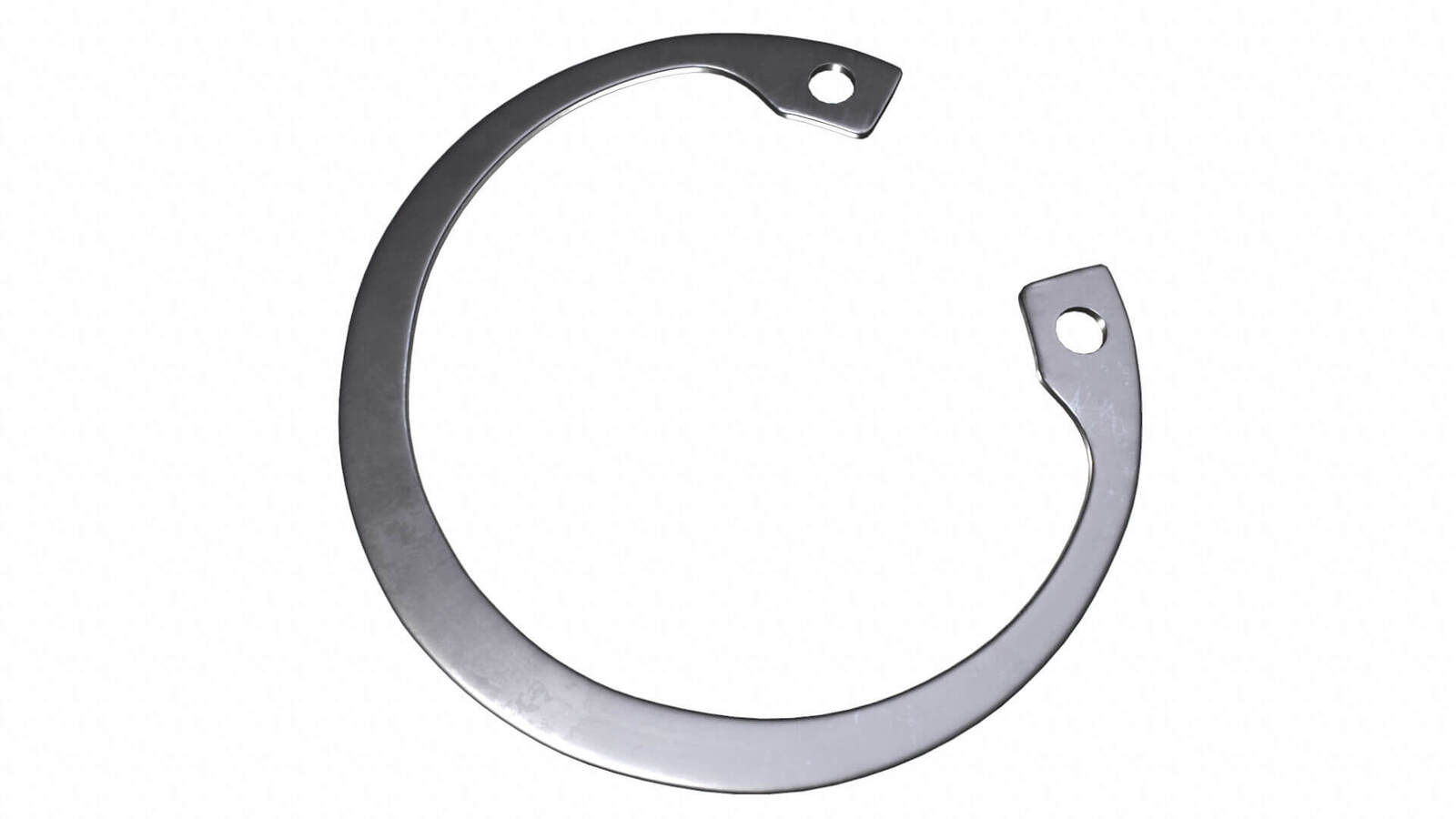

• Type Internal Circlips
• Item Type (Internal/External)
