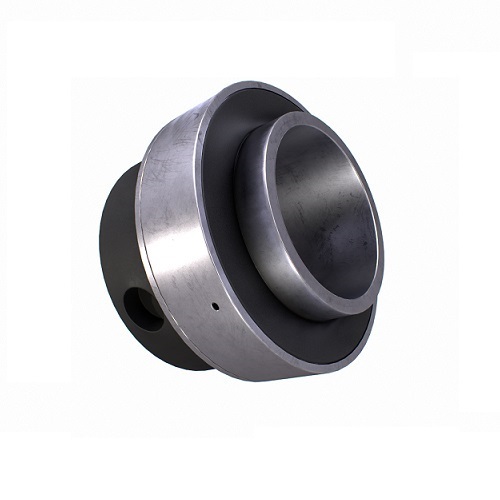

FYH Metric Ball Bearing Inserts NA200 Series

Description

***Catalogue dimensions are reference only. Contact AIMS to confirm actual measurement if a specific dimension is critical to your application.***

NA200 (UEL) Series Lock Collar WIR 2 Sides

Predominately used in farming and conveyor equipment for ease of application.
Regreasable spherical out side bearing with extended inner race and eccentric shaft locking collar.

Specifications

AIMS SKU A0104872

Brand FYH

Model Number NA204/FYH

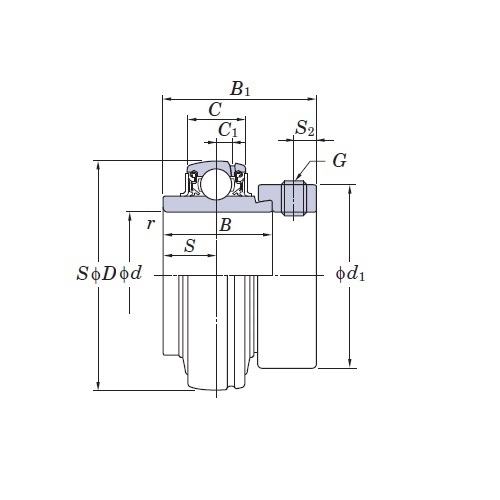

C (mm) 16

C1 (mm) 4

Dynamic Radial Load Rating 12.8

Static Radial Load Rating 6.65

r (min) mm 1

S (mm) 17.1

S2 (mm) 4.8

Shaft Diameter (d) mm 20

Nominal Bearing Bore (d1) mm 33.3

Nominal Bearing Outer (D) mm 47

Nominal Inner Ring Width (B) mm 34.2

Type Ball Bearing Inserts
System of Measurement Metric
Series NA200
Item Type Eccentric Ball Bearings

Calculate Shipping

Resources

Technical Data Sheet
