Description

***Catalogue dimensions are reference only. Contact AIMS to confirm actual measurement if a specific dimension is critical to your application.***

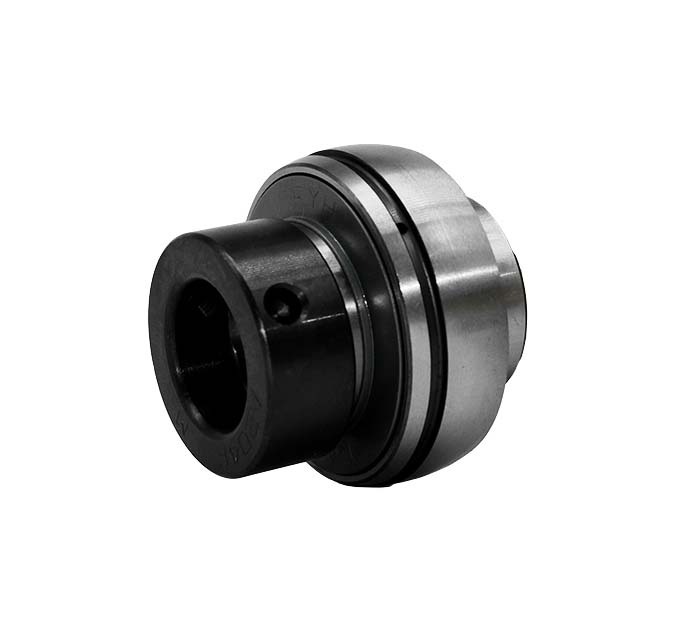

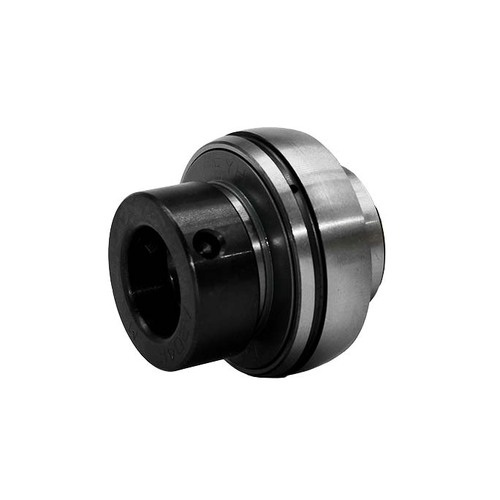

FYH Heavy Duty Ball Bearing Insert W/ Eccentric Collar NA300

  • NA300 Series.
  • Heavy Duty.
  • Wide Inner Ring Bearing W/ Eccentric Collar.

Specifications

  • AIMS SKU A0203758
  • Brand FYH
  • Model Number NA307/FYH
  • Dimension S (in) 0.72
  • Set Screw Brg. Bore - G (in) 1/2
  • Set Screw Brg. Bore - G (mm) M14
  • Dimensions (d1) in 1.93
  • Dimension (in) C 0.98
  • Dimension (in) B1 2.04
  • Dimension (mm) B1 51.76
  • Dimension (in) B 1.5
  • Dimension (in) D 3.15
  • Dimensions (D1) mm 49
  • Dimension (mm) D 80
  • Dimension (mm) B 38.1
  • Shaft Diameter (d) 35mm
  • Basic Load Rating C0r (kn) 19.3
  • Basic Load Rating Cr (kn) 33.4
  • Factor f0 13.2
  • Dimension (mm) C 25
  • Dimension S (mm) 18.3
  • Type Ball Bearing Inserts
  • Series NA300
SKU: A0203758

FYH Wide Inner Ring Ball Bearing Insert W/ Eccentric Collar 35mm - NA307

Heavy Duty Ball Bearing Insert W/ Eccentric Collar NA300

$106.38
