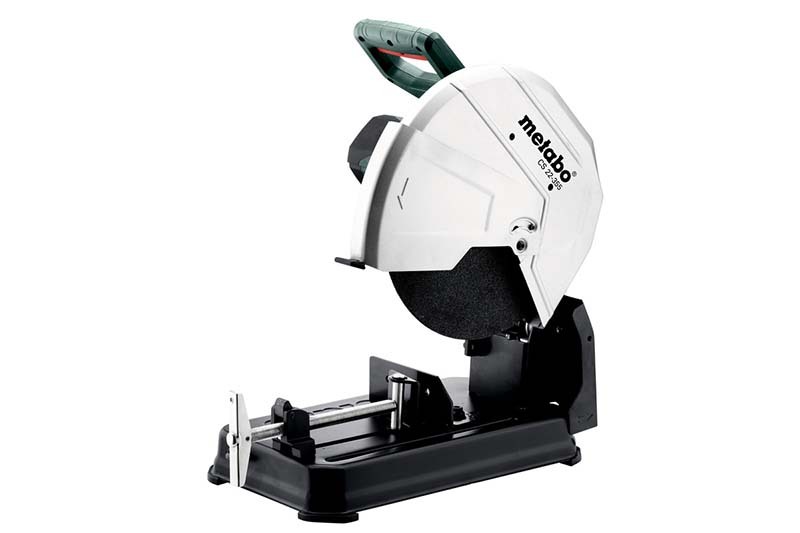

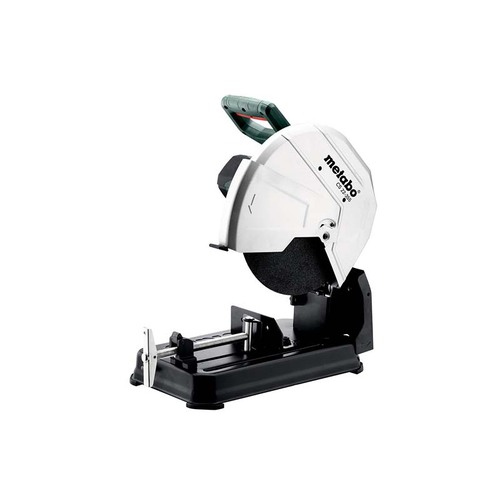

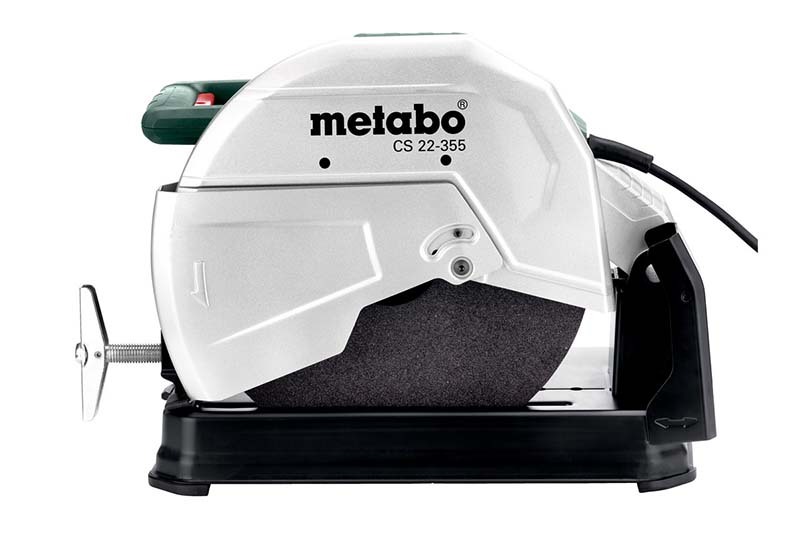

Metabo Metal Chop Saw - 601786190

Powerful metal chop saw for cutting of profiles, pipes and rods made of steel, NF metals, iron and cast profiles.
Quick clamping device with variable mitre setting for angled cuts from -15° to 45°.
Large handle transversal to the cutting axis for optimum power transmission while cutting.
Adjustable cutting depth limiter for optimum use of the cutting disc.
Easy, fast disc change with spindle lock.
Maximum user safety: swivelling cutting guard, adjustable spark deflector sheet and rubberised base for safe cutting.
Safety switch for protection against accidental start up.
Robust, large machine table with practical storage for hexagonal wrenches.
Easy to transport due to built-in handle and locking device.

Note

The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to the content and product description.
Accessories are included only if listed in the contents.

Contents

Characteristics

Grinding wheels (Ø x bore)	355 x 25.4 mm // 13 31/32 x 1 "
No-load speed	3700 rpm
Rated input power	2300 W
Max. cutting capacity round tube	132 mm / 5 3/16 "
Max. cutting capacity square tube	120 x 120 mm // 4 23/32 x 4 23/32 "
Max. cutting capacity rectangular tube	100 x 208 mm // 3 15/16 x 8 3/16 "
Max. cutting capacity L-profile	150 x 150 mm // 5 29/32 x 5 29/32 "
Dimensions of the base plate	456 x 256 mm // 17 15/16 x 10 1/16 "
Transport height	394 mm / 15 1/2 "
Weight	16.8 kg / 37 lbs
Cable length	4 m / 13 ft
