Hex Power Bit Quick Reference
Hex (Allen) power bits drive socket head cap screws and internal hex fasteners with impact drivers, drill drivers or screwdrivers — replacing manual Allen keys for power assembly work. Selection turns on bit format (insert vs power), size (matched to fastener), and durability (standard vs impact-rated).
| Bit Format | Application | Best For |
|---|---|---|
| Insert Bits (25 mm) | Use with magnetic bit holder or quick-change chuck | Workshop default — interchangeable in standard holder, lowest cost per bit |
| Power Bits (50-75 mm) | Direct hex shank — drops straight into driver chuck | Production work, high-volume fastener driving |
| Impact-Rated Bits | Heavy-duty alloy steel for impact driver use | Impact wrenches — NEVER use standard insert bits in impact drivers (they shatter) |
| Ball-End Bits | Allows up to 25° off-axis driving | Awkward-access fasteners, side-approach screwing |
| Long Bits (100-150 mm) | Extended reach into recessed pockets | Machine assembly, deep-hole fastener driving |
| Pin Hex (Tamper-Proof) | Centre pin requires matching tamper-proof bit | Security fastener removal — see security fasteners |
Sizes stocked: H1.5, H2, H2.5, H3, H4, H5, H6, H8, H10 metric. Imperial: 1/16" through 1/2". For Allen key sizes by socket cap screw, see our socket head cap screw guide. Companion ranges: screwdriver bits, hex keys / Allen keys, impact drivers.
Hex Power Bits for Impact Drivers & Drill Drivers
Hex (Allen) power bits drive socket head cap screws and other internal hex fasteners using a power tool — impact driver, drill driver or screwdriver — rather than a manual Allen key. They convert the hex socket fastener into a fast power-driven operation, which is essential when assembling large numbers of machine screws, deck-board fasteners, equipment frames or any fastener-intensive build. For socket head cap screw selection, head types, grades and torque values, see the Socket Head Cap Screw Guide.
Insert bits vs power bits — what's the difference

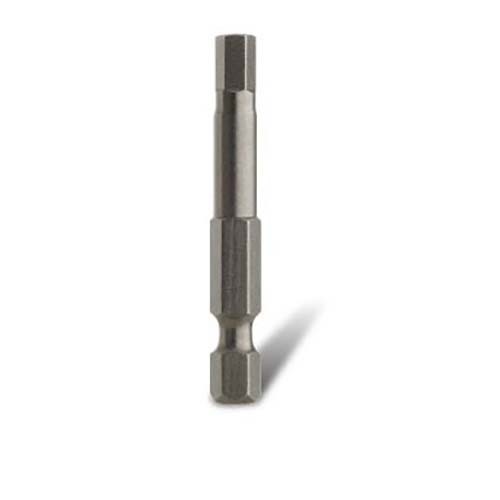

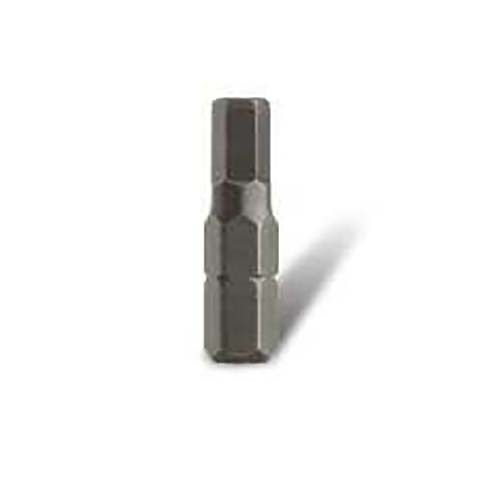

Insert bits are short bits (25 mm) designed to fit into a separate bit holder. Power bits are longer (50–150 mm) with the bit and shank as one piece, designed for direct chuck or impact-driver collet fitment. Power bits are stiffer in extension and don't suffer the runout that a poorly-fitted insert bit can develop. For fastening at depth (deep counterbores, recessed pockets) longer power bits give the reach a standard insert bit cannot.
Standard hex vs ball-end hex
Standard hex bits engage the fastener squarely and transmit full torque — used for installation and removal at correct alignment. Ball-end hex bits have a spherical tip that allows the bit to engage the fastener at angles up to ~30° off-axis — useful for fasteners in awkward positions where the driver can't sit square. Ball-end bits transmit less torque (typically 75-85% of standard hex) so use them for access rather than maximum torque applications.

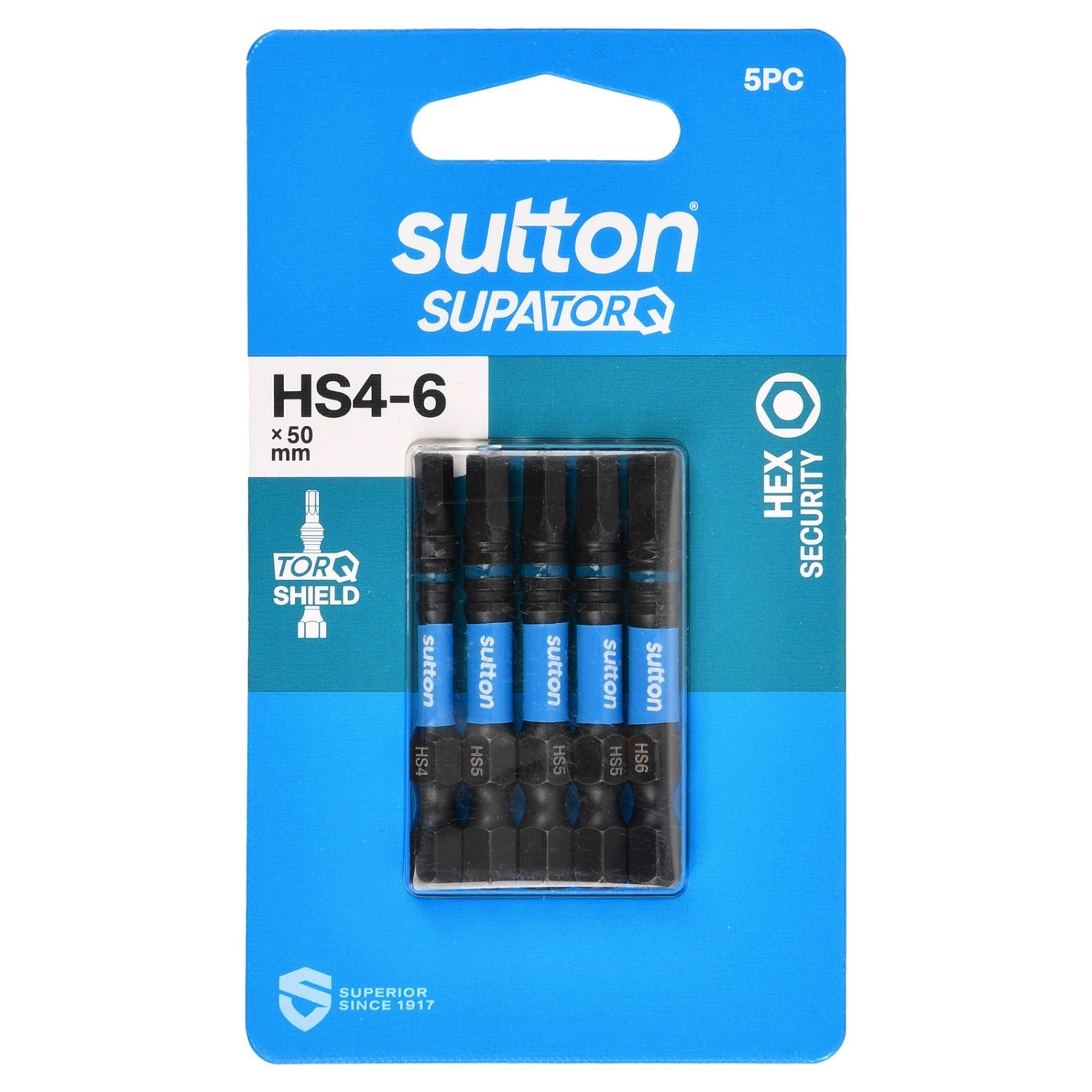

Tamper-resistant (security) hex bits
Some hex fasteners use a centre-pin in the socket to defeat standard hex bits — these "security hex" or "pin-in-hex" fasteners are common on machine guards, restroom hardware and public-facing installations. AIMS stocks security hex bits with the centre hole that engages over the fastener pin, allowing legitimate maintenance access.
Sizing and brands
The hex power bit range covers metric sizes (M3–M19) and imperial sizes (1/8"–3/4") in 1/4" hex drive standard. Brands include Alpha, Bordo, Wiha, Sutton, Bondhus and Hobson — across general-trade and industrial-grade specifications. See related screwdriver bits for Phillips, Torx, square and other drive types, or impact drivers for the tool to drive them with.
People Also Ask — Hex Power Bits
Q: What's the difference between insert bits and power bits?
Insert bits are short (typically 25mm) and designed to fit into a magnetic or quick-change bit holder — used with impact drivers and screw guns for high-volume driving. Power bits are longer (50mm to 150mm+) and have an integral hex shank that fits directly into the drill or driver chuck — used where the bit needs to reach into recesses, through bushes, or where bit-holder slop affects precision.
Q: How do I choose between regular and impact-rated bits?
Impact-rated bits are specifically designed to handle the torsional shock of impact drivers — they have a torsion zone or alloy steel composition that flexes under impact rather than fracturing. Standard bits can shatter under impact driver use, sending fragments flying. For any use with impact drivers (cordless drivers, air-impact wrenches), specify impact-rated bits — the cost difference is small compared to the safety and tool-life benefit.
Q: What's the right bit for stainless steel screws?
Stainless steel screws need a precisely-fitting bit to avoid cam-out (slipping out of the drive). Use bits with tight tolerance — Torx and square drive perform best, Phillips and slotted are more prone to cam-out under torque. For high-volume stainless work, ACR (Anti-Cam-Out Ribs) Phillips bits and PSD (Pozisquare Drive) bits reduce cam-out. Match the bit size exactly to the screw head — undersized bits round off the screw recess.
Q: Why do my driver bits wear out so fast?
Common causes: wrong bit size for the screw head (always match exactly), cam-out from off-axis driving (keep the bit perpendicular to the screw), excessive torque on the wrong recess style (Phillips cams out by design — use Torx for high torque), non-impact bits used in impact drivers, or low-quality bits that don't have proper alloy heat treatment. Quality impact-rated bits last 5-10× longer than cheap bits in production use.
Q: What hex bit sizes should be in my workshop kit?
Standard workshop kit covers: Phillips PH1, PH2, PH3 (PH2 sees the most use), slotted 4mm/5mm/6mm, square drive R1/R2/R3 (R2 most common), Torx T15/T20/T25/T30/T40, and a hex set in metric and imperial sizes. Add Robertson and security bits if your work calls for them. Premium impact-rated kits in zip-up cases keep bits organised and protected — a worthwhile investment for daily-driver workshop use.
