Lathe Tool Post + Holder Selection — Quick Reference
Lathe toolpost + tool holder system = DETERMINES how quickly + accurately turning tools can be CHANGED + set to centre height + tightened. Quick-change vs traditional 4-way affects production speed dramatically.
| Tool Post Type | Best For |
|---|---|
| Quick-Change (QCTP) Wedge / Piston | Workshop standard — fastest tool change |
| 4-Way Tool Post (Square Turret) | Traditional + 4 tools mounted |
| Block / Open Tool Post | Simple + lower cost |
| Tool Holder (Square Shank) | HSS lathe tool + general turning |
| Indexable Tool Holder | Carbide insert turning — see indexable turning |
| Boring Bar Holder | Internal turning |
| Threading Tool Holder | See threading inserts |
| Cut-Off / Parting Holder | Sever workpiece |
| Knurling Tool Holder | See knurling tools |
Critical: Match TOOL POST SIZE to lathe + tool shank. QCTP = workshop production standard. Setup centre-height precisely — too high/low = poor cut + tool breakage. Brands: Seco, Maxigear. Companion: lathe tool bits, indexable turning, machining.
Lathe Tool Posts & Holders
The toolpost and tool holder system on a lathe determines how quickly and accurately turning tools can be changed, set to centre height, and positioned for the operation. AIMS Industrial supplies quick-change toolpost systems, tool holders, and boring bar holders for manual engine lathes and turret lathes used in Australian engineering workshops and toolrooms.
Quick-Change Toolpost Systems
A quick-change toolpost (QCTP) replaces the standard four-way toolpost with a system where individual tool holders lock to the toolpost body via a cam or wedge mechanism. Each holder is pre-set to centre height using its own adjustment, so tool changes are made without re-indicating height for each new tool. In a workshop where multiple operations are performed on a single part — turning, facing, threading, grooving — a quick-change system eliminates the time spent resetting tool height on each change and significantly reduces the risk of centre-height error affecting the finish of the cut. QCTP systems use standardised holder footprints so that holders from the same series are interchangeable on the same toolpost body.
Tool Holder Types for the Lathe

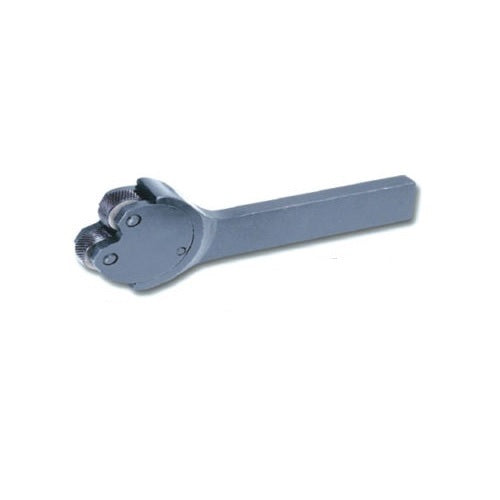

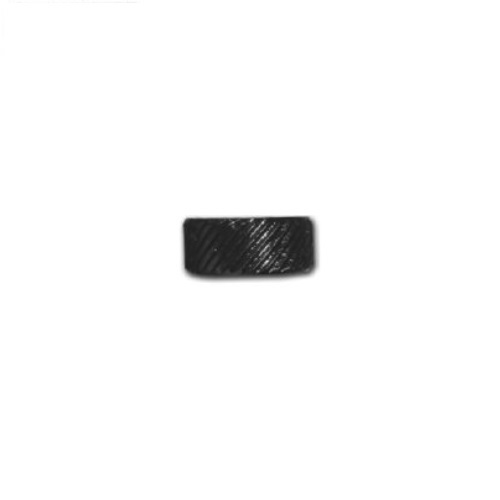

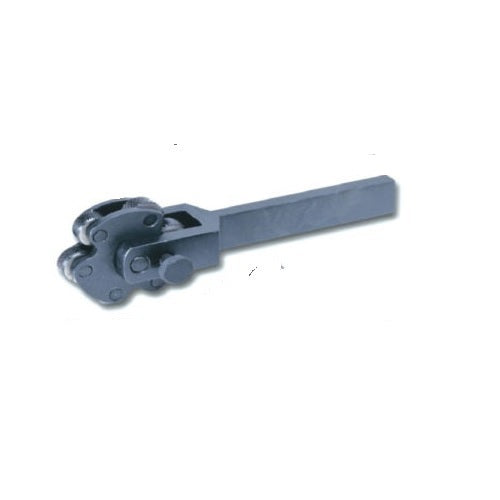

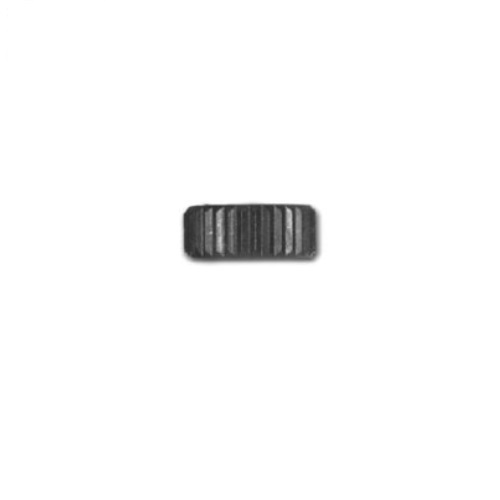

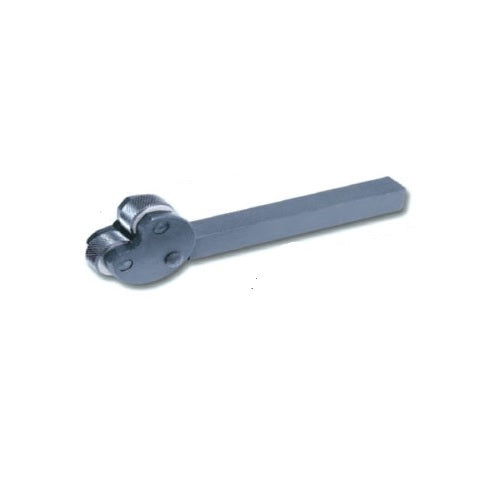

Standard turning and facing holders grip the shank of a HSS or carbide tool bit and present it to the workpiece at the correct side rake angle. Parting and grooving holders clamp parting blades securely under the significant downward cutting forces that parting operations generate. Boring bar holders accept round-shank boring bars for internal diameter work — the holder clamps the bar at the correct height and axial alignment for the bore. Knurling tool holders position the knurling wheels at the correct height and provide the rigidity needed to produce a clean knurl pattern without chatter. Threading tool holders present threading inserts at the zero-degree neutral position required for forming consistent thread form without lead angle errors.
Boring Bar Holders
Internal boring on a lathe requires a boring bar of sufficient diameter to resist deflection over the unsupported bar length. Boring bar holders must clamp the bar securely without slipping under the cutting forces, and must locate it accurately at lathe centre height. Anti-vibration boring bars with internal damping are available for long overhangs where chatter would otherwise limit cutting depth and surface finish. Noga boring and deburring tools provide precision internal work capability for workshop and toolroom applications. Correct selection of bar diameter relative to bore diameter and depth is the most important factor in achieving good surface finish and dimensional accuracy in bored holes.
Centre Height and Toolpost Sizing
Toolpost size must match the lathe's centre height — the distance from the bed to the spindle centreline determines the maximum holder height the system can accommodate. Quick-change toolpost systems are designated by size (A0, A1, A2 and larger equivalents) corresponding to the centre height range they suit. Using an undersized toolpost on a larger lathe creates stability and height-setting problems; oversizing is less critical but wastes rigidity and clearance. Before purchasing a toolpost or holder system, confirm the lathe's centre height and verify the toolpost series is rated for that size machine.
For toolpost sizing advice, holder specifications, or help matching a QCTP system to your lathe, contact our team at AIMS Industrial.
