Thread Measuring Gauges

Thread Measuring Gauges for Australian Engineering and Toolroom Inspection

Thread measuring gauges verify the dimensional accuracy and class of internal and external threads — providing the go/no-go inspection that production engineering and quality control require. Where vernier and digital calipers measure outside dimensions, thread measuring gauges specifically verify thread fit, pitch, and dimensional class. For Australian toolroom, production engineering, and inspection work, thread gauges are essential. AIMS Industrial supplies thread measuring gauges in the formats and standards Australian trade and industrial customers actually use.

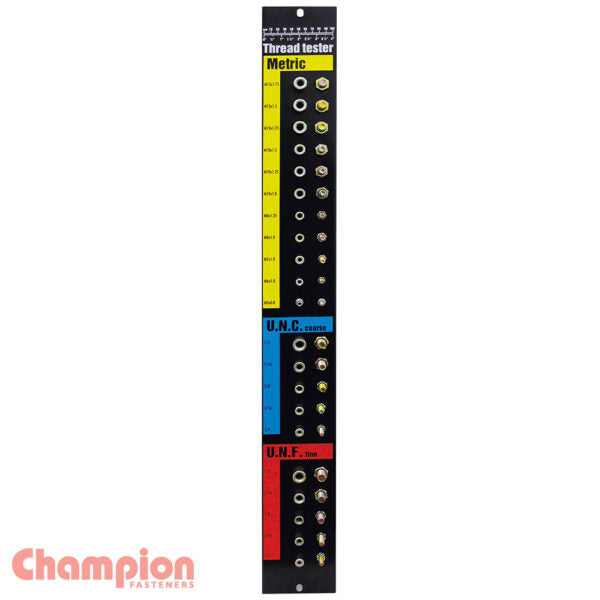

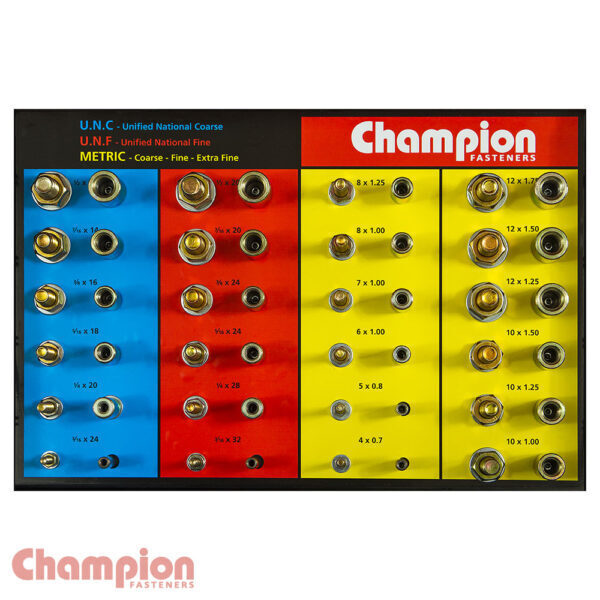

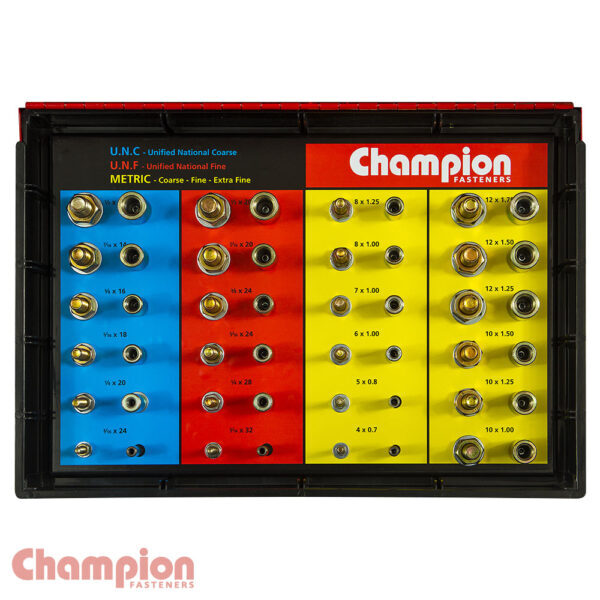

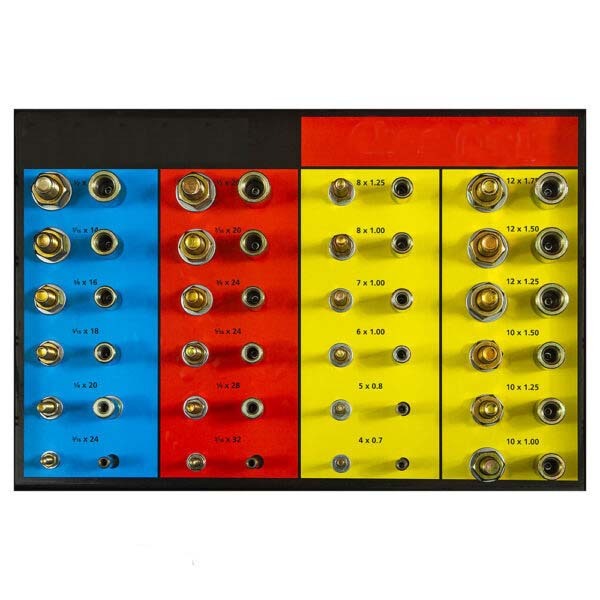

The thread gauge types we stock

• Thread plug gauges (go/no-go) — male thread gauges for verifying internal threads (tapped holes); the "go" end should screw in, the "no-go" end shouldn't
• Thread ring gauges (go/no-go) — female thread gauges for verifying external threads (bolts, studs); the "go" gauge should screw on, the "no-go" shouldn't
• Pitch gauges — leaf gauges for identifying thread pitch (covered separately in our screw pitch gauges range)
• Setting plugs — for calibrating thread ring gauges
• Specialty thread gauges — for pipe threads, acme threads, and non-standard forms

How go/no-go gauges work

Thread plug and ring gauges come as matched pairs: a "go" gauge that should engage the thread (verifying the thread is large enough at minor diameter and within pitch tolerance), and a "no-go" gauge that should NOT engage past the first few threads (verifying the thread isn't oversized at major diameter or pitch). A thread that accepts the "go" gauge but rejects the "no-go" gauge is within tolerance; a thread that rejects both gauges is undersized; a thread that accepts both is oversized. The two-gauge inspection bracket eliminates measurement uncertainty and provides clear pass/fail.

Where thread gauges earn their place

• Production thread inspection — verifying threaded components meet specification on production lines
• Toolroom and quality control — verifying tool and fixture threads
• Incoming inspection — verifying threaded components from suppliers meet specification
• Aerospace and critical applications — where thread fit must be verified to specific class
• Manufacturing audits — periodic verification of production thread quality

Thread classes — fit specifications

Threads come in fit classes specifying how tightly the male and female threads engage:

• Class 6H/6g (medium fit) — the everyday standard for general engineering threads
• Class 5H/5g (close fit) — for tighter tolerance applications (less common in general work)
• Class 7H/7g (loose fit) — for galvanised, plated, or coated threads where additional clearance is needed

Thread gauges are made for specific classes — match the gauge class to the thread specification on the drawing or component.

Sizing

Thread plug and ring gauges are stocked in metric (M3 through M30) and imperial (UNF, UNC, BSW) sizes across the common thread standards. For pipe threads, BSPT/NPT gauges are specialty items typically sourced on order. For specialty thread forms (acme, trapezoidal), gauges are typically custom-made for the specific thread.

Calibration

Thread gauges are precision instruments that require periodic calibration to maintain accuracy. For traceable inspection workplaces, gauges should be calibrated annually against certified setting plugs and within a quality management system. Mitutoyo and other premium gauge manufacturers supply calibration services and certified gauges for traceable inspection use.

Brands stocked at AIMS

Mitutoyo covers the precision thread gauge range for traceable inspection use. Other approved manufacturers cover the broader trade and production gauge range. For specific gauge classes, certified gauges with calibration certificates, or specialty thread forms, sourcing through our distribution channels covers most requirements.

Care and life

Thread gauges are precision components. Store in their original cases or proper roll storage; keep clean and lightly oiled to prevent rust. Inspect for visible thread wear before relying on the readings — worn gauges give false-pass readings on threads that should fail inspection. Replace damaged or worn gauges rather than continuing in service.

Companion ranges at AIMS

Thread measuring gauges sit alongside our broader inspection tool range — see measuring tools, screw pitch gauges, radius gauges, and telescopic gauges for the related products.

Need help speccing thread gauges for production inspection or toolroom use? contact our team — we'll match by thread standard, class, and accuracy requirement.
