TechTop Electric Motors
AIMS Industrial is a stocking distributor of TechTop electric motors for industrial and commercial applications. TechTop manufactures IE2 and IE3 energy-efficient AC induction motors that meet Australian and international efficiency standards, backed by a comprehensive range of frame sizes, mounting configurations and voltage options.
Single Phase Motors (240V)
The TML aluminium single phase motor range covers general purpose applications operating on standard 240V single phase supply. TML Dual Voltage motors provide flexibility for sites with varying supply requirements. The TMY series covers capacitor-start capacitor-run configurations for applications requiring higher starting torque, such as compressors and pumps. Aluminium frames provide a lightweight, corrosion-resistant solution for a wide range of environments.
Three Phase Motors (415V)

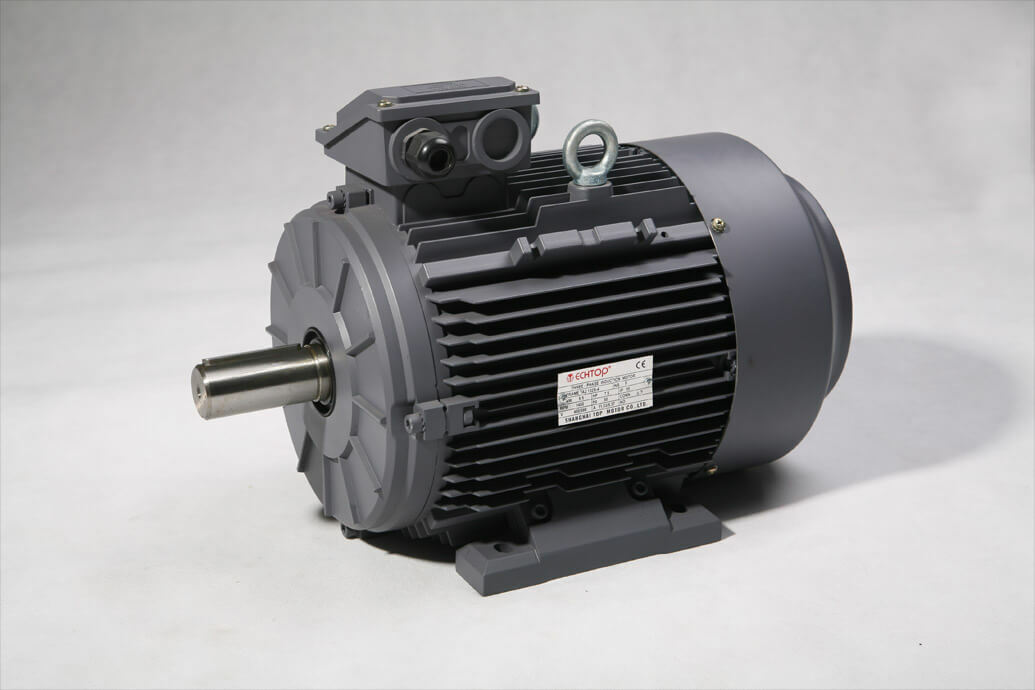

TechTop 415V three phase motors are available in aluminium frame (TAI) and cast iron frame (TCI) construction. Aluminium frame motors are the standard choice for most industrial applications, offering a good balance of weight, thermal performance and corrosion resistance. Cast iron frames are selected for demanding environments with heavy vibration, higher ambient temperatures or where greater mechanical robustness is required. 2, 4 and 6 pole configurations cover synchronous speeds from 3000 to 1000 RPM. B3 foot mount and B5 flange mount options are stocked.
Brake Motors
TAI-BHR brake motor variants integrate a spring-applied, electrically-released brake for applications requiring controlled stopping or holding under load — conveyors, hoists, positioning drives and similar equipment where inertial run-on is unacceptable.
Motor Selection
Key selection parameters are output kW, supply voltage, pole number (speed), frame size and mounting configuration. IE3 efficiency class motors are increasingly specified for new installations to meet energy efficiency requirements. Contact our team for assistance with motor selection, cross-referencing or replacement of an existing unit.
