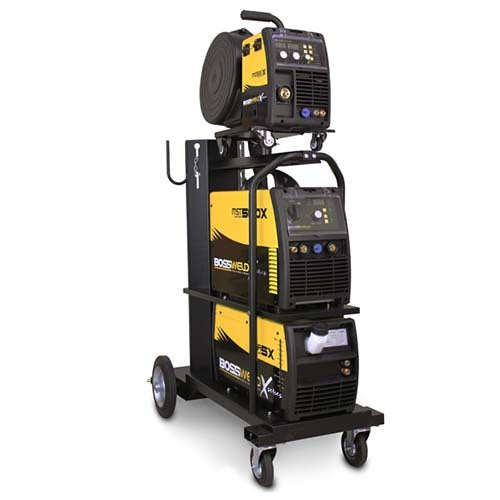

Bossweld MST 500X MIG Stick TIG 3 in 1 Inverter Welder 415 V | 699500

The Bossweld MST 500X is a high-capacity, three-phase (415 V) industrial multi-process inverter welder with integrated water cooling. It does synergic MIG, Stick and DC TIG with a 500 A output, for heavy-duty fabrication on thick material.

It is supplied as a package with the Mobile X separate wire feeder, a 415 V water cooler, a machine trolley and 10 m interconnection cables. It runs gas or gasless MIG wire.

Where this product is used

• Heavy-duty fabrication on thick material
• Continuous high-amperage welding
• Stick, TIG and MIG work from one machine

Features

• 500 A MIG, Stick and TIG welder
• Integrated water cooling with a 415 V water cooler supplied
• Separate Mobile X wire feeder with 10 m interconnecting cable
• 4 roll wire drive system
• Synergic control with digital LED display
• Gas or gasless MIG operation
• 2T and 4T trigger latching
• Suits D200 and D300 spools

What is in the box

• MST 500X inverter welder
• Mobile X wire feeder
• Bossweld water cooler, 415 V
• Machine trolley
• Interconnection cables, 10 m
• Ergon BZ501 MIG torch, 4 m
• Earth clamp, 5 m
• Gas hose, 2 m
• Bossweld twin gauge regulator
• Drive roller, 0.8/1.0 mm V groove, 30 x 10 x 12 mm (fitted)
• Drive roller, 1.0/1.2 mm V groove, 30 x 10 x 12 mm (spare)
• Operator manual

Key specifications

Selecting the right option

This machine needs a 415 V three-phase supply. The primary plug is not fitted, and it must be fitted by a licensed electrician. Check the input supply, the output you need and the processes you weld with before you choose. If you are unsure which machine suits your work, contact AIMS with the materials, thicknesses and power supply you have.
