EasyRoll Dual Purpose Adaptor Plate (Nut Insert) - 110 x 145 mm | PLT1
Out of stock

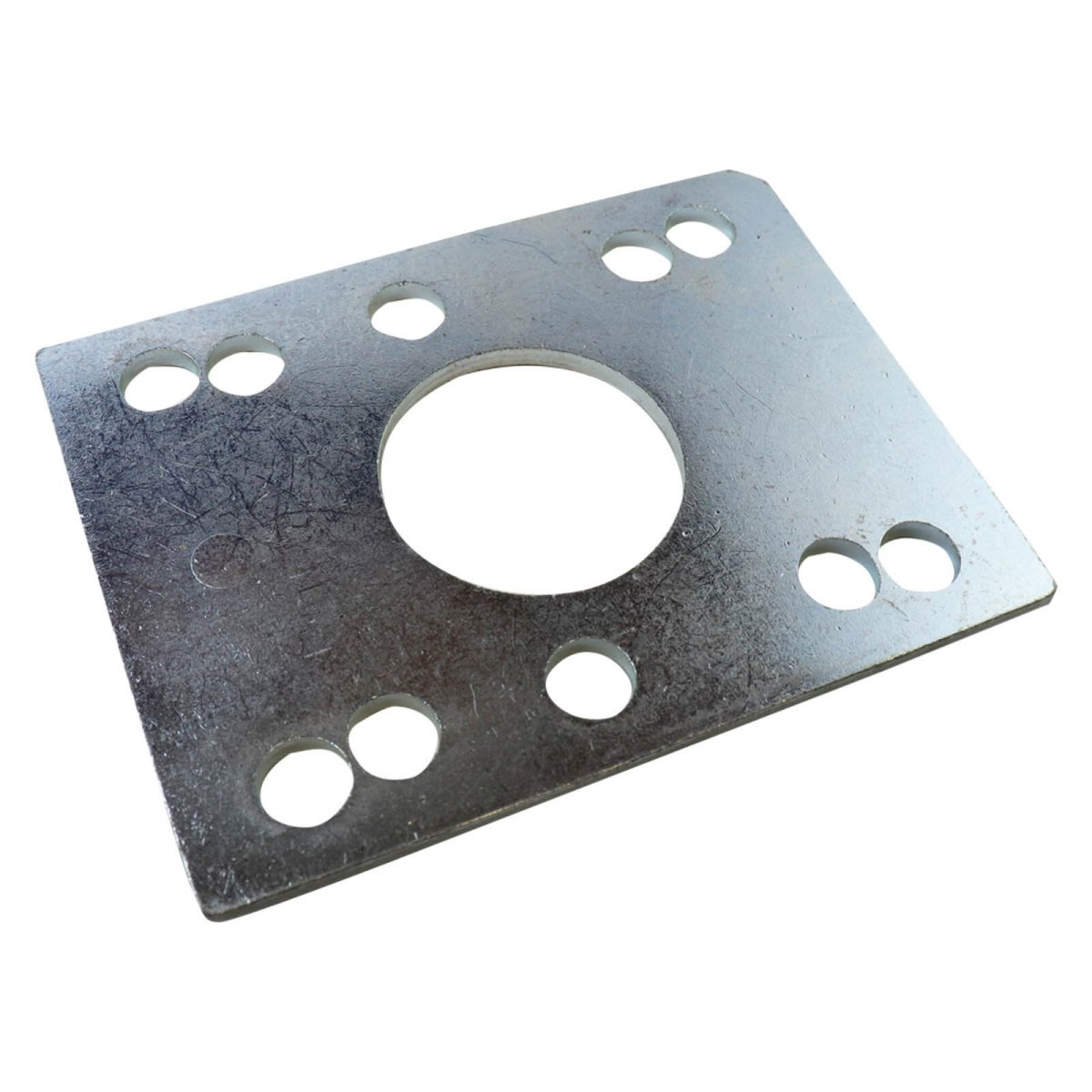

The EasyRoll dual purpose plate is a zinc plated pressed steel adaptor plate, 110 x 145 mm, listed by AIMS as an adaptor plate to fit odd size castors. It is 4.5 mm thick and has three hole centre patterns: 76 x 76 mm, 105 x 80 mm and 80 x 60 mm.
This part is not in the EHI catalogue, so the details here come from AIMS product data. Check the hole centres of your castor and your equipment against the three patterns before ordering.
Where this product is used
- Fitting a castor with a different plate size to existing mounting holes
- Upgrading or replacing castors on equipment with odd mounting patterns
- Workshop and maintenance fitting
Features
- 110 x 145 mm plate (AIMS data)
- Hole centres 76 x 76 mm, 105 x 80 mm and 80 x 60 mm (AIMS data)
- Zinc plated pressed steel, 4.5 mm thick (AIMS data)
- Adaptor plate for odd size castors (AIMS data)
Key specifications
| Specification | Detail |
|---|---|
| Brand | EasyRoll |
| Type | Adaptor plate (nut insert) |
| Plate size | 110 x 145 mm |
| Thickness | 4.5 mm |
| Hole centres | 76 x 76 mm, 105 x 80 mm and 80 x 60 mm |
| Material | Zinc plated pressed steel |
| Part number | PLT1 |
Selecting the right option
Lay the plate against your castor plate and your mounting surface and confirm that one of the three hole patterns lines up with each. Supply your own fixings. If you are unsure what suits your equipment, contact AIMS with the castor or wheel part number and how the equipment is used.
Related products
See also EasyRoll Expanding Adaptor - Square Tube, 22 mm, M12 Bolt, EasyRoll Expander Bolt, M10 and M12 x 75 mm and EasyRoll Reducing Bush, 12 x 10 x 12 mm (M12 to M10).
