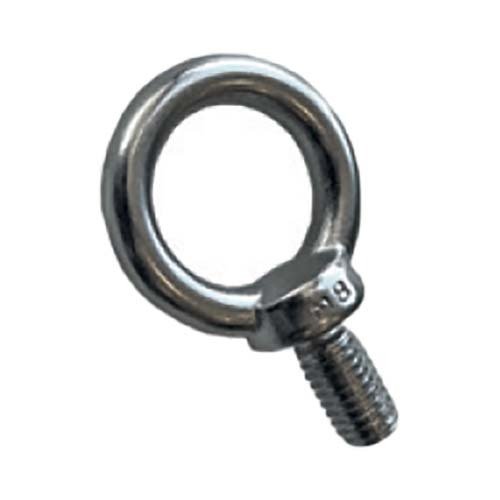

M8 x Standard JIS Collared Eye Bolt, 316 Stainless Steel - EBJA4M8

Made in 316 (A4) stainless steel, the JIS Collared Eye Bolt is a threaded bolt with a closed eye and a collar, made to a JIS style (Japanese Industrial Standard) dimension.

The range runs to 15 variants, covering sizes M6 to M24 and lengths Standard to 120 mm. Variants are supplied in packs of 2 to 10, depending on size.

Made from 316 (A4) stainless steel, the grade normally specified for chloride-exposed work such as coastal installations, swimming pools, marine fittings and food-processing plant. Metric sizes are written M followed by the nominal thread diameter in millimetres, so M10 is a 10 mm thread.

Stainless threads can gall (seize) when tightened under load or at speed. A smear of anti-seize on the thread and a steady tightening speed reduce the risk.

Where this product is used

• Tie-off and hanging points on equipment
• Small sizes for enclosures, instruments and light fittings
• Light fixings that need an eye
• Chemical and washdown areas
• Rope, wire and cable attachment points
• Architectural work near the coast

Features

• Closed eye for rope, wire or shackles
• Metric thread sizes match the nuts, bolts and tapped holes in most Australian-supplied equipment
• A4 (316) stainless steel with molybdenum, for coastal and chloride-exposed settings
• Threaded shank screws into a tapped hole or takes a nut
• Supplied in packs of 2 to 10
• Lengths from Standard to 120 mm

Key specifications

Selecting the right option

Choose the size by the thread and length shown on the variant. Do not use an eye bolt for lifting unless the supplier states a rating and the bolt is marked with a working load limit (WLL). Eye bolts are rated for a straight pull in line with the shank, and the rating drops sharply for angled loads. For lifting, use a rated lifting product and a qualified rigger.

Important

This product is not stated as lifting rated in the supplier data. Do not use it to lift or suspend people or loads unless it is marked with a working load limit (WLL). Rigging and lifting hardware should be selected, inspected and used in line with your site procedures and the relevant Australian Standards, and a qualified rigger should be consulted for any lift.
