Loctite 609 Cylindrical Bonding Retaining Compound1
Loctite 609 Cylindrical Bonding Retaining Compound 10ml
Loctite 609 Cylindrical Bonding Retaining Compound 50ml
Loctite 609 Cylindrical Bonding Retaining Compound1
Loctite 609 Cylindrical Bonding Retaining Compound 10ml
Loctite 609 Cylindrical Bonding Retaining Compound 50ml
Save 15%

Loctite 609 Cylindrical Bonding Retaining | AIMS Industrial

$15.46
$15.46 $18.19
Inc. GST

Available

◆ Locks bushings, sleeves and rotors in place so they cannot fret or shift
● Delivers 15 N/mm2 shear strength on steel, fixtures in 10 minutes
▲ Approved to ASTM D5363 and MIL-R-46082B for demanding applications

Anaerobic cure between close-fitting cylindrical metal surfaces creates a high-strength, corrosion-free bond that prevents fretting and micro-movement. With 15 N/mm2 shear strength on steel, a 10-minute fixture time and a gap fill of 0.15 mm, it secures bushings, sleeves and rotors reliably from -55 to +150°C.
Product Highlights −

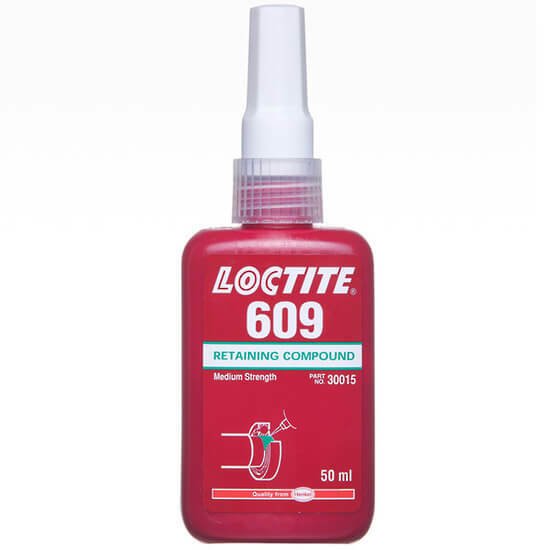

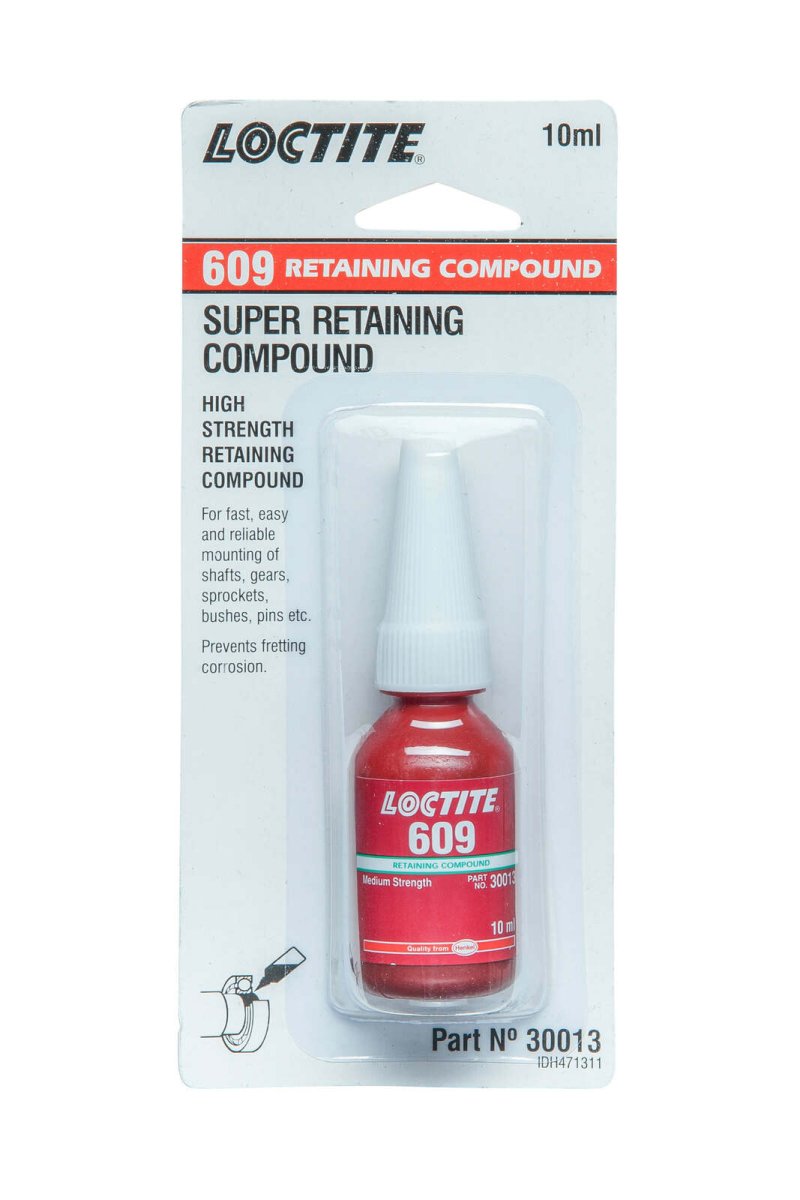

LOCTITE 609 is a green, high-strength, anaerobic-curing retaining compound for locking bushings and sleeves in housings on shafts, augmenting press fits, or bonding any close-fitting cylindrical parts. Cures in the absence of air between close-fitting metal surfaces, providing a high-strength, corrosion-free bond. Shear strength, steel: 15.0 N/mm2 (2300 psi). Fixture time: 10 min. Gap fill: 0.15 mm. Viscosity: 120 mPa·s. Specific gravity: 1.1. Operating temperature: -55 to +150°C. Approvals: ASTM D5363, MIL-R-46082B (for existing designs).

  • High shear strength: 15 N/mm2 on steel, for reliable cylindrical part retention.
  • Gap fill 0.15 mm, 10-minute fixture, -55 to +150°C service range.
  • ASTM D5363 and MIL-R-46082B qualified retaining compound.

Loctite 609 is suited to securing bushings, rotors and sleeves in housings and on shafts where a corrosion-resistant, high-shear bond is needed. Its low viscosity allows easy application to cylindrical surfaces and achieves reliable retaining compound performance across a broad temperature range.

Resources

File icon
Technical Data Sheet
Payment & Security
  • Apple Pay
  • Google Pay
  • American Express
  • Mastercard
  • Visa
  • PayPal
  • Union Pay

Secure Checkout. We do not store credit card details

Available Options:
  • 10mlmm retaining compound
    Model Number: 609-10ML-LOC
  • 50mlmm retaining compound
    Model Number: 609-50ML-LOC
