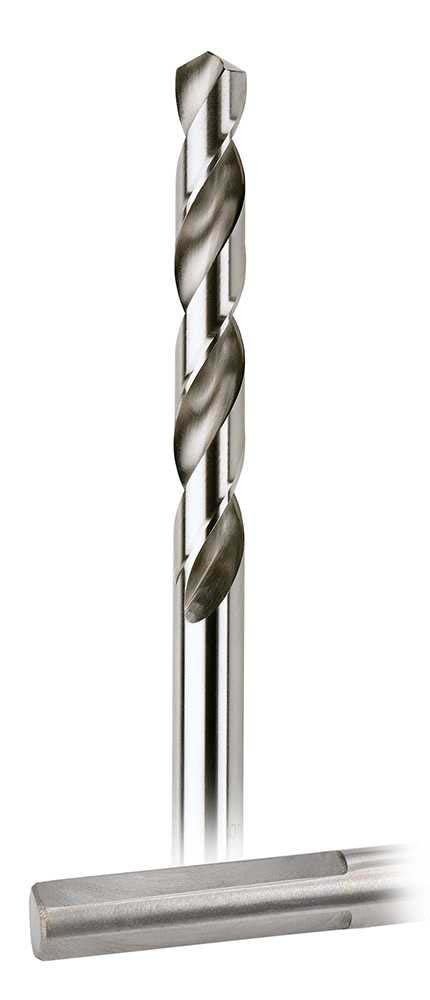

Morris 24.5mm x 1200mm Extra Long HSS Twist Drill

Morris extra long twist drills are 1200mm long, so you can drill a long way in one pass. They are general purpose HSS drills for hand held and machine drilling, popular with tradesmen and engineering professionals. HSS is high speed steel, the usual steel for metal drills. They cut low and high carbon steel, non-ferrous metals, aluminium, soft woods, hardwoods, plywood, chipboard, plastics, composites and plasterboard. There are 34 sizes from 10mm to 30mm, and each product is one drill.

The shank grows with the drill: 10mm on the 10 to 11.5mm sizes, 12mm on the 12 to 20mm sizes and 16mm on the 20.5 to 30mm sizes. Every shank has 3 flats for a non-slip grip, so check that your chuck opens wide enough. Points differ by size. The 10 to 13mm drills have a 118° split point with a bright, as-ground finish, which is self centering and suits general work and non-ferrous metals. The 13.5 to 26mm drills have a 118° notched point and 30° helix with a black steam-tempered finish, which starts faster and wanders less.

Where this product is used

• Cable installers drilling long holes through wall cavities
• Tradespeople drilling deep through timber framing and beams
• Engineering and maintenance drilling in steel and aluminium where a standard drill is too short
• Drilling across a door for power wires to electric locks (10mm size, with the Morris mortise jig)

Features

• 1200mm overall length for long, deep holes
• 34 sizes from 10mm to 30mm, each sold as one drill
• HSS drills for hand held and machine drilling
• Cuts steel, aluminium, non-ferrous metals, timber, plywood, plastics and composites
• Shank grows with the drill, 10mm, 12mm or 16mm, all with 3 flats for a non-slip grip
• 118° split point on the 10 to 13mm sizes, self centering with less end thrust
• 118° notched point and 30° helix on the 13.5 to 26mm sizes, faster starting and less wander
• Black steam-tempered finish on the 13.5 to 26mm sizes, with shank and cutting edges ground bright
• Re-sharpens on a bench grinder

Key specifications

Supplied with

• One extra long HSS twist drill (size as selected)

Choosing the right option
