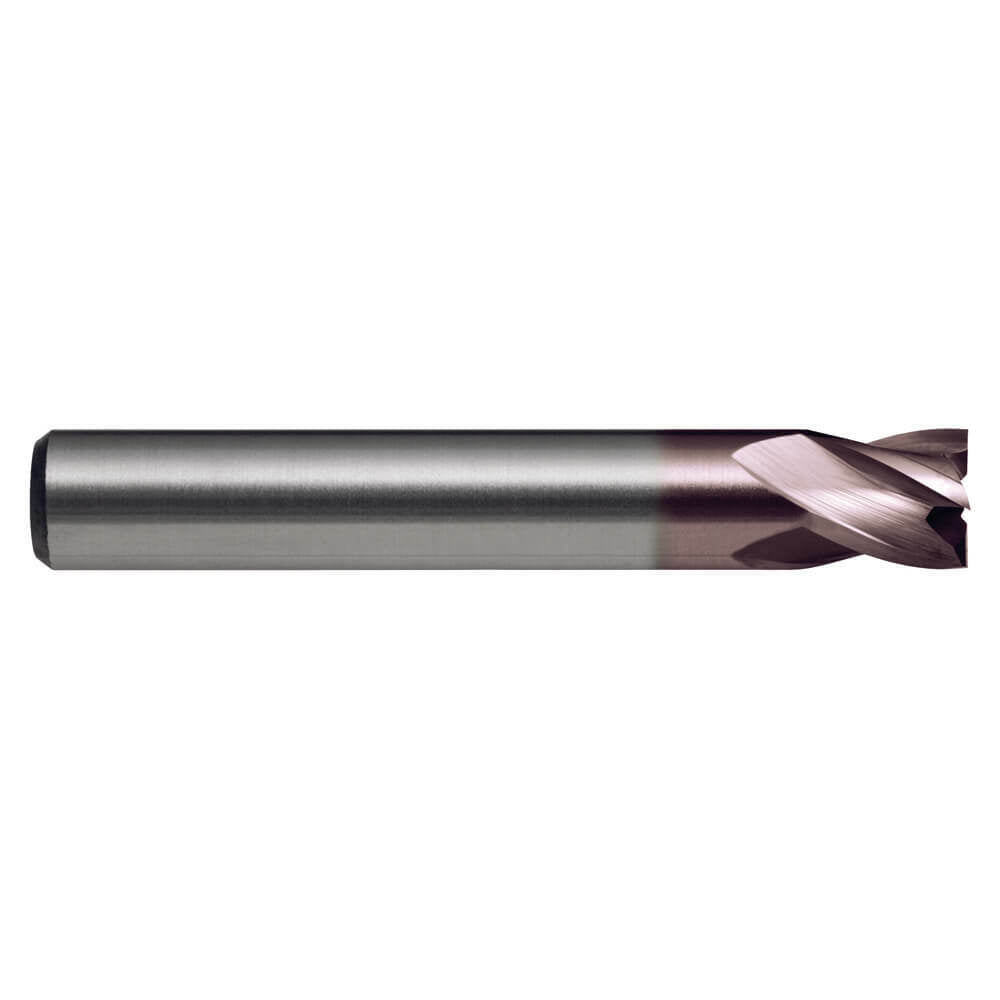

Sutton E5270300 3mm 4 Flute Short Endmill - Solid Carbide VHM AlCrN

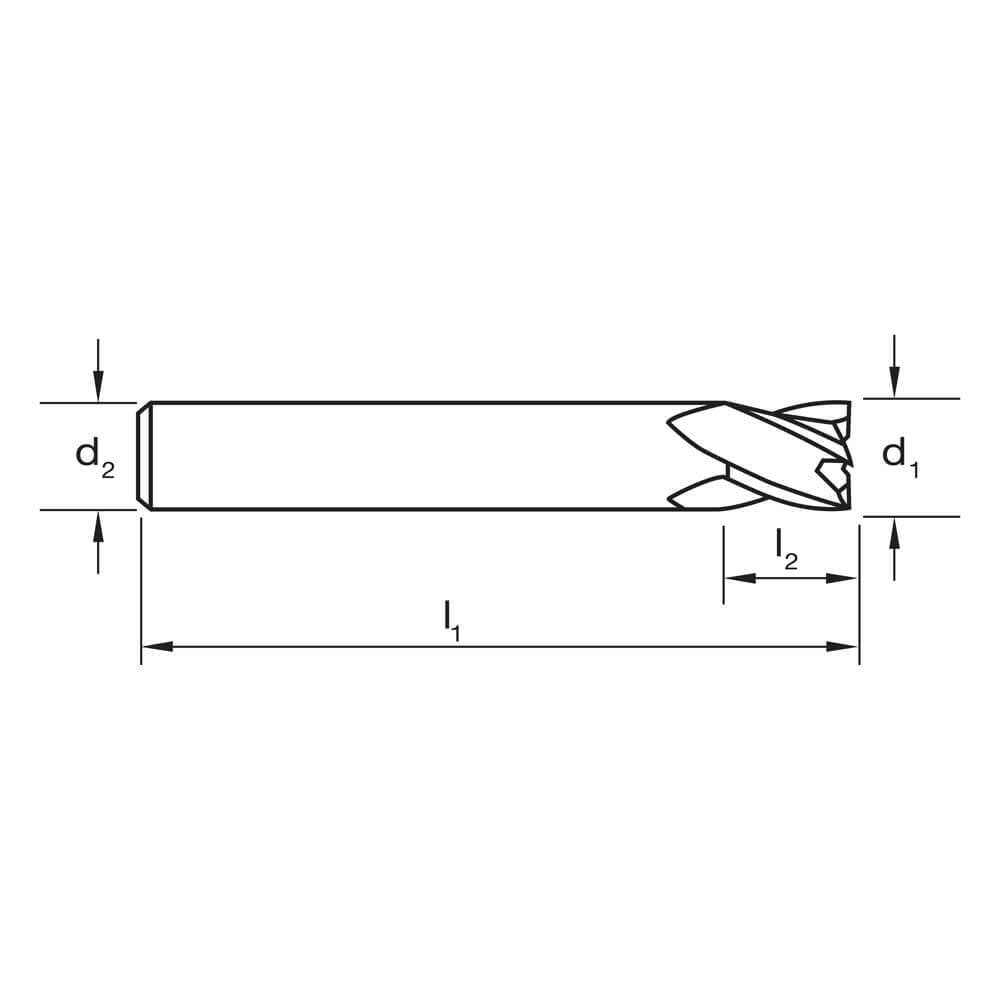

The Sutton E527 (E527 0300) is a 4 flute R30 N short (stub) endmill: solid carbide (VHM) with an AlCrN finish, 3 mm diameter, 50 mm overall length, 5 mm flute length and a 6 mm shank (DIN 6535 HA plain shank). For precision finish milling applications.

The 4 flute, R30 helix endmill has a 12° rake angle. It is made from solid carbide (VHM) with an AlCrN finish and a DIN 6535 HA plain shank with an h6 shank tolerance. Suitable for materials up to 1600 N/mm².

Where this product is used

• Precision finish milling in materials up to 1600 N/mm².
• Short series (DIN 6527K).
• Applications include DIY, trade, industrial, metalworking, machine shop and MRO work.

Design features

• For precision finish milling applications.
• Suitable for materials up to 1600 N/mm².

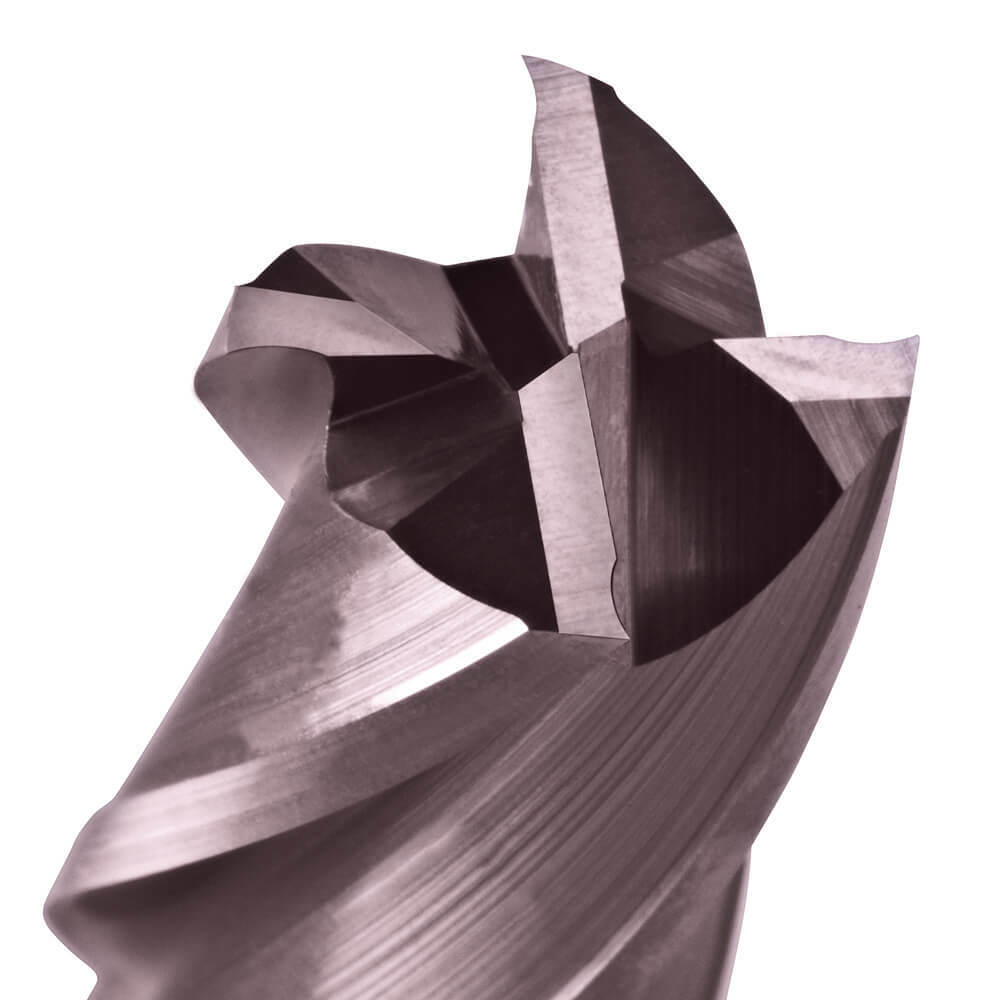

• 4 flutes, R30 helix, 12° rake angle.
• Solid carbide (VHM) with an AlCrN finish.
• DIN 6535 HA plain shank (h6 tolerance).
• 50 mm overall length, 5 mm flute length.

Using the endmill

• Hold the endmill in a milling chuck, collet or shrink-fit holder that grips the plain shank accurately and runs true.
• Use the recommended cutting data for the material and keep the tool clamped as short as the job allows.
• Carbide is brittle: avoid shock loads and keep the workpiece clamped rigidly.

Key specifications
