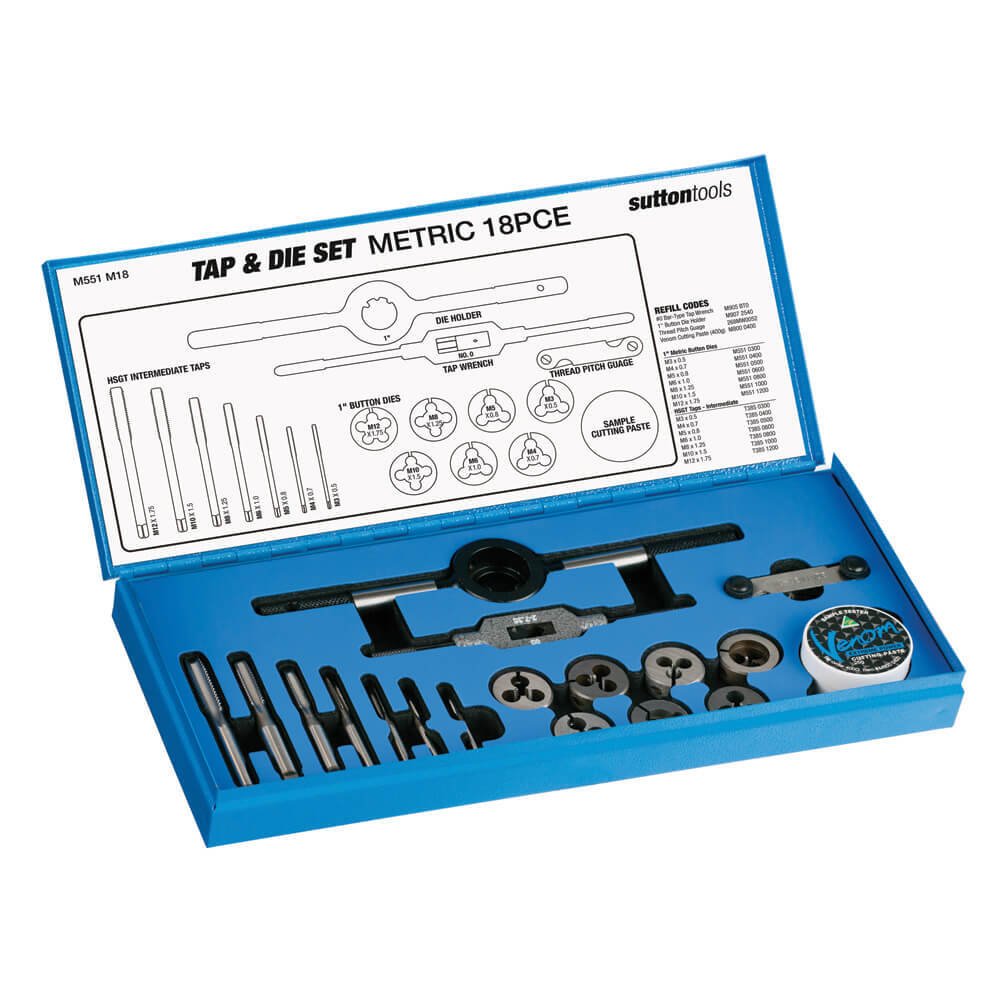

Sutton M551M18 17 Piece Metric Tap and Die Set - Button Dies - HSS

The Sutton M551M18 is a 17 piece metric (ISO coarse) tap and die set. It contains 7 intermediate taps, 7 button dies, a #1.5 bar type tap wrench and a 1 inch button die holder, plus a bonus thread pitch gauge. The taps cut internal threads and the button dies cut or clean up external threads on studs and bolts.

The button dies are high speed steel (HSS), designed for longer tool life and more accurate threads than carbon dies. They suit cleaning up existing threads in tough applications. The solid round die fits an adjustable guide or plain die stock handle.

Intermediate taps help align and start the tap into an untapped hole.

Where this set is used

• Cutting and cleaning up internal and external metric (ISO coarse) threads in repair, maintenance and workshop jobs
• Re-threading damaged bolts, studs and tapped holes without having to hunt for the right size
• Keeping the common metric (ISO coarse) sizes in one case in the workshop, store or service vehicle

Design features

• 17 piece set: 7 intermediate taps, 7 button dies, a #1.5 bar type tap wrench and a 1 inch button die holder, plus a bonus thread pitch gauge
• Covers ISO metric M3 x 0.5 to M12 x 1.75
• HSS button dies: solid round dies for cutting external threads on studs
• Intermediate taps help align and start the tap in an untapped hole

What is in the set

Sizes

Tap wrench sizes are the bar type tap wrench numbers in the Sutton range; each covers the thread range shown in the table above.

Key specifications

Related Sutton tap and die sets

Compare other threading sets: M500M16 16 piece Metric tap and die set, M500M12 12 piece Metric tap and die set, M500M26 26 piece Metric tap and die set.
