Sutton T3401400 M14 x 2 Spiral Flute Tap | AIMS Industrial

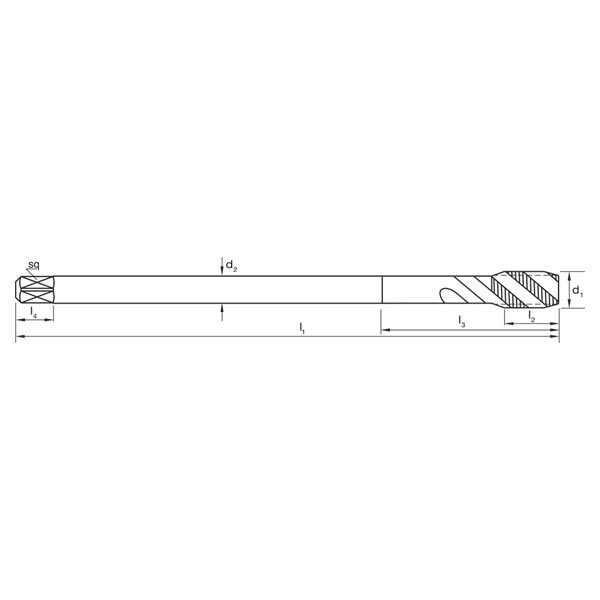

Dimensions

• d1: M10
• d2 (mm): 7
• l1 (mm): 200
• l2 (mm): 15
• l3 (mm): 100
• l4 (mm): 8
• Square Size (mm): 5.5
• z: 3
• Drill Size (mm): 8.5 (drill)
• Pitch (mm): 1.5 (pitch)

Features

• For long reach applications
• Suitable for materials up to 1000N/mm2
• Depths up to 2.5 x d1
• d2 and sq in accordance to DIN376

Specifications

• Designation: N (for normal general purpose type materials)
• Material: Premium Grade High Speed Steel (HSSE-V3)
• Finish: Bright
• Max Cut Depth: 2.5xD
• Shank Form: Reduced Shank (with square drive)
• Helix Angle: R40
• X: als
• Type: Spiral Flute
• Standard: Sutton
• Thread Form: ISO Metric Coarse (M)
• Nut Tolerance: ISO 2 / 6H
• Lead: Form C / 3 x P

Applications

• Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
• Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
• Steel - Low alloy & cast < 5% of alloying elements: Annealed
• Aluminum & Magnesium, wrought alloy - Non Heat Treatable
• Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
