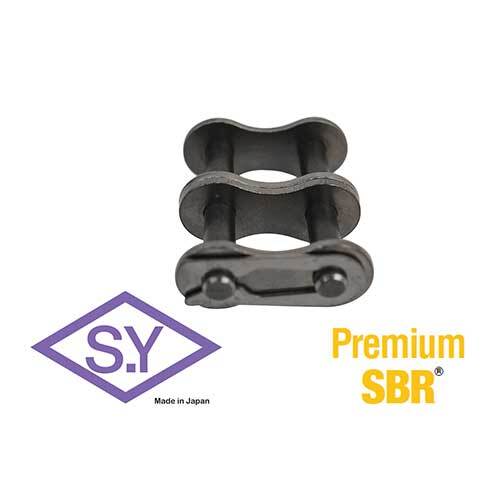

SY BS Roller Chain Stainless Connecting Link Duplex Strand
- Sugiyama Chain Manufacturing Co. is the only company in the world that supplies all of its standard chains with solid bushings and solid rollers.
- This gives SY Chain a longer service life & a higher allowable maximum load.
All About Stainless Steel Chain
- SS series stainless steel roller chains provide excellent corrosion protection against low or high temperature,acis alkali, moisture, scale, oil, and magnetism.
- SS sereis stainless steel roller chains are manufactured in accordance with dimensions ANSI standards.
- "SS" type roller chains are used in highly corrosive or extreme temperature environments.
- All component parts of Sugiyama stainless steel roller chains are made of 304 stainless steel to achieve the utmost corrosion and temperature resistance.
- Chain is rollerless. Dimension shown is bushing diameter.
- Connecting links are "cotter" style for all sizes above 100 SS.
- Stainless steel chains are not lubricated prior to delivery.
- It is recommended to lubricate stainless steel chains before use except when the chain is exposed to water.
- Stainless steel chains may suffer articulation problems in early stages if they are used without lubrication.
- Takes account of a 35% reduction of fatigue strength when a single pitch offset link is used.
Introduction of SY New High Power New SSS Series Products
- SSS series stainless steel roller chains with solid rollers.
- Anti-magnetic of solid roller has superior permeability than the common curled roller.
- High Power New SSS Chain use a specially treated pin and roller.
- Extremely long life is engaged by this surface treatment.
- SSS series chain life is more than 2 times longer than that of normal SS series Chain.
- 50% Higher Allowable Loads
