21-T5-12PB T5 Pilot Bore Timing Pulley, 12 Teeth, 10 mm Belt

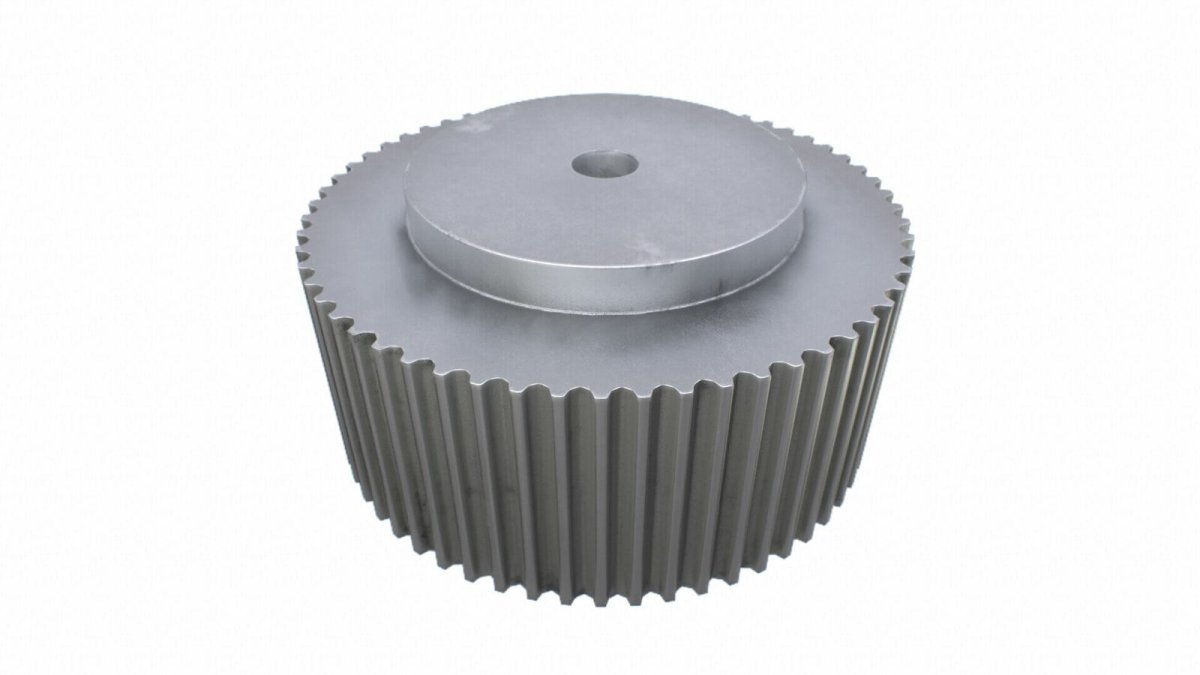

T5 pilot bore timing pulleys in aluminium for T5 timing belts, which have a 5 mm pitch. The range covers 66 models from 10 to 60 teeth, for 10, 16 and 25 mm wide belts.

A pilot bore pulley is supplied with a starter hole, so you can have it bored and keywayed to suit your shaft. The catalogue lists the largest finished bore for every model, with pitch diameter, outside diameter, flange diameter, hub diameter, face width and overall width.

Models with 10, 12 and 14 teeth have no pilot bore listed in the catalogue, and the table shows a dash for them.

Where this product is used

• Synchronous drives where the driven shaft must keep in step with the driver
• Indexing and positioning drives
• Conveyor and material handling drives
• Packaging and automation machinery
• Replacement pulleys on existing T5 belt drives

Features

• Aluminium pulley with a pilot bore, ready to be bored to your shaft size
• T5 tooth profile with a 5 mm pitch, 10 to 60 teeth
• Largest finished bore listed for every model: 5 to 35 mm

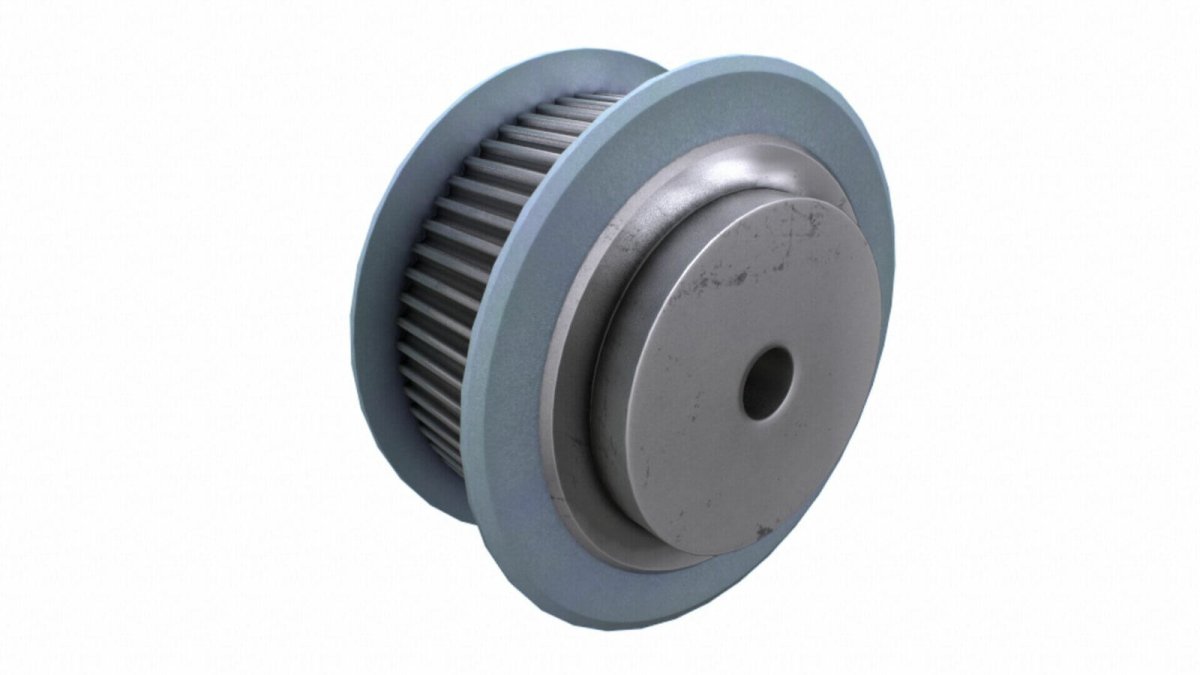

• Flanged pulleys, with the flange diameter listed where the catalogue gives one
• Pitch diameter, outside diameter, hub diameter, face width and overall width listed for every model

Key specifications

Sizes available

Selecting and fitting

Choose the pulley by belt profile (T5), belt width and number of teeth. Divide the driven teeth by the driver teeth to find the speed ratio. Both pulleys on a drive must have the same tooth pitch as the belt.

The last number in each model code is the number of teeth, and the number at the start is the overall width of the pulley in millimetres. Related pilot bore pulleys: T10 Pilot Bore Timing Pulley, Aluminium, 12 to 60 Teeth, 16 to 50 mm Belt Width, 5M HTD Pilot Bore Timing Pulley, Aluminium, 44 to 72 Teeth, 9 to 25 mm Belt Width and 5M HTD Pilot Bore Timing Pulley, Steel, 12 to 40 Teeth, 9 to 25 mm Belt Width.

Pilot bore pulleys are supplied with a starter hole. Have the pulley bored and keywayed to suit your shaft, keeping the bore concentric with the pulley, and add a set screw over the keyway. Do not bore beyond the maximum finished bore listed for the model.

Fit the belt by moving the shafts closer together, not by levering it over the flanges or teeth. Set the belt tension to the belt maker's recommendation and check it again after a few hours of running.

Dimensions are as listed for each model and are for reference. Contact AIMS to confirm a measurement if it is critical to your application.
