Seco Turning Insert C Shape Code 3.97 x | AIMS Industrial

***Illustrations shown may vary from actual product***

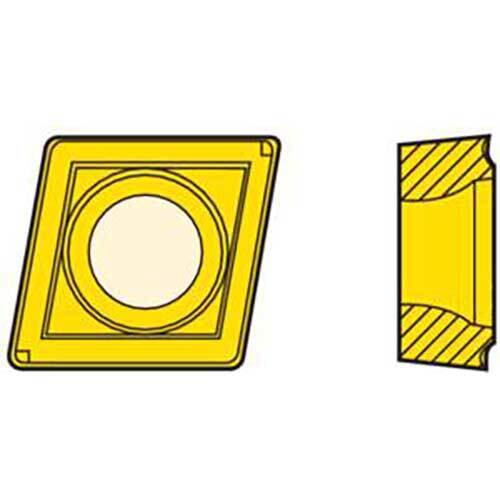

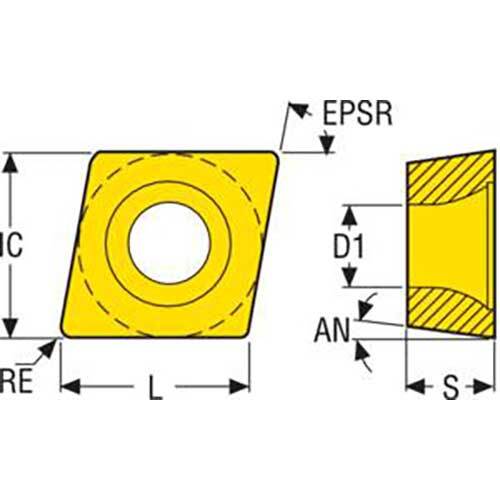

Turning Insert CCMT Insert Style - M3 7° Grade TM1501

• C shape code.
• T Insert Type.
• 7° insert side clearance angles.

TM1501 Insert Grade

• Duratomic® grade.
• The highly resistant and optimized grade for many continuous cuts in stainless steel turning applications.
• Complements in mixes of steel and stainless steel turning.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

M3 Chipbreaker Programme

• First choice for medium-rough machining and also the most versatile Seco chipbreaker.
• In most cases, it is the only chipbreaker needed. Offers the best useful life and best chip breaking in a wide range of cutting data and workpiece materials.
• Suitable for precision forged and cast workpieces (NNS or Near Net Shape workpieces) as regards both chip control and edge strength.
• Recommended machining range: f = 0,15-0,50 mm/rev, ap = 0,5-5,0 mm. (f = 0.006-0.020 in/rev, ap = 0.020-0.200 inch)

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
