***Illustrations shown may vary from actual product***

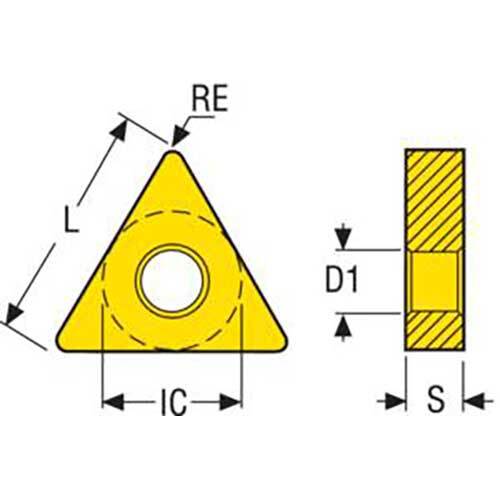

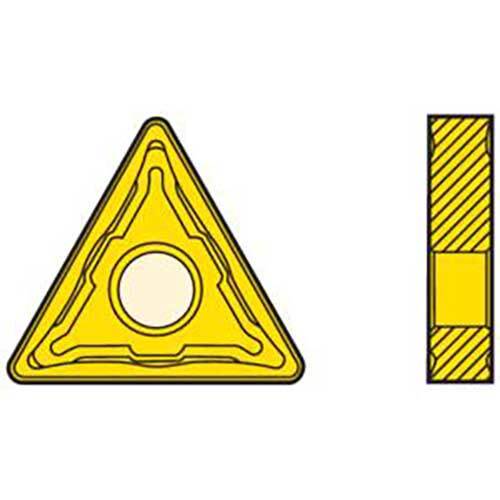

Turning Insert TNMG Insert Style - M5 Grade TP25

• T shape code
• T Insert Type.
• 7° insert side clearance angles.

TP25 Insert Grade

• The universal grade for highly versatile performance over a wide range of applications in steels, stainless steels, and cast irons.
• Trustworthy alternative at limited cutting speeds or high surface finishes requirements.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

M5 Chipbreaker Programme

• A highly reliable chip breaker for positive inserts. Intended for medium-rough and rough machining of steels, stainless steels, and cast iron.
• Combines high edge strength with comparatively low cutting forces.
• Safe action in interruptions and rough skin on parts also including boring.
• Indicative machining range: f = 0,15–0,60 mm/rev, ap = 1–5 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
