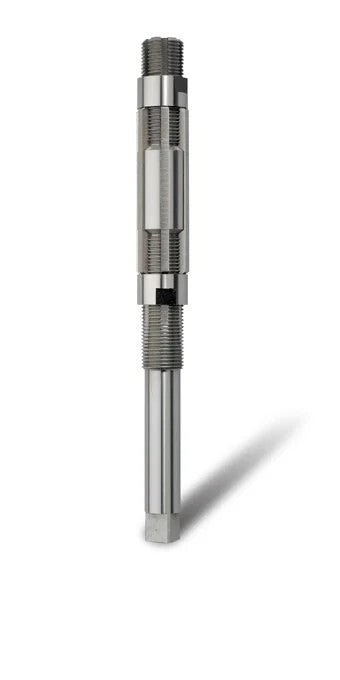

Adjustable Hand Reamers

Adjustable Hand Reamers

AIMS Industrial stocks adjustable hand reamers for finishing bored or drilled holes to precise dimensions in toolrooms, workshops and maintenance environments. With expandable blades covering a range of diameters from a single tool, our range from Maxigear, Sutton Tools and Bordo suits both metric and imperial bore finishing requirements.

Features of Adjustable Hand Reamers

• Adjustable blade range: Each reamer covers a diameter range (e.g. 11.1–12.7 mm) — one tool handles multiple close-tolerance bore sizes, reducing tooling inventory.
• Left-hand helix flutes: Opposite-hand flutes lift chips away from the cutting edge during forward rotation, preventing chip re-cutting and bore damage.
• HSS cutting blades: High-speed steel blades maintain cutting edge integrity across a wide range of materials including cast iron, steel and aluminium.
• Taper shank: Square drive end for use with a tap wrench — provides manual feed control for precise hole size creep and optimal surface finish.
• Reamer tolerances: Quality reamers hold H7 bore tolerances when correctly aligned and fed — critical for bearing, bush and pin fit applications.

Application and Usage Tips

• Bore allowance: Leave 0.1–0.3 mm of material for reaming — too much stock risks blade deflection and bell-mouthing; too little leaves insufficient material to size.
• Cutting fluid: Always use cutting oil with hand reamers in steel — dry reaming accelerates blade wear and produces a poor surface finish.
• Feed rate: Apply steady, constant downward pressure during forward rotation — never rotate backwards, as this dulls cutting edges rapidly.
• Blade adjustment: Adjust blades evenly around the periphery to maintain concentricity — uneven adjustment causes bore taper and poor finish.

Australian Business, Local Supply: As a proudly Australian business since 1988, we stock locally and work with trusted local Australian manufacturers and distributors to ensure fast, reliable supply.

Expert Support: Need help selecting the right product for your application? Contact our team or request a quote for application-specific advice.

Also see our Hand Tools and Power Tool Accessories for complementary products.
