Sutton MA 12.00-13.50mm Adjusting Nut for Adjustable Reamer
Available

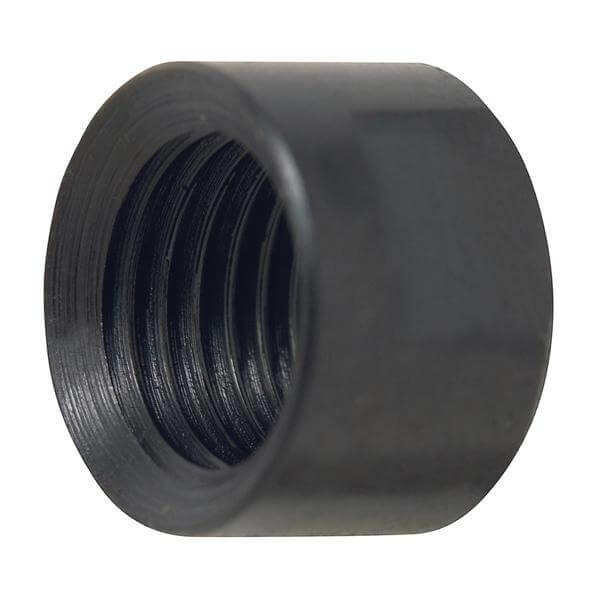

The Sutton R112 is an adjusting nut for the Sutton R109 adjustable hand reamer, supplied in TCA (Tungsten Chrome Alloy). Each nut is matched to one reamer size.
There are 15 sizes in this listing, from MA (12.00 to 13.50mm) to MO (69.75 to 85.00mm), using the same size codes and ranges as the R109 reamer. Nuts suit the larger reamer sizes only: MA to MO. The smaller R109 sizes (MA8 to MA2) have no separate nut listed.
Where this product is used
- Sutton R112 adjusting nut for the R109 adjustable hand reamer, TCA (Tungsten Chrome Alloy)
Features
- TCA (Tungsten Chrome Alloy)
- 15 sizes, MA to MO
- Bright finish
Key specifications
| Specification | Detail |
|---|---|
| Brand | Sutton |
| Type | Adjusting Nut for Adjustable Hand Reamer |
| System of measurement | Metric |
| Material | Tungsten Chrome Alloy (TCA) |
| Finish | Bright |
Choosing the right option
The options differ in reamer range, reamer size, sutton item no. and range. Each has its own part number.
The reamers themselves are under the R109 adjustable hand reamer. Related parts: R110 blade sets, R111 pilots and R112 adjusting nuts. For sets, see the R109 adjustable reamer sets.
| Option | Part number | SKU |
|---|---|---|
| 12.00 - 13.50 | R1121200 | A0012389 |
| 13.50 - 15.00 | R1121350 | A0012390 |
| 15.00 - 16.75 | R1121500 | A0012391 |
| 16.75 - 18.25 | R1121675 | A0012392 |
| 18.25 - 19.75 | R1121825 | A0012393 |
| 19.75 - 21.50 | R1121975 | A0012394 |
| 21.50 - 23.75 | R1122150 | A0012395 |
| 23.75 - 27.00 | R1122375 | A0012396 |
| 27.00 - 30.25 | R1122700 | A0012397 |
| 30.25 - 34.25 | R1123025 | A0012398 |
| 34.25 - 38.00 | R1123425 | A0012399 |
| 38.00 - 46.00 | R1123800 | A0012400 |
| 46.00 - 56.00 | R1124600 | A0012401 |
| 56.00 - 69.75 | R1125600 | A0012402 |
| 69.75 - 85.00 | R1126975 | A0012403 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Sutton R112 Adjustable Nut for Hand Reamer - Tungsten Chrome Alloy: 12.00 - 13.50
SKU: A0012389 | Model: R1121200
Sutton R1121200 R112 Adjusting Nut for MA Adjustable Hand Reamer - TCA. Reamer range 12.00 - 13.50mm, reamer size MA and sutton item no. R112 1200. TCA (Tungsten Chrome Alloy).
