Sutton R109 M2P Adjustable Reamer Set - 16 Piece
Available
These Sutton R109 adjustable reamer sets bundle sizes of the R109 adjustable hand reamer in one purchase. This listing covers the 16 piece reamers and pilots set (MA to MH) and the 18 piece reamers only set (MA8 to MK). All reamers are TCA (Tungsten Chrome Alloy) with straight flutes, for use by hand with a suitable wrench.
The 16 piece M2P set pairs each reamer from MA to MH with its pilot (8 reamers and 8 pilots). The 18 piece M6 set is reamers only and reaches furthest down the range, from MA8 (6.35 mm) to MK (38.00 mm). The sets use the same size codes and ranges as the single reamers, so you can add individual reamers, blade sets, pilots or nuts later from the R109 family.
Choosing a set
| Set | Description | Pieces | Contents | Sizes | Covers |
|---|---|---|---|---|---|

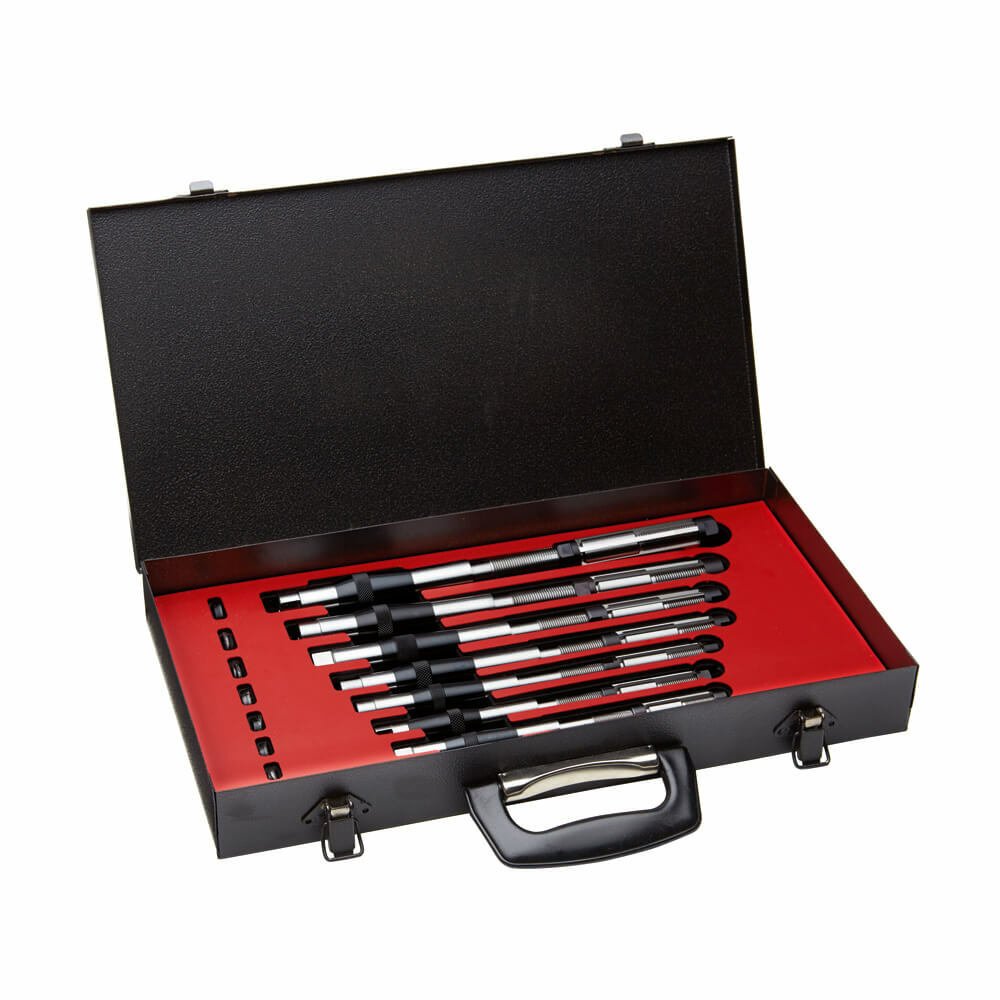

| R109 M2P | 16 Piece Reamers and Pilots (MA to MH) | 16 | Reamers and pilots | MA, MB, MC, MD, ME, MF, MG, MH | 12.00 to 27.00 mm |

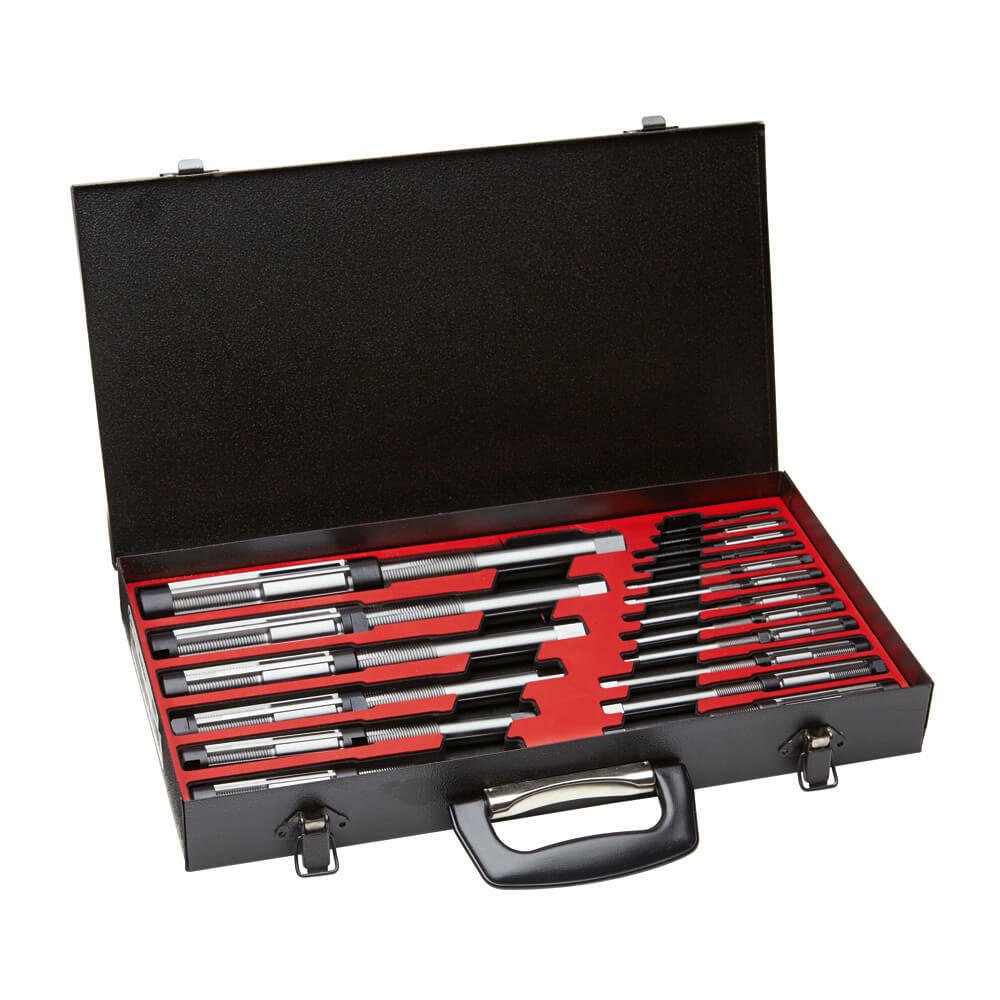

| R109 M6 | 18 Piece Reamers Only (MA8 to MK) | 18 | Reamers only | MA8, MA7, MA6, MA5, MA4, MA3, MA2, MA, MB, MC, MD, ME, MF, MG, MH, MI, MJ, MK | 6.35 to 38.00 mm |
Sizes in each set
| Size | Range (mm) | Range (inch) | R109 M2P | R109 M6 |
|---|---|---|---|---|
| MA8 | 6.35 to 7.15 | 1/4 to 9/32 | - | Yes |
| MA7 | 7.15 to 7.95 | 9/32 to 5/16 | - | Yes |
| MA6 | 7.95 to 8.70 | 5/16 to 11/32 | - | Yes |
| MA5 | 8.70 to 9.50 | 11/32 to 3/8 | - | Yes |
| MA4 | 9.50 to 10.25 | 3/8 to 13/32 | - | Yes |
| MA3 | 10.25 to 11.00 | 13/32 to 7/16 | - | Yes |
| MA2 | 11.00 to 12.00 | 7/16 to 15/32 | - | Yes |
| MA | 12.00 to 13.50 | 15/32 to 17/32 | Yes | Yes |
| MB | 13.50 to 15.00 | 17/32 to 19/32 | Yes | Yes |
| MC | 15.00 to 16.75 | 19/32 to 21/32 | Yes | Yes |
| MD | 16.75 to 18.25 | 21/32 to 23/32 | Yes | Yes |
| ME | 18.25 to 19.75 | 23/32 to 25/32 | Yes | Yes |
| MF | 19.75 to 21.50 | 25/32 to 27/32 | Yes | Yes |
| MG | 21.50 to 23.75 | 27/32 to 15/16 | Yes | Yes |
| MH | 23.75 to 27.00 | 15/16 to 1-1/16 | Yes | Yes |
| MI | 27.00 to 30.25 | 1-1/16 to 1-3/16 | - | Yes |
| MJ | 30.25 to 34.25 | 1-3/16 to 1-11/32 | - | Yes |
| MK | 34.25 to 38.00 | 1-11/32 to 1-1/2 | - | Yes |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | R109 sets |
| Material | TCA (Tungsten Chrome Alloy) |
| Finish | Bright (uncoated, polished) |
| Flute geometry | Straight |
| Use | By hand with a suitable wrench, general purpose |
| Sets in this listing | R109 M2P, R109 M6 |
Related reaming tools
Need a single size, or a spare? See the R109 adjustable hand reamers, the R110 replacement blade sets and the R112 adjusting nuts. The R111 pilots is a pilots-only set, and the AIMS Reamer Guide explains how reamers are sized and used.
See also the Reamer Sets collection. Having reaming problems? Our Cutting Tool Troubleshooting Guide covers reamers alongside drills and taps.
